CV40-BTPDX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )CV4#

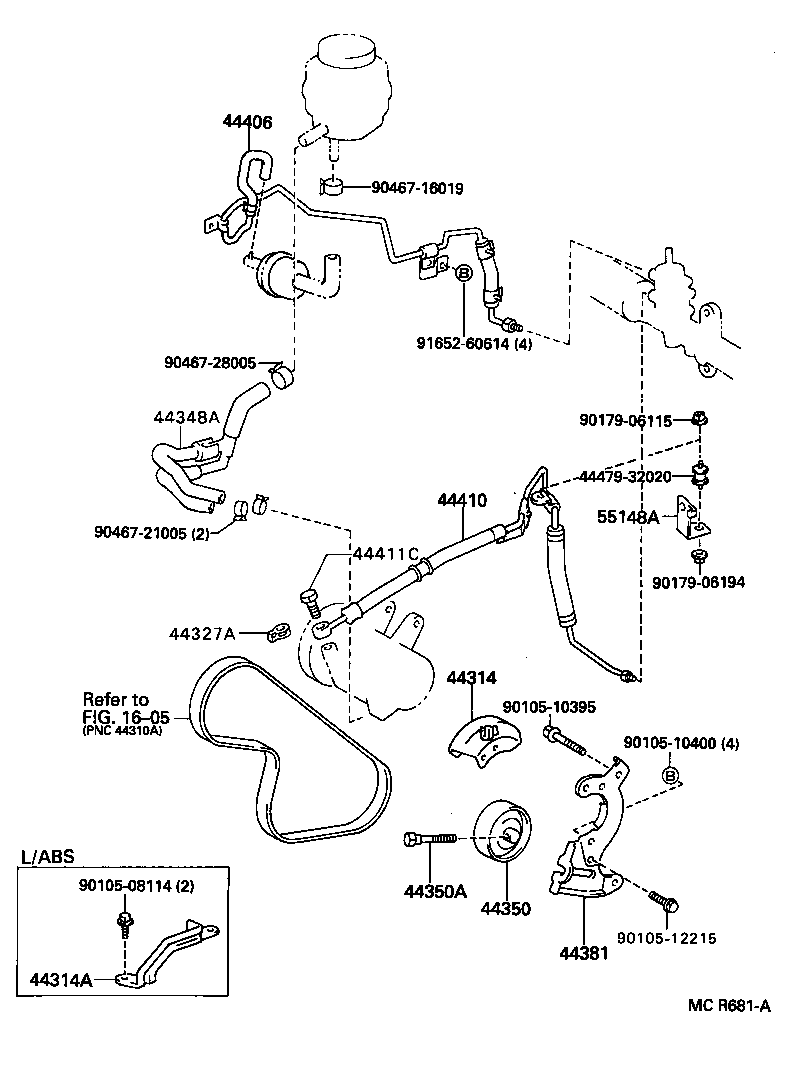

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44314 - COVER, PULLEY | ||||
| 44314-32030 |
CV4# |
1 | ||
| 44314A - COVER, PULLEY, NO.2 | ||||
| 44314-32020 |
CV4# |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
CV4#,SV4# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32241 |
CV4# |
1 | ||
| 44348-32240 |
CV4# |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-32030 |
CV4# |
1 | ||
| 44350A - BOLT(FOR POWER STEERING IDLE PULLEY) | ||||
| 90109-08245 |
CV4# |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-32030 |
CV4# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-32290 |
CV4# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-32520 |
CV4# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
CV4#,SV4# |
1 | ||
| 55148A - BRACKET, POWER STEERING TUBE, N0.2 | ||||
| 55148-32040 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 44479-32020 | ||||
| 90105-08114 | ||||
| 90105-10395 | ||||
| 90105-10400 | ||||
| 90105-12215 | ||||
| 90179-06115 | ||||
| 90179-06194 | ||||
| 90467-16019 | ||||
| 90467-21005 | ||||
| 90467-28005 | ||||
| 91652-60614 | ||||
| Linked diagrams | ||||
| 1605 | ||||
