CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

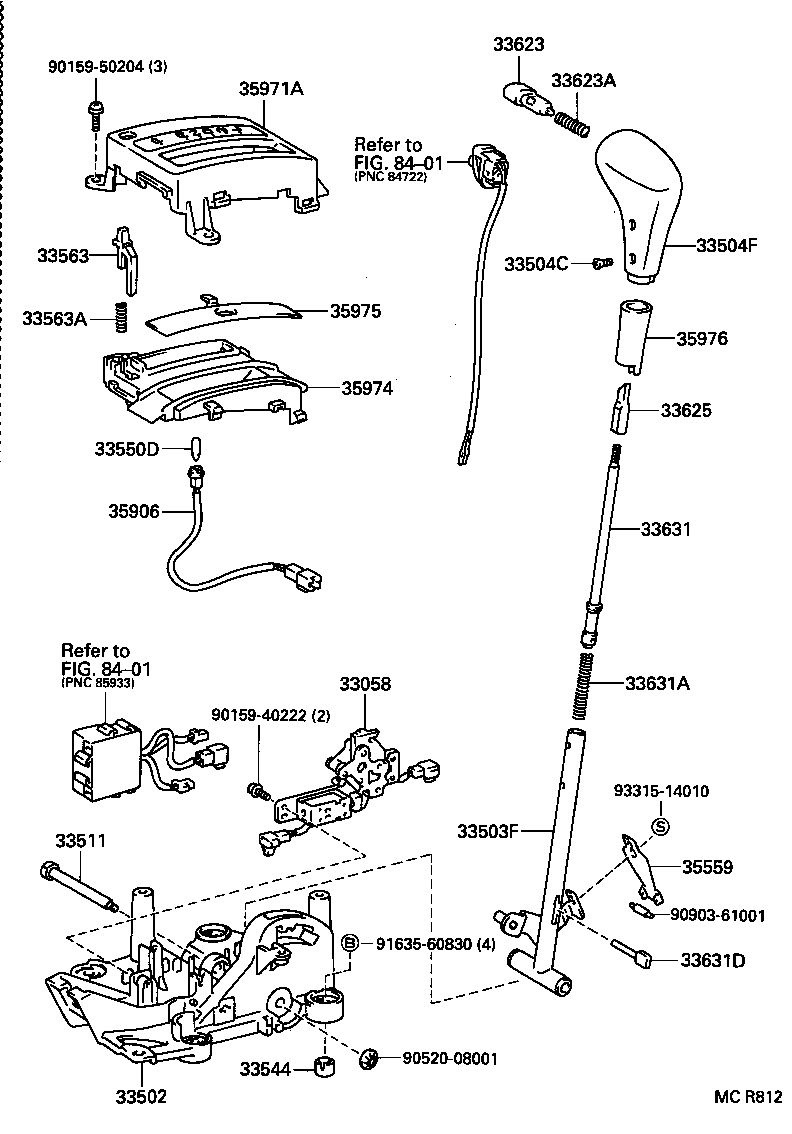

ILLUST NO. 1 OF 2(9406- )ATM

Click highlighted areas on diagram

diagram 33058 33502 33503F 33504C 33504F 33511 33544 33550D 33563 33563A 33623 33623A 33625 33631 33631A 33631D 35559 35906 35971A 35974 35975 35976 8401 8401 9015940222 9015950204 9052008001 9090361001 9163560830 9331514010
Part # Description Qty Price
33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058-32030

CV4#,SV4#..ATM

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-32090

CV4#,SV4#..ATM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-32190

CV4#,SV4#..ATM

 1
33055-32150

CV4#,SV4#..ATM

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238

CV4#,SV4#..ATM

 2
90159-40244

CV4#,SV4#..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12181B0

CV4#,SV4#..ATM

SHADOW GRAY,TRIM1#

 1
33542-12181E0

CV4#,SV4#..ATM..(ETO,LUM,VJ,VX,XJ,ZX)

OAK,TRIM4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-12100

CV4#,SV4#..ATM

 1
33511-32070

CV4#,SV4#..ATM

 1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010

CV4#,SV4#..ATM

 4
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

CV4#,SV4#..ATM

12V 1.2W ｿｹｯﾄ無し

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-32040

CV4#,SV4#..ATM

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-06063

CV4#,SV4#..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12100E0

CV4#,SV4#..ATM..(ETO,LUM,VJ,VX,XJ,ZX)

OAK,TRIM4#

 1
33623-12100B0

CV4#,SV4#..ATM

SHADOW GRAY,TRIM1#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07037

CV4#,SV4#..ATM

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-12020

CV4#,SV4#..ATM

 1
33631 - ROD, DETENT
33631-32060

CV4#,SV4#..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07074

CV4#,SV4#..ATM

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04008

CV4#,SV4#..ATM

 1
90245-04010

CV4#,SV4#..ATM

 1
35559 - SPRING, MANUAL DETENT
35559-12040

CV4#,SV4#..ATM

 1
35559-32040

CV4#,SV4#..ATM

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-32040

CV4#,SV4#..ATM

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-32100

CV4#,SV4#..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-32080

CV4#,SV4#..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-32140

CV4#,SV4#..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-32030B0

CV4#,SV4#..ATM

SHADOW GRAY,TRIM1#

 1
35976-32030E0

CV4#,SV4#..ATM..(ETO,LUM,VJ,VX,XJ,ZX)

OAK,TRIM4#

 1
Common parts
90159-40222
90159-50204
90520-08001
90903-61001
91635-60830
93315-14010
Linked diagrams
8401

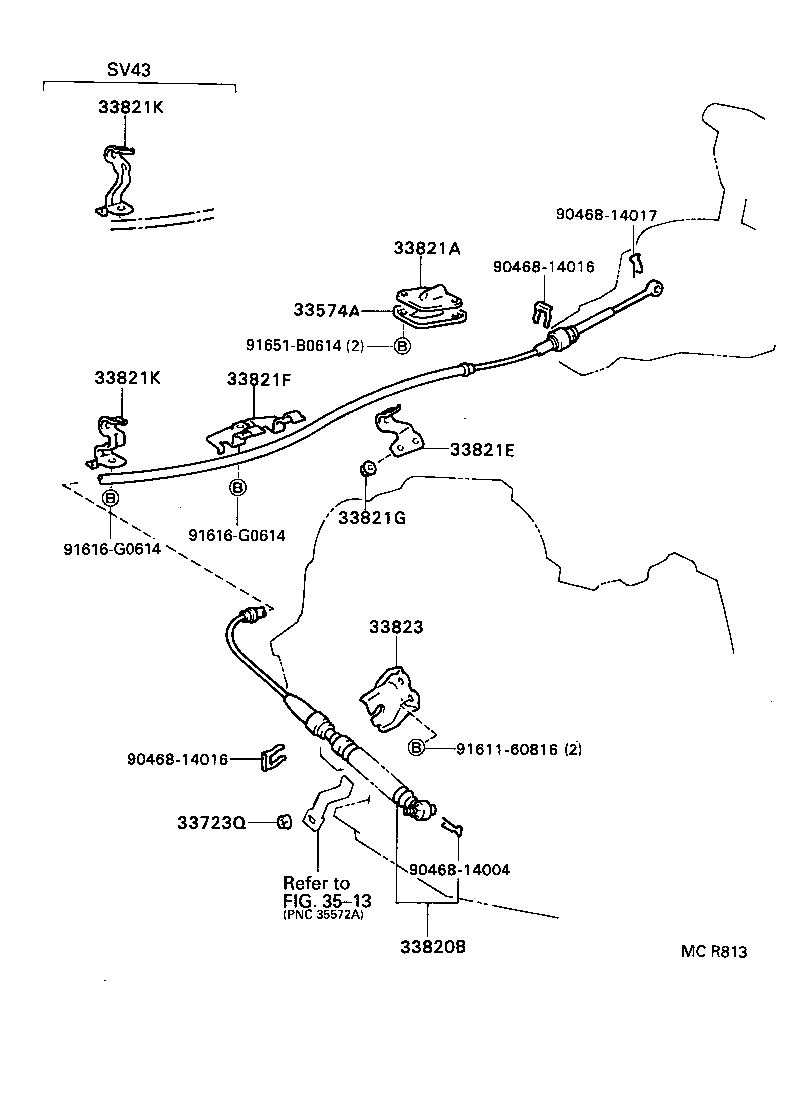

ILLUST NO. 2 OF 2(9406- )ATM

Click highlighted areas on diagram

diagram 33574A 33723Q 33820B 33821A 33821E 33821F 33821G 33821K 33821K 33823 3513 9046814004 9046814016 9046814016 9046814017 9161160816 91616G0614 91616G0614 91651B0614
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-32150

CV4#,SV4#..ATM

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054

CV4#,SV4#..ATM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-32310

CV4#,SV4#..ATM

 1
33820-32380

CV4#,SV4#..ATM

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01572

CV4#,SV4#..ATM

 1
90480-01673

CV4#,SV4#..ATM

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01682

CV4#,SV4#..ATM

 1
90949-01A73

CV4#,SV4#..ATM

 1
33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90949-01A71

CV4#,SV4#..ATM

 1
90949-01680

CV4#,SV4#..ATM

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06009

CV4#,SV4#..ATM

 2
33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE)
90949-01681

CV4#,SV40,41,42..ATM

 1
90949-01A72

CV4#,SV40,41,42..ATM

 1
33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE)
90949-01681

CV4#,SV40,41,42..ATM

 1
90949-01A72

CV4#,SV40,41,42..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-32031

CV4#,SV4#..ATM

 1
Common parts
90468-14004
90468-14016
90468-14017
91611-60816
91616-G0614
91651-B0614
Linked diagrams
3513
