CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )3CT

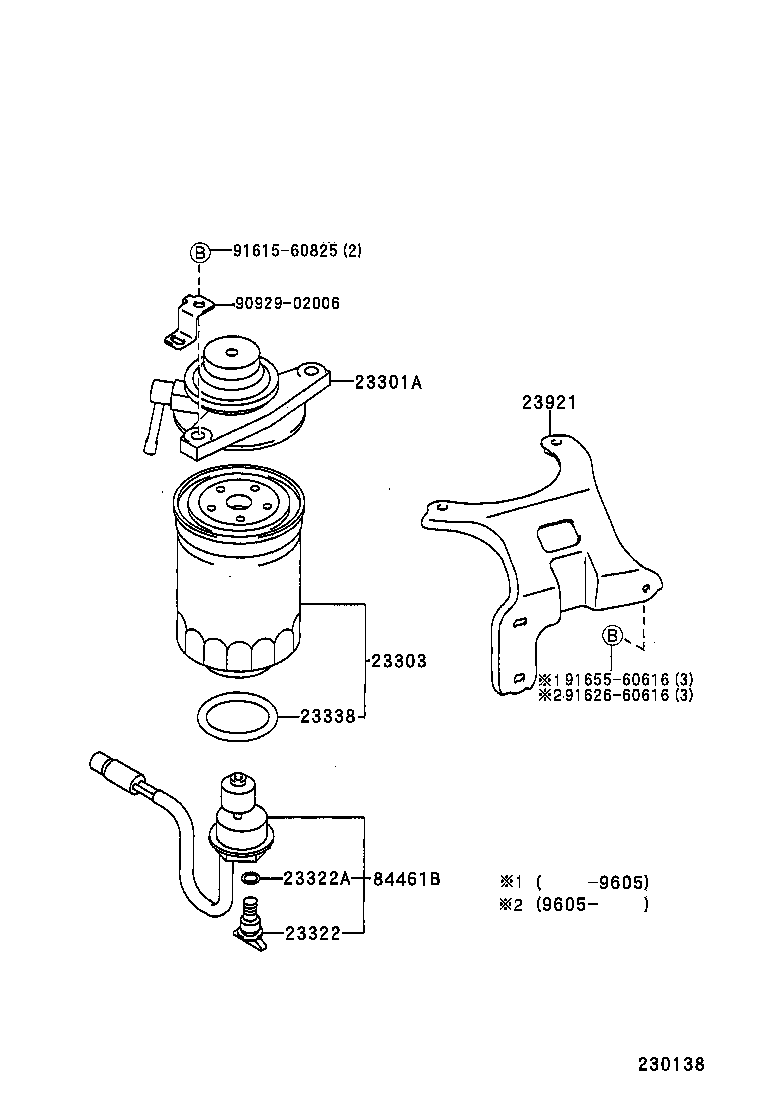

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23921 84461B 9092902006 9161560825 9162660616 9165560616
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-64140

3CT..CV4#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

3CT..CV4#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

3CT..CV4#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

3CT..CV4#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

3CT..CV4#

 1
23921 - SUPPORT, FUEL FILTER
23921-64160

3CT..CV4#

 1
84461B - SWITCH, LEVEL WARNING
84461-32030

CV4#

 1
Common parts
90929-02006
91615-60825
91626-60616
91655-60616
