CV40-BTPDX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

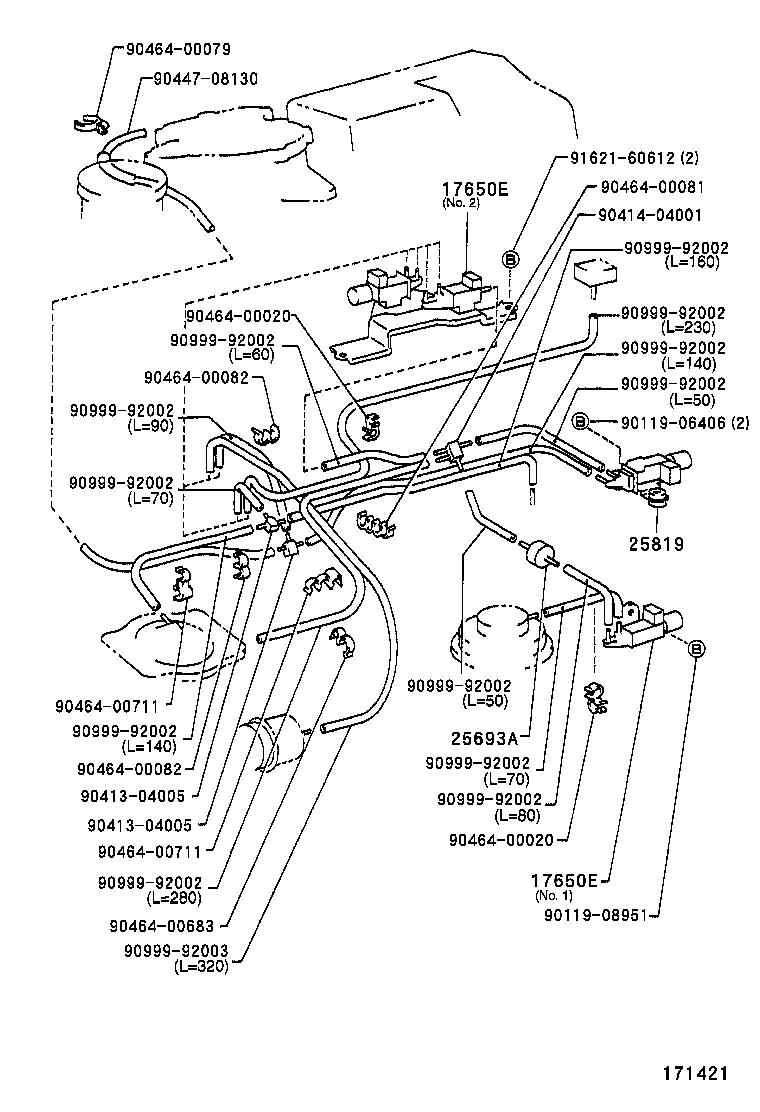

(9406- )3CT
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9605- )3CT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
3CT..CV4# NO.1 |
1 | ||
| 90910-12154 |
3CT..CV4# NO.3 |
1 | ||
| 90910-12089 |
3CT..CV4# NO.2 |
1 | ||
| 25860-64150 |
3CT..CV4# NO.1 |
1 | ||
| 25860-64160 |
3CT..CV4# NO.2 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
3CT..CV4# NO.1 |
1 | ||
| 90910-12154 |
3CT..CV4# NO.3 |
1 | ||
| 90910-12089 |
3CT..CV4# NO.2 |
1 | ||
| 25860-64150 |
3CT..CV4# NO.1 |
1 | ||
| 25860-64160 |
3CT..CV4# NO.2 |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
3CT..CV4# |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64080 |
3CT..CV4# |
1 | ||
| 25819-64070 |
3CT..CV4# |
1 | ||
| Common parts | ||||
| 90119-06406 | ||||
| 90119-08951 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90447-08130 | ||||
| 90464-00020 | ||||
| 90464-00079 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00683 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60612 | ||||

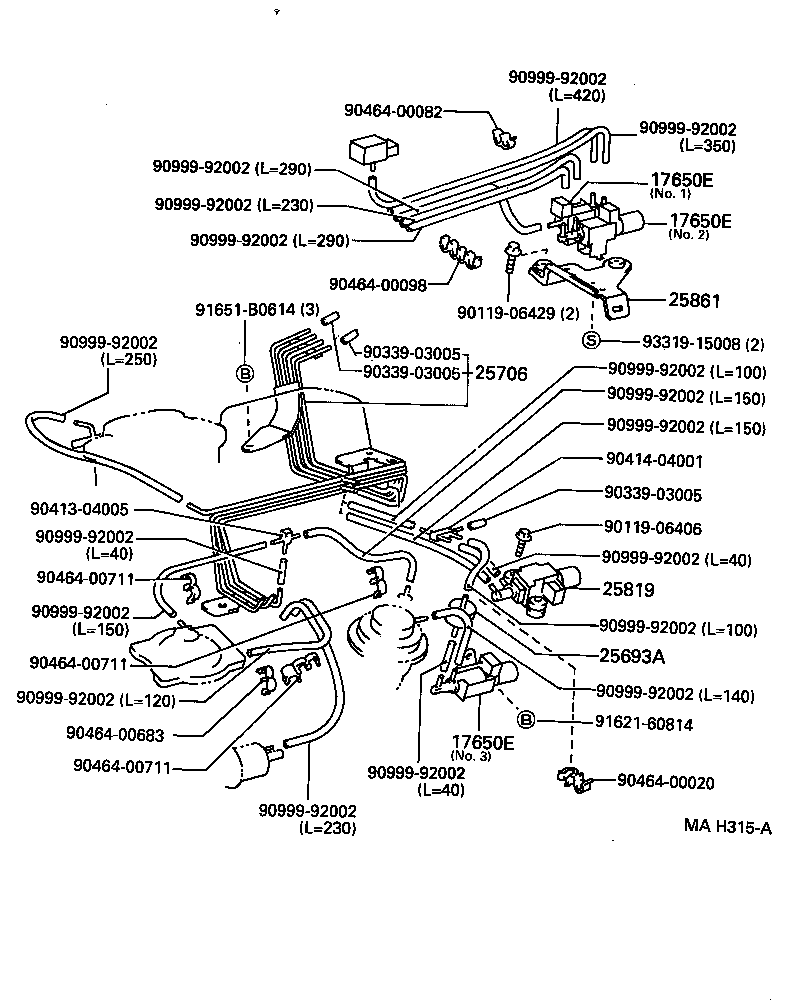

(9406-9605)3CT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
3CT..CV4# NO.1 |
1 | ||
| 90910-12154 |
3CT..CV4# NO.3 |
1 | ||
| 90910-12089 |
3CT..CV4# NO.2 |
1 | ||
| 25860-64150 |
3CT..CV4# NO.1 |
1 | ||
| 25860-64160 |
3CT..CV4# NO.2 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
3CT..CV4# NO.1 |
1 | ||
| 90910-12154 |
3CT..CV4# NO.3 |
1 | ||
| 90910-12089 |
3CT..CV4# NO.2 |
1 | ||
| 25860-64150 |
3CT..CV4# NO.1 |
1 | ||
| 25860-64160 |
3CT..CV4# NO.2 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
3CT..CV4# NO.1 |
1 | ||
| 90910-12154 |
3CT..CV4# NO.3 |
1 | ||
| 90910-12089 |
3CT..CV4# NO.2 |
1 | ||
| 25860-64150 |
3CT..CV4# NO.1 |
1 | ||
| 25860-64160 |
3CT..CV4# NO.2 |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
3CT..CV4# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-64080 |
3CT..CV4# |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64080 |
3CT..CV4# |
1 | ||
| 25819-64070 |
3CT..CV4# |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-64040 |
3CT..CV4# |
1 | ||
| Common parts | ||||
| 90119-06406 | ||||
| 90119-06429 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90464-00683 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 91621-60814 | ||||
| 91651-B0614 | ||||
| 93319-15008 | ||||
