CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )3CT

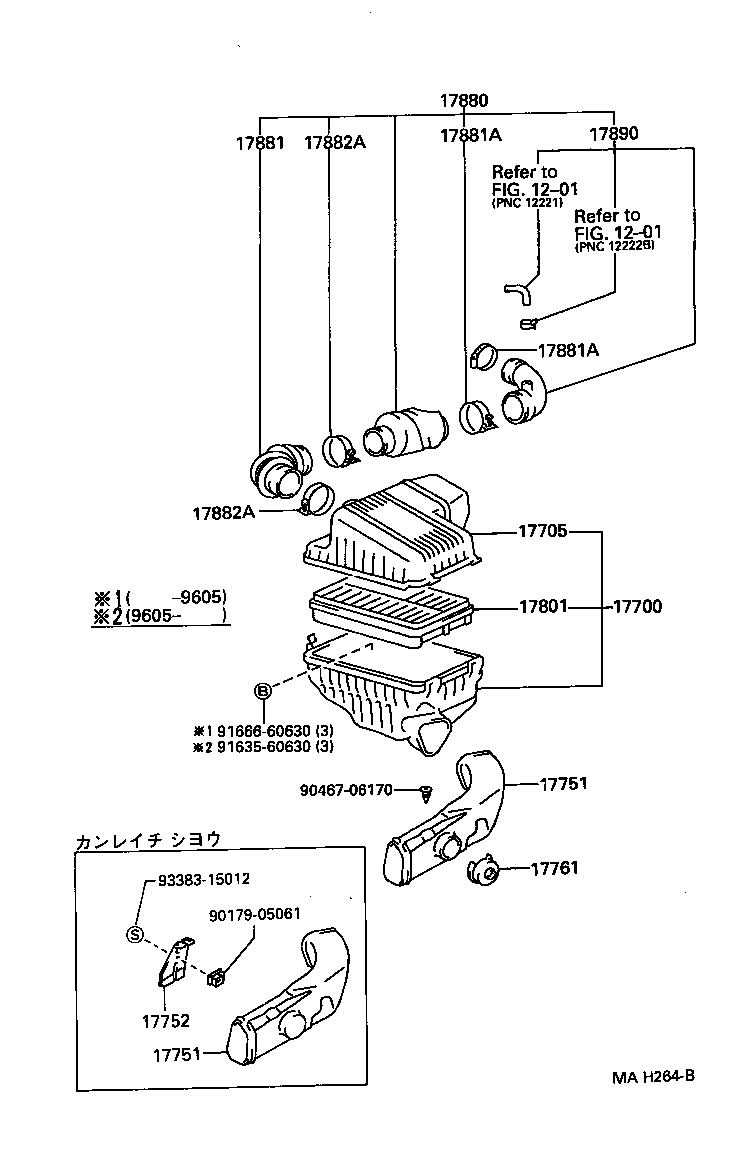

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17751 17751 17752 17761 17801 17880 17881 17881A 17881A 17882A 17882A 17890 9017905061 9046706170 9163560630 9166660630 9338315012
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64330

3CT..CV4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64220

3CT..CV4#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-64040

3CT..CV4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
17751-74050

3CT..CV4#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-64040

3CT..CV4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
17751-74050

3CT..CV4#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-64010

3CT..CV4#

 1
17761 - CAP, AIR CLEANER INLET
17761-64010

3CT..CV4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64060

3CT..CV4#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-64290

3CT..CV4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64280

3CT..CV4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-57002

3CT..CV4#

TURBOCHARGER SIDE

 1
96111-10730

3CT..CV4#

AIR CLEANER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-57002

3CT..CV4#

TURBOCHARGER SIDE

 1
96111-10730

3CT..CV4#

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

3CT..CV4#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

3CT..CV4#

 2
17890 - HOSE ASSY, AIR CLEANER, NO.2
17890-64050

3CT..CV4#

 1
Common parts
90179-05061
90467-06170
91635-60630
91666-60630
93383-15012
Linked diagrams
1201
