CV40-BTPDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )3CT..CV40

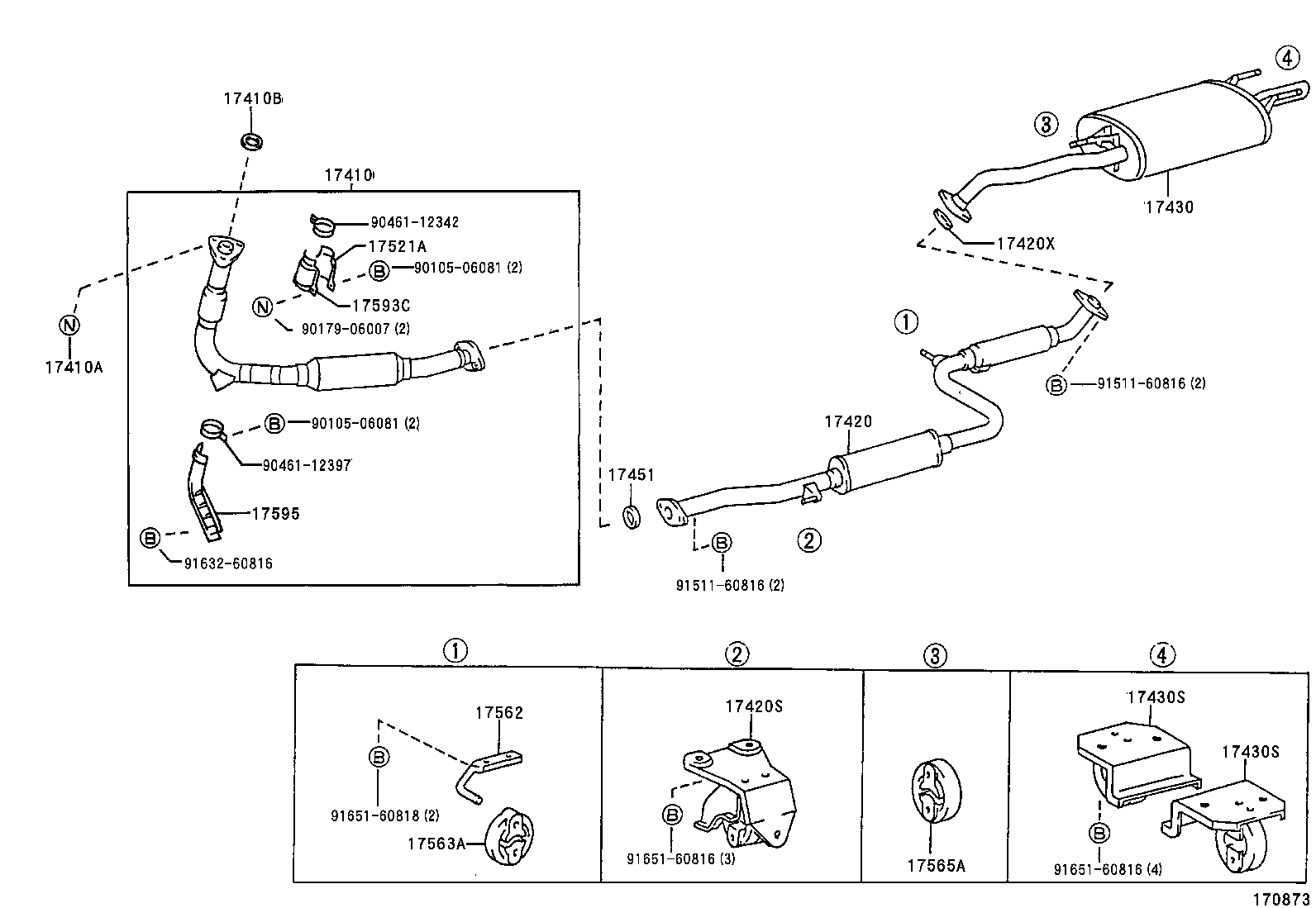

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420S 17420X 17430 17430S 17430S 17451 17521A 17562 17563A 17565A 17593C 17595 9010506081 9010506081 9017906007 9046112342 9046112397 9151160816 9151160816 9163260816 9165160816 9165160816 9165160818
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64640

3CT..CV40

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3CT,3SFE,4SFE..CV4#,SV4#

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

3CT,3SFE..CV4#,SV43

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64240

3CT..CV40

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-74050

3CT,4SFE..CV40,SV40

 1
17507-74050

3CT,3SFE,4SFE..CV40,SV40,41,42

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

3CT,3SFE..CV4#,SV41,42,43

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A050

3CT..CV40

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

3CT,3SFE,4SFE..CV4#,SV4#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

3CT,3SFE,4SFE..CV4#,SV4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06045

3CT,3SFE..CV40,SV43

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64080

3CT..CV40

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-64210

3CT..CV40

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-11100

3CT..CV40

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46010

3CT,3SFE,4SFE..CV4#,SV4#

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64070

3CT..CV40

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17595-64040

3CT..CV40

 1
Common parts
90105-06081
90179-06007
90461-12342
90461-12397
91511-60816
91632-60816
91651-60816
91651-60818
