CV40-BTPDX (1994)
Toyota Camry/Vista

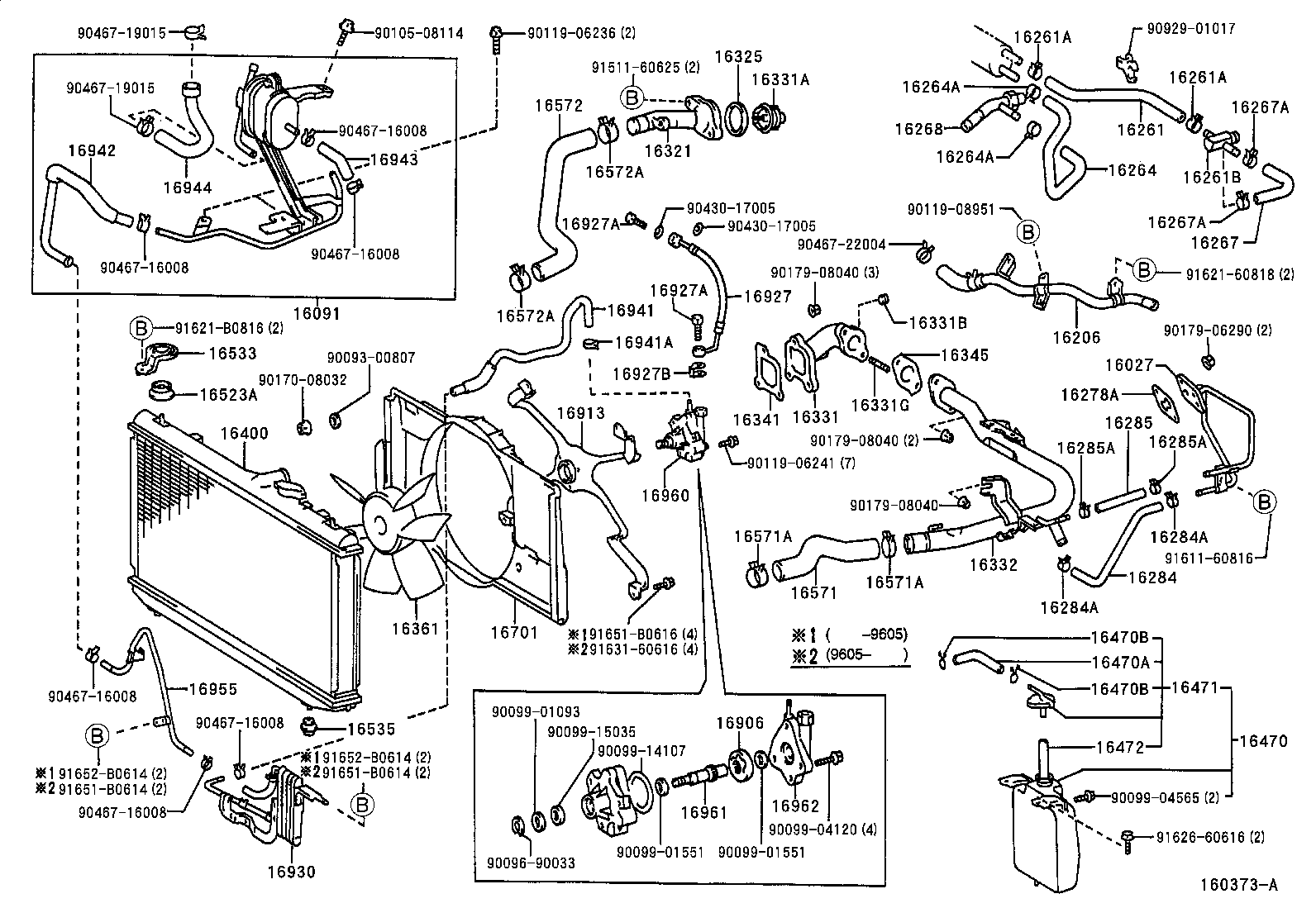

ILLUST NO. 1 OF 2(9406- )3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-64060 |
3CT..CV4# |
1 | ||
| 16091 - FILTER SUB-ASSY, HYDRAULIC MOTER OIL | ||||
| 16091-64020 |
3CT..CV4# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64040 |
3CT..CV4# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64110 |
3CT..CV4# |
1 | ||
| 16261-64060 |
3CT..CV4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3CT..CV4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3CT..CV4# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
3CT..CV4# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64090 |
3CT..CV4# |
1 | ||
| 16264-64110 |
3CT..CV4# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3CT..CV4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3CT..CV4# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-64010 |
3CT..CV4# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
3CT..CV4# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
3CT..CV4# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
3CT..CV4# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
3CT..CV4# |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 99556-10300 |
3CT..CV4# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
3CT..CV4# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
3CT..CV4# |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 99556-10200 |
3CT..CV4# 長さ=200 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
3CT..CV4# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
3CT..CV4# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-64050 |
3CT..CV4# |
1 | ||
| 16321-64020 |
3CT..CV4# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CT..CV4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64030 |
3CT..CV4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CT..CV4# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53030 |
3CT..CV4# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
3CT..CV4# |
2 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-64042 |
3CT..CV4# |
1 | ||
| 16306-64050 |
3CT..CV4# |
1 | ||
| 16306-64041 |
3CT..CV4# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
3CT..CV4# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64041 |
3CT..CV4# |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
3CT..CV4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A050 |
3CT..CV40..ATM |
1 | ||
| 16400-6A100 |
3CT..CV40..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64210 |
3CT..CV4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-64210 |
3CT..CV4# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CT..CV4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3CT..CV4# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-64100 |
3CT..CV4# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
3CT..CV4# *H,L=215 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
3CT..CV4# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74280 |
3CT..CV4# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64070 |
3CT..CV4# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64240 |
3CT..CV4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3CT..CV4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3CT..CV4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64260 |
3CT..CV4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3CT..CV4# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3CT..CV4# WATER TNLET SIDE |
1 | ||
| 90467-37002 |
3CT..CV4# WATER INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3CT..CV4# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3CT..CV4# WATER TNLET SIDE |
1 | ||
| 90467-37002 |
3CT..CV4# WATER INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-64030 |
3CT..CV4# |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-50010 |
3CT..CV4# ﾏｰｸ 1 |
1 | ||
| 16906-50030 |
3CT..CV4# ﾏｰｸ 3 |
1 | ||
| 16906-50020 |
3CT..CV4# ﾏｰｸ 2 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-64011 |
3CT..CV4# |
1 | ||
| 16913-64010 |
3CT..CV4# |
1 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-64020 |
3CT..CV4# |
1 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
3CT..CV4# NO.1 |
1 | ||
| 90401-17003 |
3CT..CV4# NO.2 |
1 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
3CT..CV4# NO.1 |
1 | ||
| 90401-17003 |
3CT..CV4# NO.2 |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-12010 |
3CT..CV4# |
1 | ||
| 16930 - COOLER ASSY, HYDRAULIC MOTOR OIL | ||||
| 16930-64010 |
3CT..CV4# |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-64030 |
3CT..CV4# |
1 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16008 |
3CT..CV4# |
1 | ||
| 16942 - HOSE, HYDRAULIC MOTOR RETURN, NO.2 | ||||
| 16942-64020 |
3CT..CV4# |
1 | ||
| 16943 - HOSE, HYDRAULIC MOTOR RETURN, NO.3 | ||||
| 44412-32080 |
3CT..CV4# |
1 | ||
| 16944 - HOSE, HYDRALIC MOTER RETURN, NO.4 | ||||
| 16944-64010 |
3CT..CV4# |
1 | ||
| 16955 - PIPE, HYDRAULIC MOTOR RETURN | ||||
| 16955-64020 |
3CT..CV4# |
1 | ||
| 16955-64010 |
3CT..CV4# |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
3CT..CV4# |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50010 |
3CT..CV4# |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-62010 |
3CT..CV4# |
1 | ||
| Common parts | ||||
| 90093-00807 | ||||
| 90096-90033 | ||||
| 90099-01093 | ||||
| 90099-01551 | ||||
| 90099-04120 | ||||
| 90099-04565 | ||||
| 90099-14107 | ||||
| 90099-15035 | ||||
| 90105-08114 | ||||
| 90119-06236 | ||||
| 90119-06241 | ||||
| 90119-08951 | ||||
| 90170-08032 | ||||
| 90179-06290 | ||||
| 90179-08040 | ||||
| 90430-17005 | ||||
| 90467-16008 | ||||
| 90467-19015 | ||||
| 90467-22004 | ||||
| 90929-01017 | ||||
| 91511-60625 | ||||
| 91611-60816 | ||||
| 91621-60818 | ||||
| 91621-B0816 | ||||
| 91626-60616 | ||||
| 91631-60616 | ||||
| 91651-B0614 | ||||
| 91651-B0616 | ||||
| 91652-B0614 | ||||

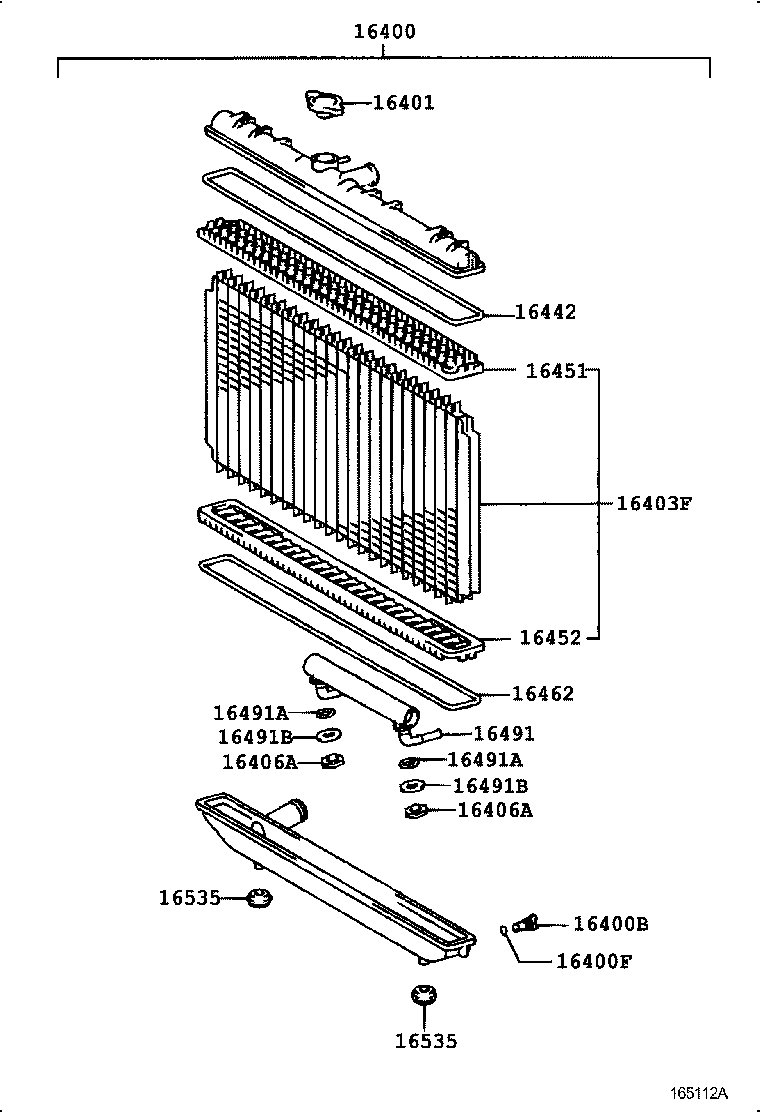

ILLUST NO. 2 OF 2(9406- )3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-6A050 |
3CT..CV40..ATM |
1 | ||
| 16400-6A100 |
3CT..CV40..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3CT..CV4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3CT..CV4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3CT..CV4# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-62080 |
3CT..CV4#..ATM |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3CT..CV40..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3CT..CV40..ATM |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-74670 |
3CT..CV4# |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-74680 |
3CT..CV4# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74680 |
3CT..CV4# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74670 |
3CT..CV4# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-16380 |
3CT..CV40..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3CT..CV4#..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3CT..CV4#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3CT..CV40..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3CT..CV40..ATM |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64070 |
3CT..CV4# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64070 |
3CT..CV4# |
2 | ||
