CV40-BTPDX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )3CT..ATM

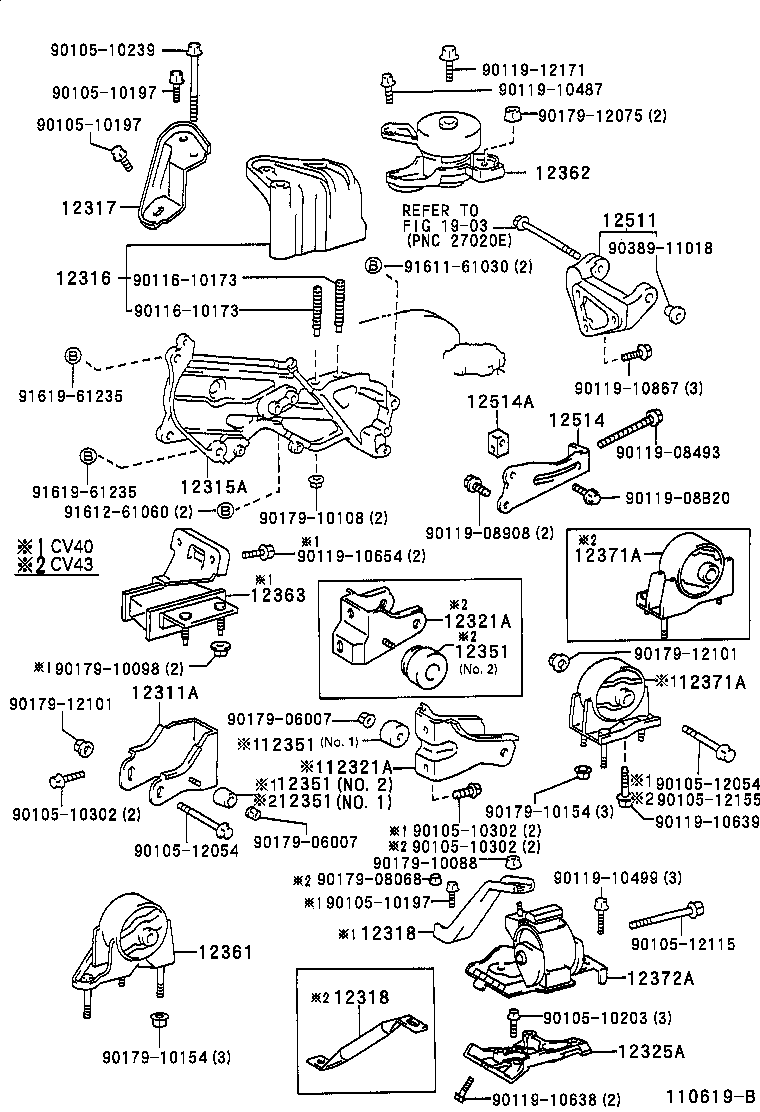

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-64170 |
3CT..CV40 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-64050 |
3CT..CV4# |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-64010 |
3CT..CV40 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-64060 |
3CT..CV4# |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-64090 |
3CT..CV40..ATM |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-64090 |
3CT..CV40..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74220 |
3CT..CV40..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74220 |
3CT..CV40..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74280 |
3CT..CV40..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3CT..CV40..ATM ﾘﾔ |
1 | ||
| 12351-64020 |
3CT..CV40..ATM ﾌﾛﾝﾄ |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3CT..CV40..ATM ﾘﾔ |
1 | ||
| 12351-64020 |
3CT..CV40..ATM ﾌﾛﾝﾄ |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3CT..CV40..ATM ﾘﾔ |
1 | ||
| 12351-64020 |
3CT..CV40..ATM ﾌﾛﾝﾄ |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3CT..CV40..ATM ﾘﾔ |
1 | ||
| 12351-64020 |
3CT..CV40..ATM ﾌﾛﾝﾄ |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-74210 |
3CT..CV4#..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74270 |
3CT..CV40 |
1 | ||
| 12362-74271 |
3CT..CV40 |
1 | ||
| 12362-74272 |
3CT..CV40 |
1 | ||
| 12363 - INSULATOR, ENGINE MOUNTING, CENTER | ||||
| 12363-64040 |
3CT..CV40..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64190 |
3CT..CV40..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64190 |
3CT..CV40..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74530 |
3CT..CV40..ATM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-64060 |
3CT..CV4# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 16381-64080 |
3CT..CV4# |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
3CT..CV4# |
1 | ||
| Common parts | ||||
| 90105-10197 | ||||
| 90105-10203 | ||||
| 90105-10239 | ||||
| 90105-10302 | ||||
| 90105-12054 | ||||
| 90105-12115 | ||||
| 90105-12155 | ||||
| 90116-10173 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90119-10487 | ||||
| 90119-10499 | ||||
| 90119-10638 | ||||
| 90119-10639 | ||||
| 90119-10654 | ||||
| 90119-10867 | ||||
| 90119-12171 | ||||
| 90179-06007 | ||||
| 90179-08068 | ||||
| 90179-10088 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-12075 | ||||
| 90179-12101 | ||||
| 90389-11018 | ||||
| 91611-61030 | ||||
| 91612-61060 | ||||
| 91619-61235 | ||||
| Linked diagrams | ||||
| 1903 | ||||
