CV40-BTMGX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

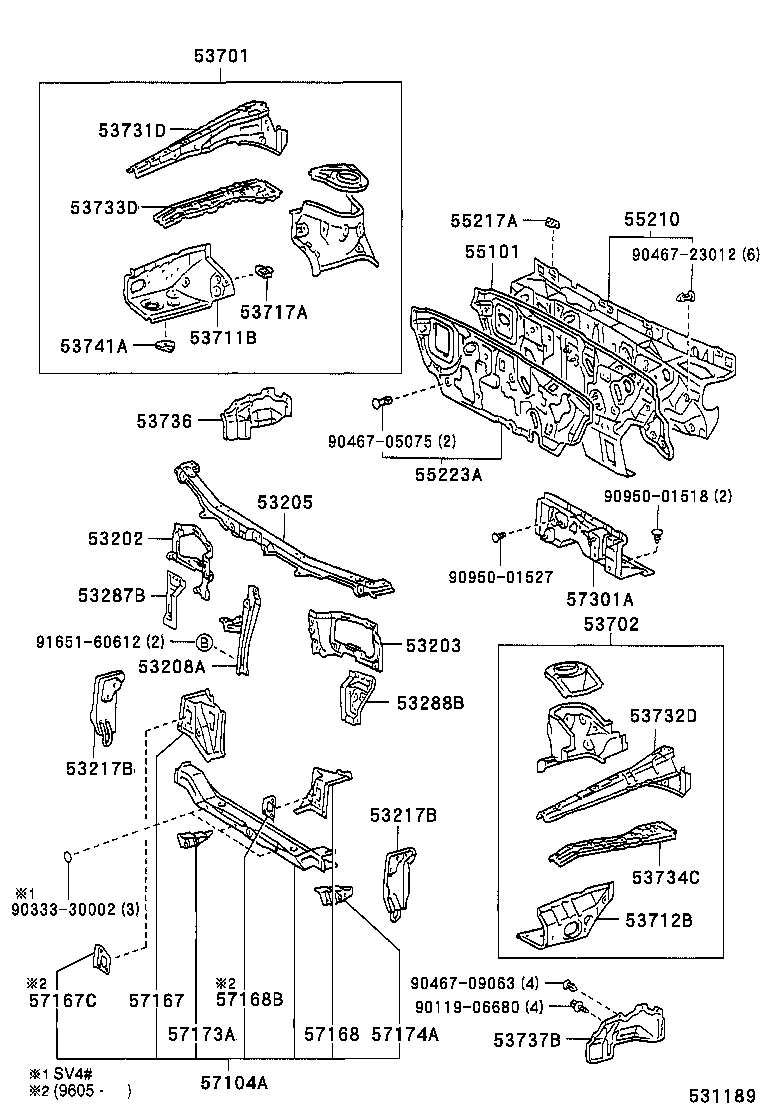

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-32900 |
CV4#,SV4# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-32900 |
CV4#,SV4# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-32050 |
CV4#,SV4# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-32160 |
CV4#,SV4# |
1 | ||
| 53217B - BRACE, RADIATOR SUPPORT TO CROSSMEMBER | ||||
| 53218-32040 |
CV4#,SV4# 左側 |
1 | ||
| 53217-32040 |
CV4#,SV4# 右側 |
1 | ||
| 53217B - BRACE, RADIATOR SUPPORT TO CROSSMEMBER | ||||
| 53218-32040 |
CV4#,SV4# 左側 |
1 | ||
| 53217-32040 |
CV4#,SV4# 右側 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-32030 |
CV4#,SV4# |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-32030 |
CV4#,SV4# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-32916 |
CV4#,SV4# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-32913 |
CV4#,SV4# |
1 | ||
| 53702-32914 |
CV4#,SV4# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-32130 |
CV4#,SV4# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-32060 |
CV4#,SV4# |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-32020 |
CV4#,SV4# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-32901 |
CV4#,SV4# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-32901 |
CV4#,SV4# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-32040 |
CV4#,SV4# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-32040 |
CV4#,SV4# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-32020 |
CV4#,SV4# |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-32020 |
CV4#,SV4# |
1 | ||
| 53741A - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-32020 |
CV4#,SV4# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-32300 |
CV40,SV40,43..MTM |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-32080 |
CV4#,SV4# |
1 | ||
| 55210-32070 |
CV4#,SV4# |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-32010 |
CV4#,SV4# |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-32080 |
CV4#,SV41,42,43 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-32907 |
CV40,SV4# |
1 | ||
| 57104-32909 |
CV4#,SV4# |
1 | ||
| 57104-32908 |
CV4#,SV4# |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-32061 |
CV4#,SV4# |
1 | ||
| 57167-32070 |
CV4#,SV4# |
1 | ||
| 57167-32060 |
CV4#,SV4# |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57183-32010 |
CV4#,SV4# |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-32061 |
CV4#,SV4# |
1 | ||
| 57168-32060 |
CV4#,SV4# |
1 | ||
| 57168-32070 |
CV4#,SV4# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57184-32010 |
CV4#,SV4# |
1 | ||
| 57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH | ||||
| 57173-32030 |
CV4#,SV4# |
1 | ||
| 57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH | ||||
| 57174-32020 |
CV4#,SV4# |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-32140 |
CV40,SV40,43..MTM |
1 | ||
| Common parts | ||||
| 90119-06680 | ||||
| 90333-30002 | ||||
| 90467-05075 | ||||
| 90467-09063 | ||||
| 90467-23012 | ||||
| 90950-01518 | ||||
| 90950-01527 | ||||
| 91651-60612 | ||||
