CV40-BTMDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )HT

Click highlighted areas on diagram

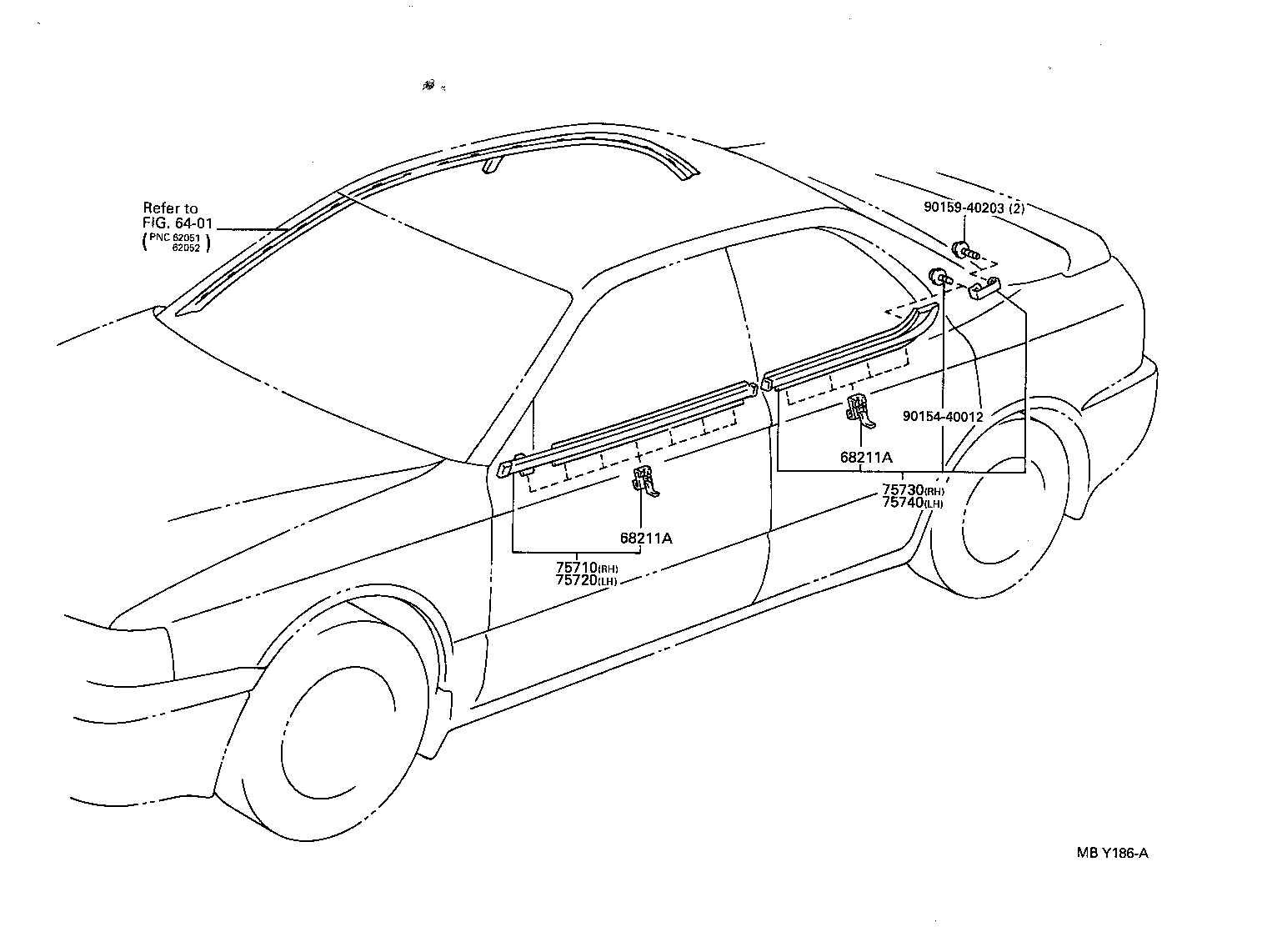

diagram 6401 68211A 68211A 75710 75720 75730 75740 9015440012 9015940203
Part # Description Qty Price
68211A - CLIP, DOOR BELT MOULDING
68211-20140

CV4#,SV4#..HT

 20
68211A - CLIP, DOOR BELT MOULDING
68211-20140

CV4#,SV4#..HT

 20
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-32160

CV4#,SV4#..HT

 1
75710-32170

CV4#,SV4#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-32170

CV4#,SV4#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75720-32160

CV4#,SV4#..HT

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-32150

CV4#,SV4#..HT

 1
75730-32160

CV4#,SV4#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-32150

CV4#,SV4#..HT

 1
75740-32160

CV4#,SV4#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90154-40012
90159-40203
Linked diagrams
6401
