CV40-BTMDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

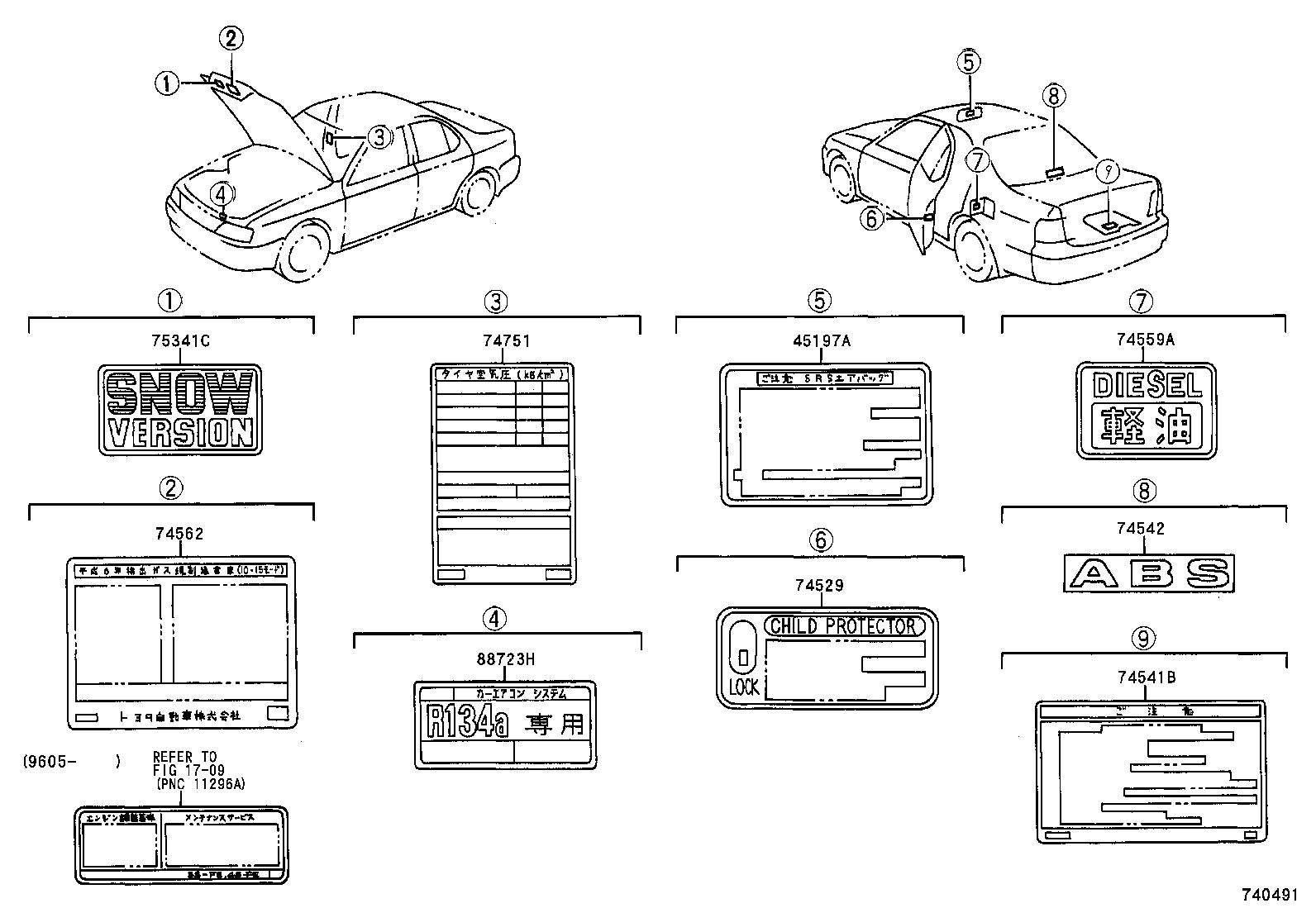

Click highlighted areas on diagram

diagram 1709 45197A 74529 74541B 74542 74559A 74562 74751 75341C 88723H
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-32030

CV4#,SV40;SV41,42,43..ALPX,ETO,LUM,TOU

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

CV4#,SV4#

 2
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

CV4#,SV4#

 1
74542 - PLATE, REAR WINDOW MARK
74542-10020

CV4#,SV4#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CV4#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-32140

CV4#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-32480

CV40,SV40..VJ,XJ

 1
42661-32481

CV40,SV40..VJ,XJ

 1
42661-32491

CV40,SV40,41,42..ALPX,ETO,LUM,VJ,VX,XJ,ZX

 1
75341C - PLATE, HOOD NAME
75341-20060

CV4#,SV4#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20030

CV4#,SV4#

 1
Linked diagrams
1709
