CV40-BTMDX (1994)
Toyota Camry/Vista

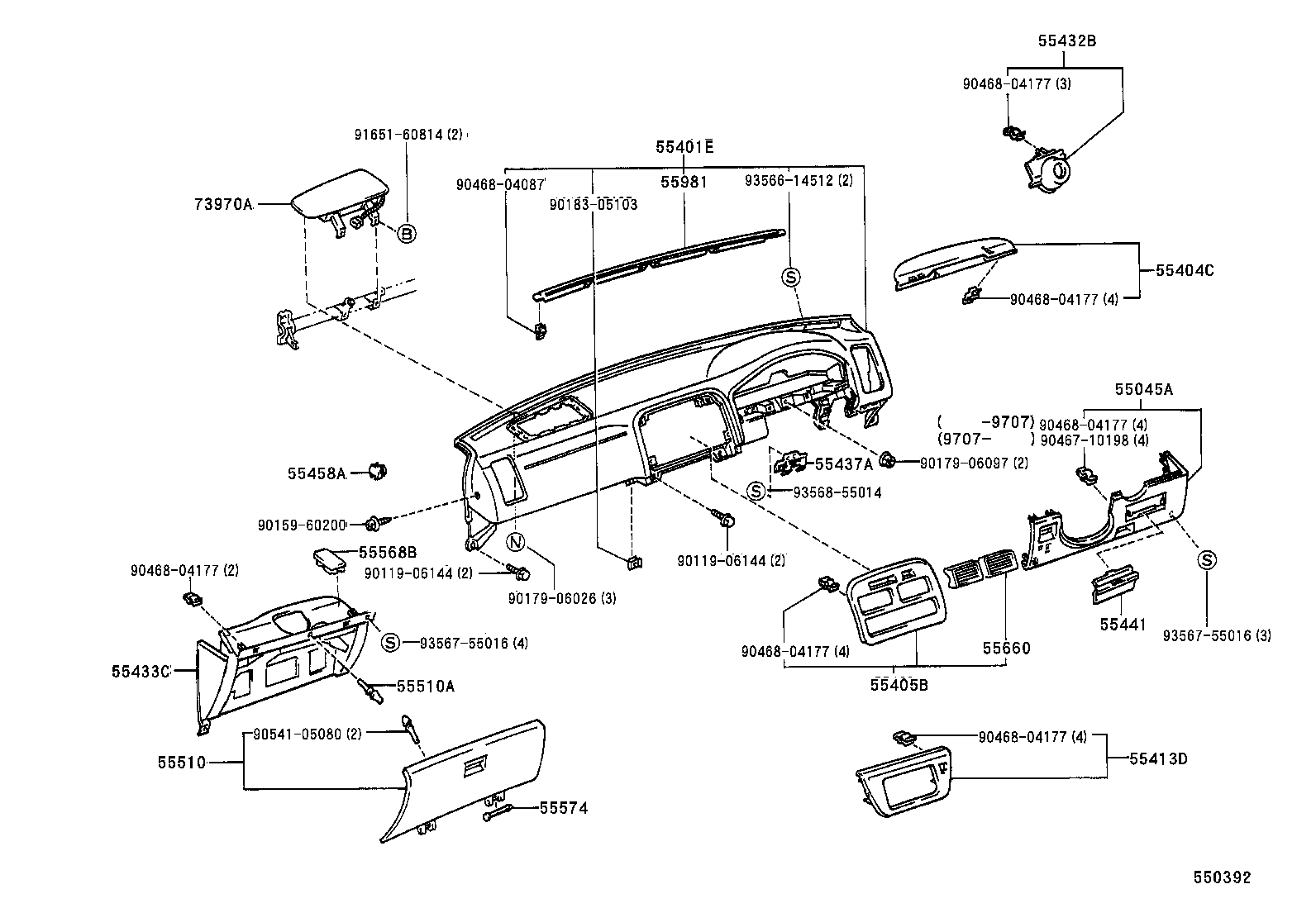

ILLUST NO. 1 OF 2(9406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-32030B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55045-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55045-32030E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55045-32030B1 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-32110B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55401-32120B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-32100E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55401-32120E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55401-32100B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-32110 |
CV4#,SV4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-32120 |
CV4#,SV4# |
1 | ||
| 55405-32140 |
CV4#,SV40..VJ,XJ |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-32030 |
CV4#,SV40;SV43..MTM |
1 | ||
| 55413-32060 |
CV4#,SV40..VJ,XJ |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55480-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-32060B0 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55433-32060E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55433-32060B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55433-32050E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55433-32050B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55433-32060E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-32020 |
CV4#,SV4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-32030E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55440-32030E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55440-32030B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55440-32030B1 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-32020E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55458-32020B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55501-32010E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55501-32010B1 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55501-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV4#,SV4# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
CV4#,SV4# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
CV4#,SV4# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-32120 |
CV4#,SV4# |
1 | ||
| 55660-32110 |
CV4#,SV4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-32070 |
CV4#,SV4# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-32010B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 73970-32010E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90159-60200 | ||||
| 90179-06026 | ||||
| 90179-06097 | ||||
| 90183-05103 | ||||
| 90467-10198 | ||||
| 90468-04087 | ||||
| 90468-04177 | ||||
| 90541-05080 | ||||
| 91651-60814 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

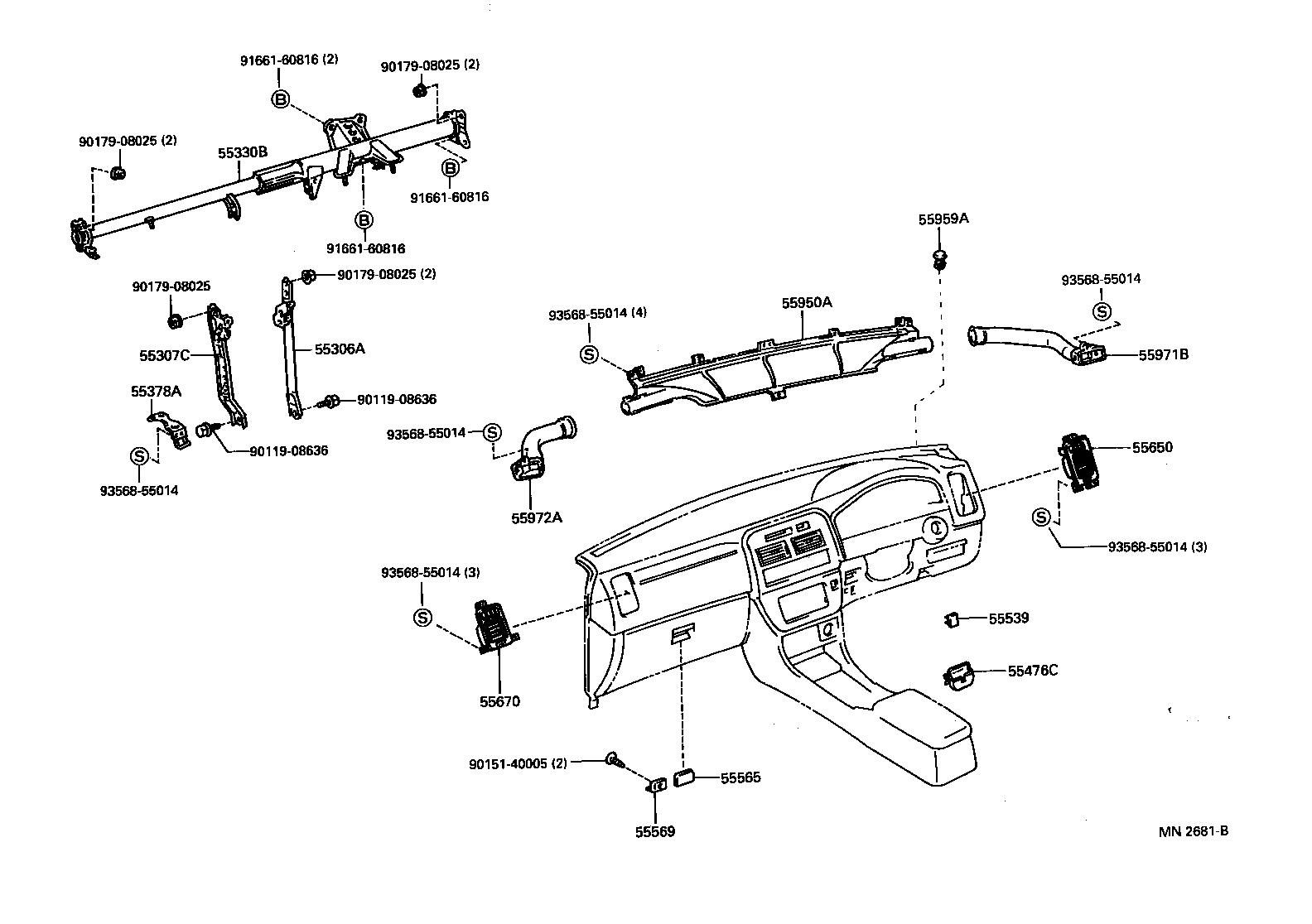

ILLUST NO. 2 OF 2(9406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32110 |
CV4#,SV4# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32080 |
CV4#,SV4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-32110 |
CV4#,SV4# |
1 | ||
| 55330-32100 |
CV4#,SV4# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55308-32020 |
CV4#,SV4# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-32020B0 |
CV40,SV40,43..MTM SHADOW GRAY,TRIM1# |
1 | ||
| 55476-32020B1 |
CV40,SV40,43..MTM MD.GRAY,TRIM1# |
1 | ||
| 55476-32020E0 |
CV40,SV40,43..MTM..(ETO,LUM,VJ,VX,XJ,ZX) OAK,TRIM4# |
1 | ||
| 55476-32020E1 |
CV40,SV40,43..MTM..(ETO,LUM,VJ,VX,XJ,ZX) MD.OAK,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55539-12130B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12130E3 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55539-12130B3 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55565-22020E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55565-22020B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55565-22020B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030B5 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 55569-22030E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55569-22030B1 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-22030E4 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX MD.OAK,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-32110B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-32110E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-32100E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
1 | ||
| 55670-32100B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-32060 |
CV4#,SV4# |
1 | ||
| 55950-32061 |
CV4#,SV4# |
1 | ||
| 55959A - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-24010C0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX BLACK,TRIM1#,4# |
1 | ||
| 55959-24010C0 |
CV4#,SV40,41,43..ETO,LUM,VJ,XJ BLACK,TRIM1#,4# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-32020 |
CV4#,SV4# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-32020 |
CV4#,SV4# |
1 | ||
| 55972-32010 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90151-40005 | ||||
| 90179-08025 | ||||
| 91661-60816 | ||||
| 93568-55014 | ||||
