CV40-BEPMX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )ALPX,TOU,VX,ZX ; (9504-9605)SV40,43..ETO,LUM

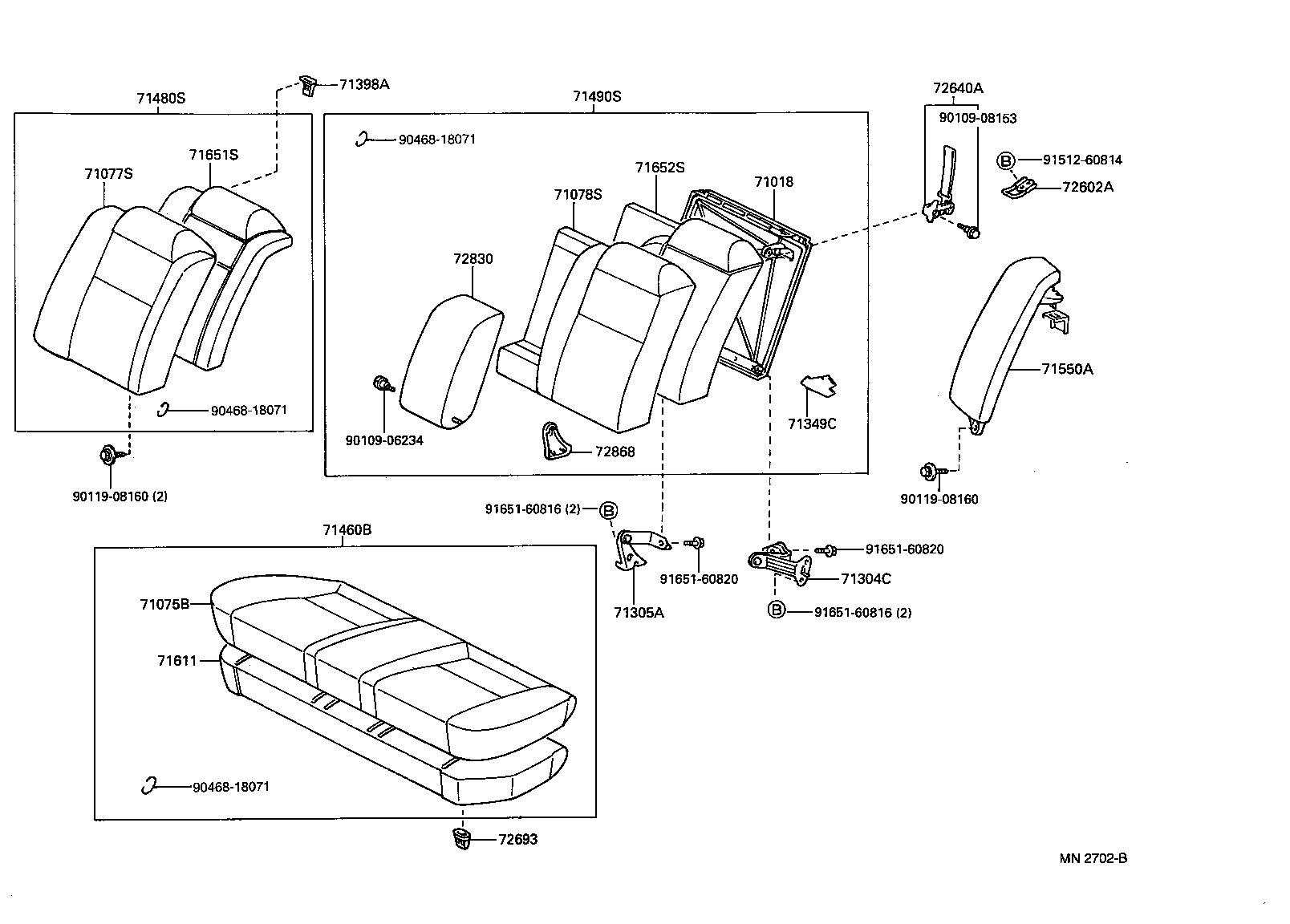

Click highlighted areas on diagram

diagram 71018 71075B 71077S 71078S 71304C 71305A 71349C 71398A 71460B 71480S 71490S 71550A 71611 71651S 71652S 72602A 72640A 72693 72830 72868 9010906234 9010908153 9011908160 9011908160 9046818071 9046818071 9046818071 9151260814 9165160816 9165160816 9165160820 9165160820
Part # Description Qty Price
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-32070

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-32550B0

CV4#,SV4#..SED..(ALPX,TOU)

SHADOW GRAY,TRIM1#

 1
71065-32641B0

CV4#,SV4#..SED..(ALPX,TOU)

MEDIUM GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-3H430B0

CV4#,SV4#..SED..(ALPX,TOU)

SHADOW GRAY,TRIM1#

 1
71077-3H490B0

CV4#,SV4#..SED..(ALPX,TOU)

MEDIUM GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-32820B0

CV4#,SV4#..SED..(ALPX,TOU)

MEDIUM GRAY,TRIM1#

 1
71078-32780B0

CV4#,SV4#..SED..(ALPX,TOU)

SHADOW GRAY,TRIM1#

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-32070

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-32070

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
71349C - COVER, REAR SEAT BACK HINGE
71349-32060

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
71398A - HOLDER, REAR SEAT BACK
71398-32010

CV4#,SV4#..ALPX,TOU,VX,ZX

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-32440B0

CV4#,SV4#..SED..(ALPX,TOU)

***,SHADOW GRAY,TRIM1#

 1
71560-32541B0

CV4#,SV4#..SED..(ALPX,TOU)

***,MEDIUM GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-3H360B0

CV4#,SV4#..SED..(ALPX,TOU)

***,SHADOW GRAY,TRIM1#

 1
71480-3H430B0

CV4#,SV4#..SED..(ALPX,TOU)

***,MEDIUM OAK,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-32800B0

CV4#,SV4#..SED..(ALPX,TOU)

***,MEDIUM GRAY,TRIM1#

 1
71490-32750B0

CV4#,SV4#..SED..(ALPX,TOU)

***,SHADOW GRAY,TRIM1#

 1
71550A - BACK ASSY, REAR SIDE SEAT, LH
71550-32710B0

CV4#,SV4#..SED..(ALPX,TOU)

SHADOW GRAY,TRIM1#

 1
71550-32760B0

CV4#,SV4#..SED..(ALPX,TOU)

MEDIUM GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-32010

CV4#,SV4#..SED

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71507-32070

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-32120

CV4#,SV4#..SED..(ALPX,TOU,ZX)

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-32020

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-32070B1

CV4#,SV4#..ALPX,TOU,VX,ZX

SHADOW GRAY,TRIM1#

 1
72640-32070B2

CV4#,SV4#..ALPX,TOU,VX,ZX

BLUISH GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

CV4#,SV4#

 4
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-32530B0

CV4#,SV4#..SED..(ALPX,TOU)

SHADOW GRAY,TRIM1#

 1
72830-32610B0

CV4#,SV4#..SED..(ALPX,TOU)

MEDIUM GRAY,TRIM1#

 1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-32020

CV4#,SV4#..ALPX,TOU,VX,ZX

 1
Common parts
90109-06234
90109-08153
90119-08160
90468-18071
91512-60814
91651-60816
91651-60820
