CV40-BEPMX (1994)
Toyota Camry/Vista
(9406- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-32690 |
CV4#,SV4#..ALPX,LUM,XJ,ZX |
1 | ||
| 64401-32700 |
CV4#,SV4#..ALPX,ZX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64401-32691 |
CV4#,SV4#..ALPX,LUM,XJ,ZX |
1 | ||
| 64401-32701 |
CV4#,SV4#..ALPX,ZX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
CV4#,SV4# |
2 | ||
| 90541-06054 |
CV4#,SV4# |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-32100 |
CV4#,SV4#..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-32040 |
CV4#,SV4#..SED |
1 | ||
| 64503-32041 |
CV4#,SV4#..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64504-32030 |
CV4#,SV4#..SED |
1 | ||
| 64504-32031 |
CV4#,SV4#..SED |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-32070 |
CV4#,SV4#..SED |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-32070 |
CV4#,SV4#..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-32150 |
CV4#,SV4#..ALPX,LUM,XJ,ZX |
1 | ||
| 64531-32160 |
CV4#,SV4#..ALPX,ZX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-32150 |
CV4#,SV4#..ALPX,LUM,XJ,ZX |
1 | ||
| 64532-32160 |
CV4#,SV4#..ALPX,ZX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32020 |
CV4#,SV4# |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-32250 |
CV4#,SV4#..SED |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-32080 |
CV4#,SV4#..SED |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-06009 |
CV4#,SV4#..SED |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12060 |
CV4#,SV4# |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-32090B4 |
CV4#,SV4# MD.GRAY,TRIM1# |
1 | ||
| 64640-32090B2 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 64640-32120B0 |
CV40,SV4# SHADOW GRAY,TRIM1# |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
CV4#,SV4# |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-32030 |
CV4#,SV4#..SED |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-32030 |
CV4#,SV4#..SED |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20110 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90105-06120 | ||||
| 90164-60028 | ||||
| 90469-08002 | ||||
| 90950-01832 | ||||
| 90959-01427 | ||||
| 90959-01460 | ||||

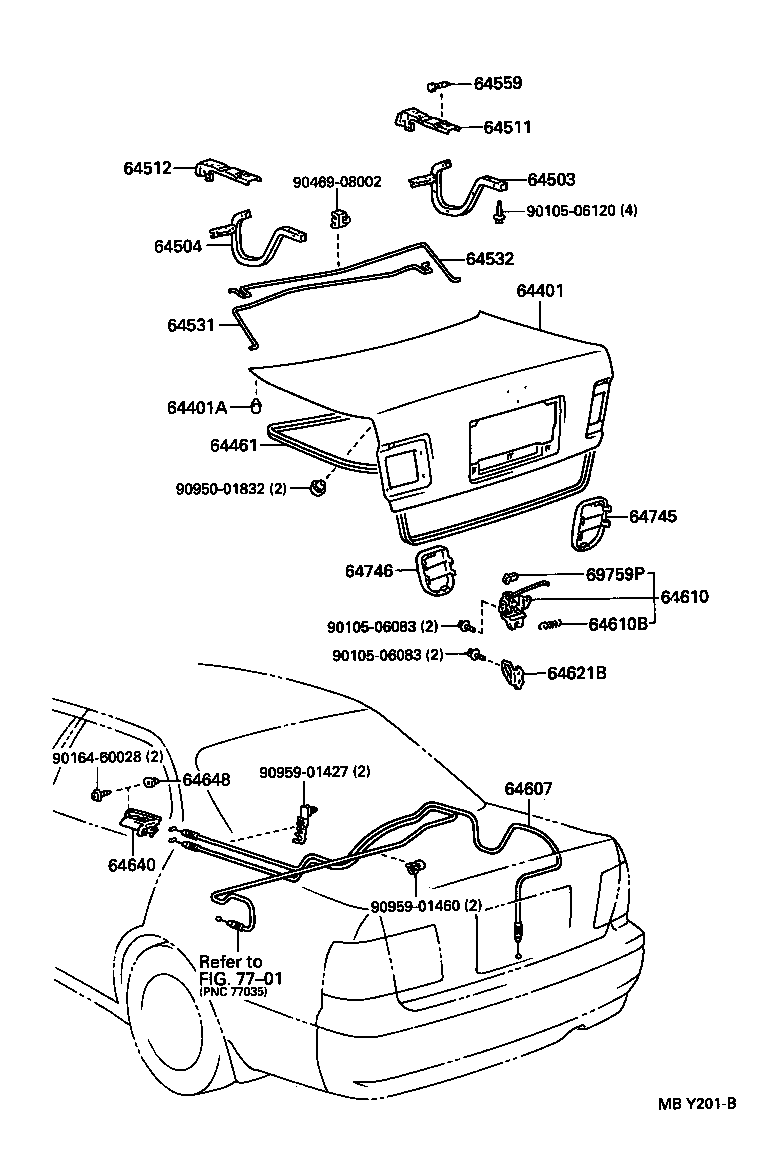

| Linked diagrams | ||||
| 7701 | ||||
