CV40-AEPGX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9406- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

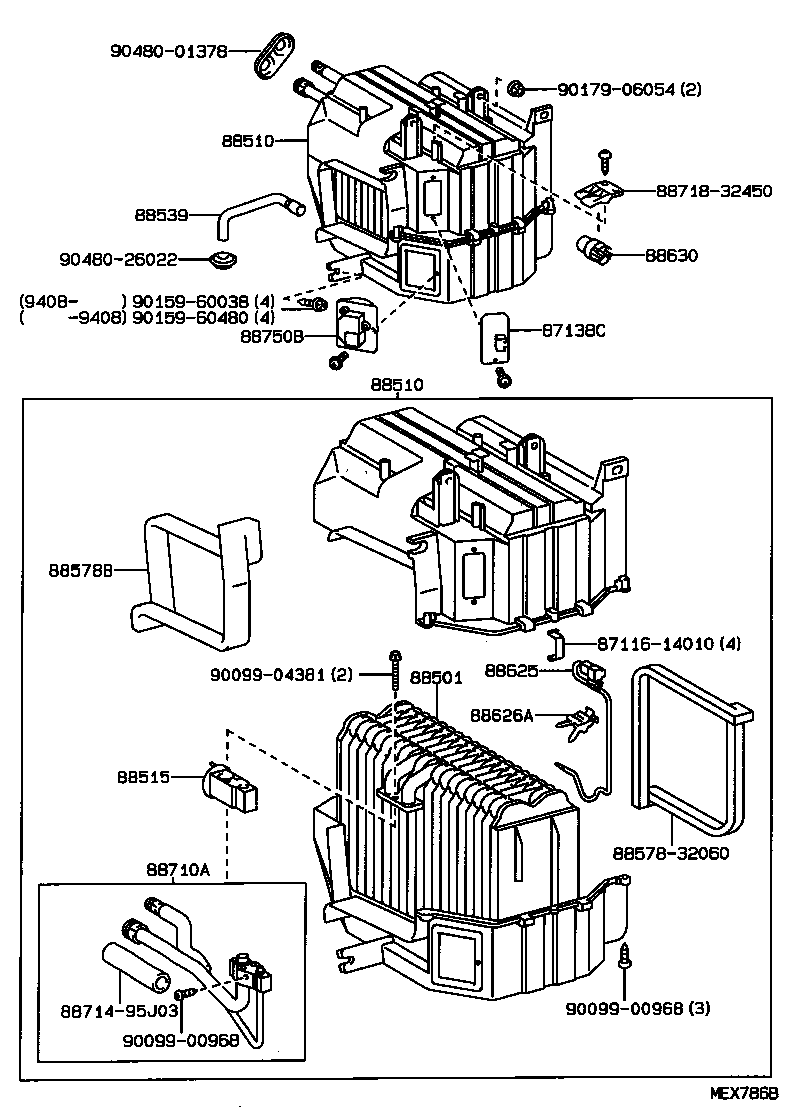

ILLUST NO. 1 OF 2(9406- )

Click highlighted areas on diagram

diagram 8711614010 87138C 88501 88510 88510 88515 88539 8857832060 88578B 88625 88626A 88630 88710A 8871495J03 8871832450 88750B 9009900968 9009900968 9009904381 9015960038 9015960480 9017906054 9048001378 9048026022
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-32060

CV4#,SV4#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-32100

CV4#,SV4#

 1
88510 - UNIT ASSY, COOLER
88510-32700

CV4#,SV4#

 1
88510 - UNIT ASSY, COOLER
88510-32700

CV4#,SV4#

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

CV4#,SV4#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-32060

CV4#,SV4#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20460

CV4#,SV4#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32150

CV4#,SV4#

 1
88626A - HOLDER, THERMISTOR
88626-28010

CV4#,SV4#

 1
88630 - RELAY ASSY, COOLER
90987-02004

CV4#,SV4#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-32170

CV4#,SV4#

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-32010

CV4#,SV4#

 1
Common parts
87116-14010
88578-32060
88714-95J03
88718-32450
90099-00968
90099-04381
90159-60038
90159-60480
90179-06054
90480-01378
90480-26022
