CV40-AEPGX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

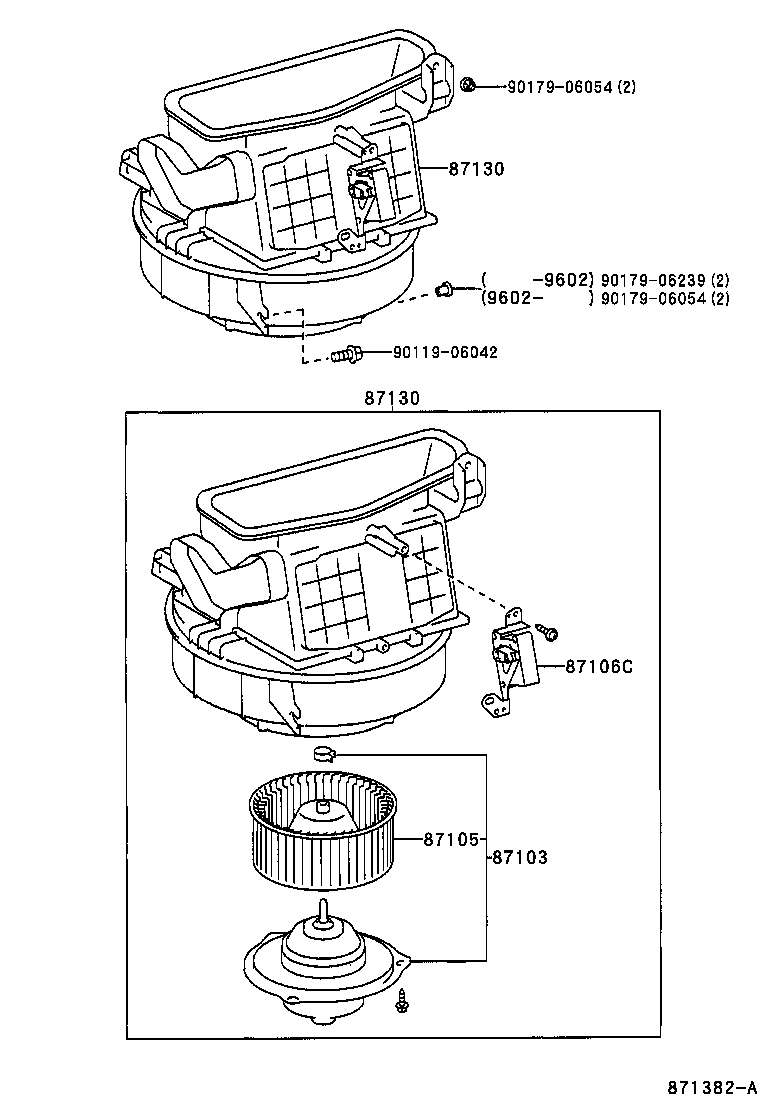

ILLUST NO. 1 OF 2(9406- )

Click highlighted areas on diagram

ﾋ-ﾀ ﾌﾞﾛﾜ

diagram 87103 87105 87106C 87130 87130 9011906042 9017906054 9017906054 9017906239
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20050

CV4#,SV4#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20100

CV4#,SV4#

 1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-32170

CV4#,SV4#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-32150

CV4#,SV4#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-32150

CV4#,SV4#

 1
Common parts
90119-06042
90179-06054
90179-06239

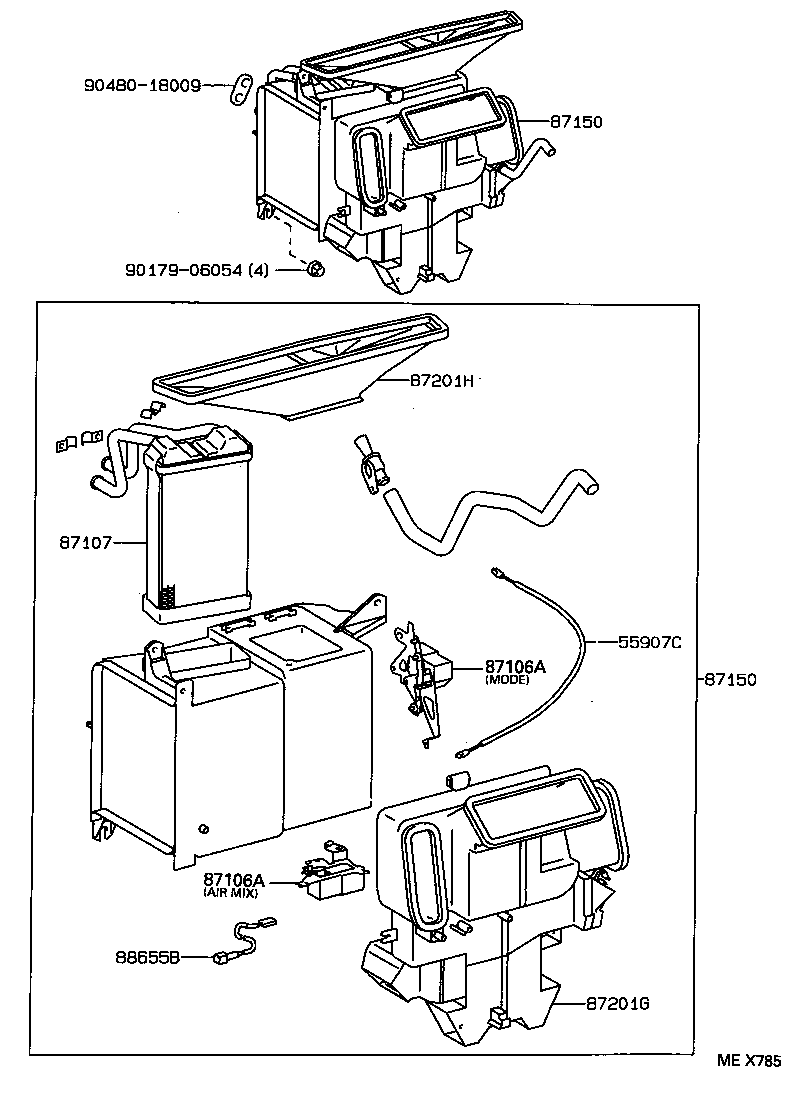

ILLUST NO. 2 OF 2(9406- )

Click highlighted areas on diagram

ﾋ-ﾀ ﾗｼﾞｴ-ﾀ

diagram 55907C 87106A 87106A 87107 87150 87150 87201G 87201H 88655B 9017906054 9048018009
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-32050

CV4#,SV4#

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32130

CV4#,SV4#

ﾓｰﾄﾞ

 1
87106-32160

CV4#,SV4#

ｴｱﾐｯｸｽ

 1
87106-32140

CV4#,SV4#..VX,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,ﾓｰﾄﾞ

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32130

CV4#,SV4#

ﾓｰﾄﾞ

 1
87106-32160

CV4#,SV4#

ｴｱﾐｯｸｽ

 1
87106-32140

CV4#,SV4#..VX,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,ﾓｰﾄﾞ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32110

CV4#

 1
87150 - RADIATOR ASSY, HEATER
87150-32300

CV4#

 1
87150-32320

CV4#,SV4#..VX,ZX

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-32300

CV4#

 1
87150-32320

CV4#,SV4#..VX,ZX

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87201G - DUCT SUB-ASSY, AIR
87201-32240

CV4#,SV4#

 1
87201H - DUCT SUB-ASSY, AIR
87201-32250

CV4#,SV4#

 1
88655B - SWITCH, WATER TEMPERATURE
88655-22020

CV4#,SV4#

 1
Common parts
90179-06054
90480-18009
