CV40-AEPGX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

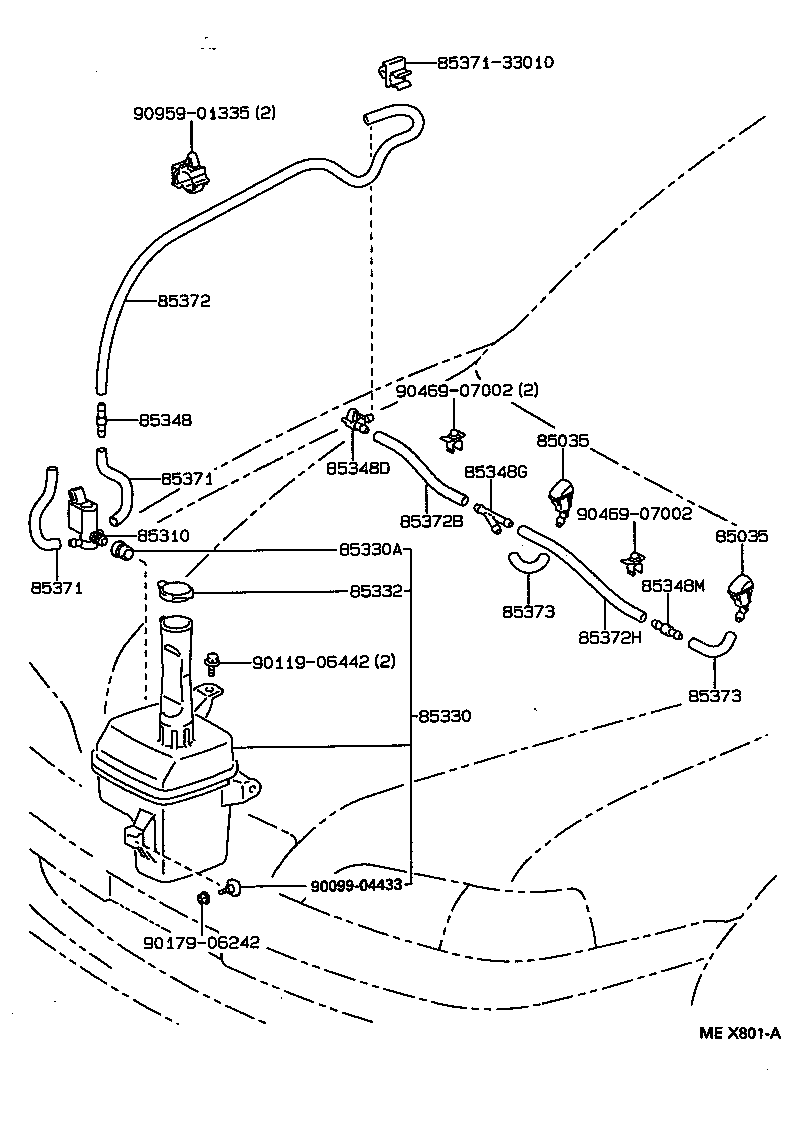

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85348 85348D 85348G 85348M 85371 85371 8537133010 85372 85372B 85372H 85373 85373 9009904433 9011906442 9017906242 9046907002 9046907002 9095901335
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85385-32030

CV4#,SV4#

 2
85385-32030

CV4#,SV4#..SED

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-32030

CV4#,SV4#

 2
85385-32030

CV4#,SV4#..SED

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

CV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX

 1
85330-12280

CV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX

ｱﾘ(*RW)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-32080

CV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW)

 1
85315-32070

CV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

CV4#,SV4#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-33120

CV4#,SV4#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CV4#,SV4#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85377-32220

CV4#,SV4#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-12250

CV4#,SV4#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

CV4#,SV4#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

CV4#,SV4#

*H,L=180

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

CV4#,SV4#

*H,L=180

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

CV4#,SV4#

*H,L=1390

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-59123

CV4#,SV4#

長さ=380

 1
90099-33299

CV4#,SV4#

*H,L=380

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

CV4#,SV4#

長さ=460

 1
90099-33299

CV4#,SV4#

*H,L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

CV4#,SV4#

*H,L=150

 2
90099-33299

CV4#,SV4#..SED

*H,L=150

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

CV4#,SV4#

*H,L=150

 2
90099-33299

CV4#,SV4#..SED

*H,L=150

 2
Common parts
85371-33010
90099-04433
90119-06442
90179-06242
90469-07002
90959-01335
