CV40-AEPGX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )3CT

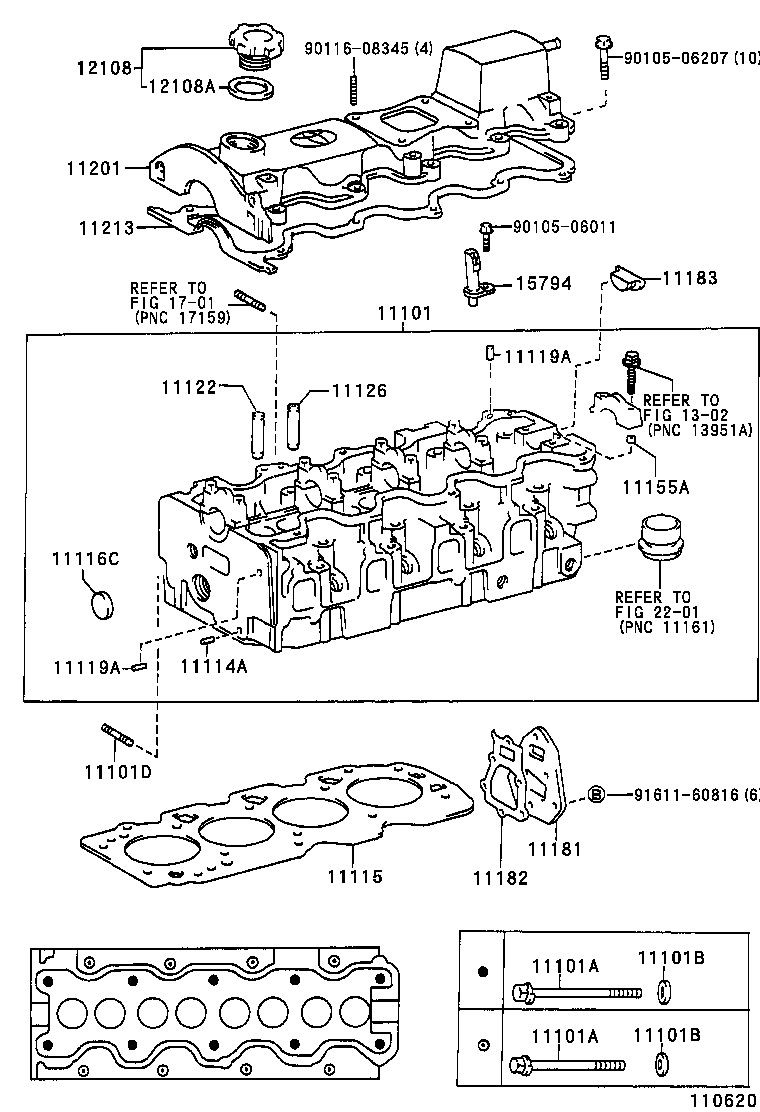

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11101D 11114A 11115 11116C 11119A 11119A 11122 11126 11155A 11181 11182 11183 11201 11213 12108 12108A 1302 15794 1701 2201 9010506011 9010506207 9011608345 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64230

3CT..CV4#

 1
11101-64261

3CT..CV4#

 1
11101-64262

3CT..CV4#

 1
11101-64211

3CT..CV4#

 1
11101-64263

3CT..CV4#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02099

3CT..CV4#

*11−1.25PX145−53

 10
90910-02097

3CT..CV4#

*11−1.25PX123−53

 8
90910-02097

3CT..CV4#

*11-1.25P X 123-53

 8
90910-02099

3CT..CV4#

*11-1.25P X 145-53

 10
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02099

3CT..CV4#

*11−1.25PX145−53

 10
90910-02097

3CT..CV4#

*11−1.25PX123−53

 8
90910-02097

3CT..CV4#

*11-1.25P X 123-53

 8
90910-02099

3CT..CV4#

*11-1.25P X 145-53

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CT..CV4#

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CT..CV4#

 18
11101D - BOLT, STUD(FOR WATER OUTLET)
92122-60820

3CT..CV4#

 3
11114A - PIN, STRAIGHT
90250-06068

3CT..CV4#

長さ=11,外径=6

 1
11115 - GASKET, CYLINDER HEAD
11115-6413001

3CT..CV4#

MARK 1

 1
11115-64130

3CT..CV4#

 1
11115-6413002

3CT..CV4#

MARK 2

 1
11115-6413003

3CT..CV4#

MARK 3

 1
11116C - PLUG, TIGHT, NO.3
96411-63000

3CT..CV4#

 1
11119A - PIN, STRAIGHT, NO.1
90250-06068

3CT..CV4#

長さ=11,外径=6

 2
90250-06013

3CT..CV4#

長さ=16,外径=6

 2
11119A - PIN, STRAIGHT, NO.1
90250-06068

3CT..CV4#

長さ=11,外径=6

 2
90250-06013

3CT..CV4#

長さ=16,外径=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-64010

3CT..CV4#

STD

 4
11123-64010

3CT..CV4#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-64030

3CT..CV4#

STD

 4
11126-64010

3CT..CV4#

STD

 4
11127-64010

3CT..CV4#

O/S 0.05

 4
11127-64030

3CT..CV4#

O/S 0.05

 4
11155A - PIN, RING W/HEAD
90253-11021

3CT..CV4#

 10
11181 - PLATE, CYLINDER HEAD, REAR
11181-64010

3CT..CV4#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-64021

3CT..CV4#

 1
11182-64020

3CT..CV4#

 1
11183 - PLUG, SEMICIRCULAR
11183-64010

3CT..CV4#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64110

3CT..CV4#

 1
11201-64141

3CT..CV4#

 1
11201-64111

3CT..CV4#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-64060

3CT..CV4#

 1
11213-64061

3CT..CV4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

3CT..CV4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

3CT..CV4#

 1
15794 - NOZZLE, CYLINDER HEAD OIL
15794-64011

3CT..CV4#

 1
Common parts
90105-06011
90105-06207
90116-08345
91611-60816
Linked diagrams
1302
1701
2201

(9406-9705)3CT

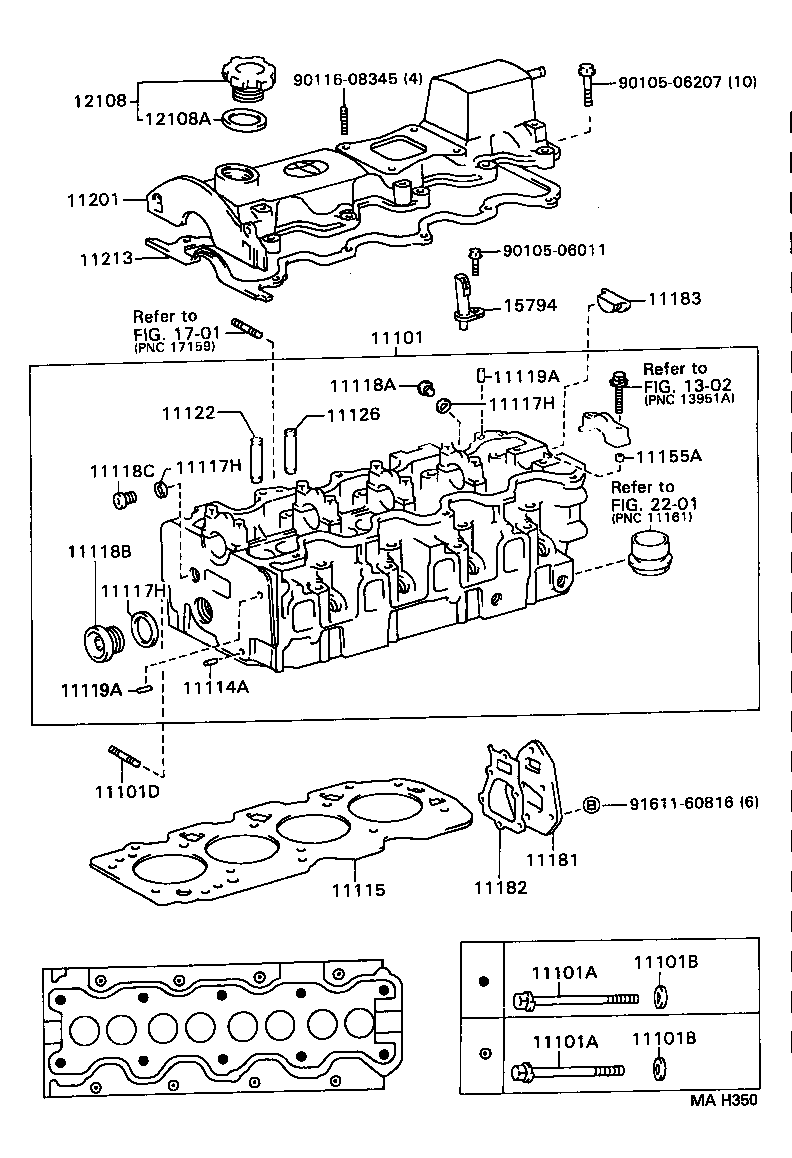

Click highlighted areas on diagram
