CV40-AEPDX (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

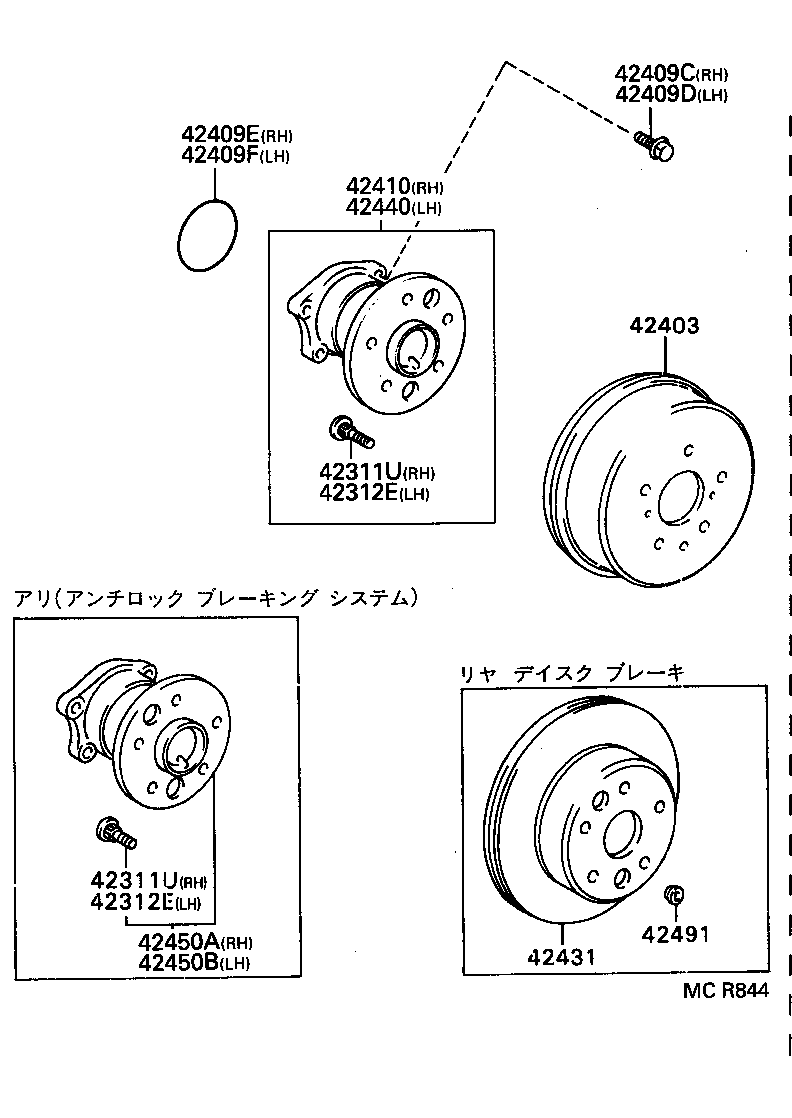

(9406-9605)CV40,SV40,41,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-32080 |
CV40,SV40 |
2 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90105-10124 |
CV40,SV40,41,42 |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90105-10124 |
CV40,SV40,41,42 |
4 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-63003 |
CV40,SV40,41,42 |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-63003 |
CV40,SV40,41,42 |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-32090 |
CV40,SV40,41,42 |
1 | ||
| 42410-32080 |
CV40,SV40,41,42 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-32090 |
CV40,SV41,42 |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-32090 |
CV40,SV40,41,42 |
1 | ||
| 42410-32080 |
CV40,SV40,41,42 |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-32020 |
CV40,SV40,41,42 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-32020 |
CV40,SV40,41,42 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
CV4#,SV41,42,43 |
2 | ||

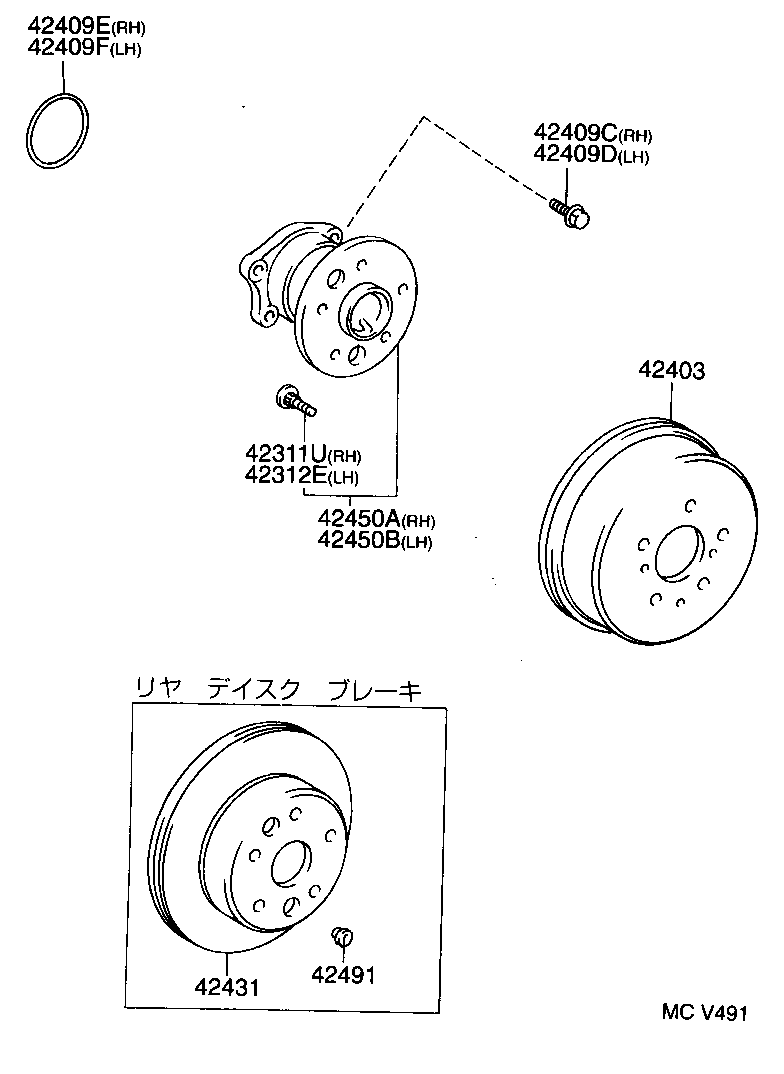

(9605- )CV40,SV40,41,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
CV40,SV40,41,42 |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-32080 |
CV40,SV40 |
2 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90105-10124 |
CV40,SV40,41,42 |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90105-10124 |
CV40,SV40,41,42 |
4 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-63003 |
CV40,SV40,41,42 |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-63003 |
CV40,SV40,41,42 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-32090 |
CV40,SV41,42 |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-32020 |
CV40,SV40,41,42 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-32020 |
CV40,SV40,41,42 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
CV4#,SV41,42,43 |
2 | ||
