CV40-AEMDX (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )3CT

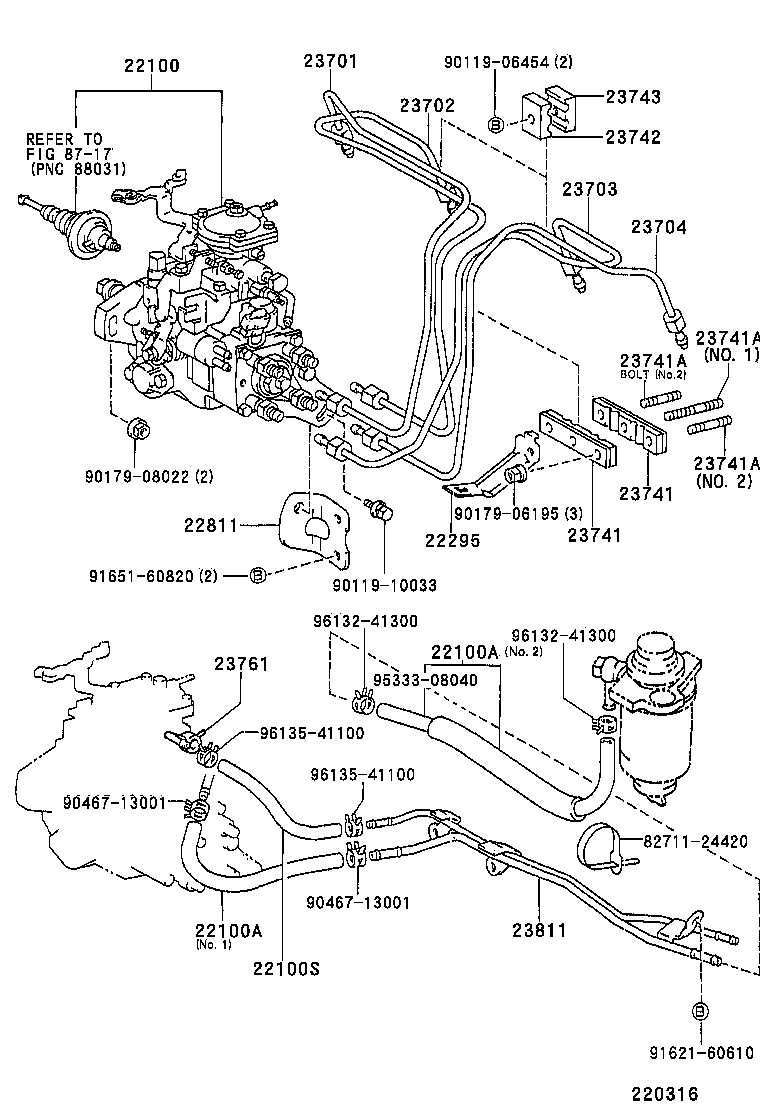

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100S 22295 22811 23701 23702 23703 23704 23741 23741 23741A 23741A 23741A 23742 23743 23761 23811 8271124420 8717 9011906454 9011910033 9017906195 9017908022 9046713001 9046713001 9162160610 9165160820 9533308040 9613241300 9613241300 9613541100 9613541100
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6D670

3CT..CV40..MTM

 1
22100-6E030

3CT..CV40..MTM

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14075

3CT..CV4#

長さ=400,NO.2

 1
23273-64030

3CT..CV4#

NO.1

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14075

3CT..CV4#

長さ=400,NO.2

 1
23273-64030

3CT..CV4#

NO.1

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
95333-06020

3CT..CV4#

 1
22295 - BRACKET, INJECTION PUMP CONNECTOR
22295-64011

3CT..CV4#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64020

3CT..CV4#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64110

3CT..CV4#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64110

3CT..CV4#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64090

3CT..CV4#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64110

3CT..CV4#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

3CT..CV4#

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

3CT..CV4#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

3CT..CV4#

NO.1

 1
92122-60622

3CT..CV4#

NO.2

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

3CT..CV4#

NO.1

 1
92122-60622

3CT..CV4#

NO.2

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

3CT..CV4#

NO.1

 1
92122-60622

3CT..CV4#

NO.2

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23741-54010

3CT..CV4#

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010

3CT..CV4#

 2
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23764-64041

3CT..CV4#

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64050

3CT..CV4#

 1
Common parts
82711-24420
90119-06454
90119-10033
90179-06195
90179-08022
90467-13001
91621-60610
91651-60820
95333-08040
96132-41300
96135-41100
Linked diagrams
8717
