CV30-BTPNX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)CV30

Click highlighted areas on diagram

diagram 87121F 87240 87245A 87245E 87246A 87249A 9046024039 9046721005 9046722004 9046722006 9046722006 9046722006 9046722006 9046722006 9048036015 9048036015 9095901294 9165540616 9165560820
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-32010

CV30,SV3#,VZV3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-32040

CV30,SV3#,VZV3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32240

CV30

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32210

CV30,SV3#,VZV3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32230

CV30

 1
87249A - PIPE, HEATER WATER OUTLET, A
87209-32030

CV30

 1
Common parts
90460-24039
90467-21005
90467-22004
90467-22006
90480-36015
90959-01294
91655-40616
91655-60820

(9009-9206)

Click highlighted areas on diagram

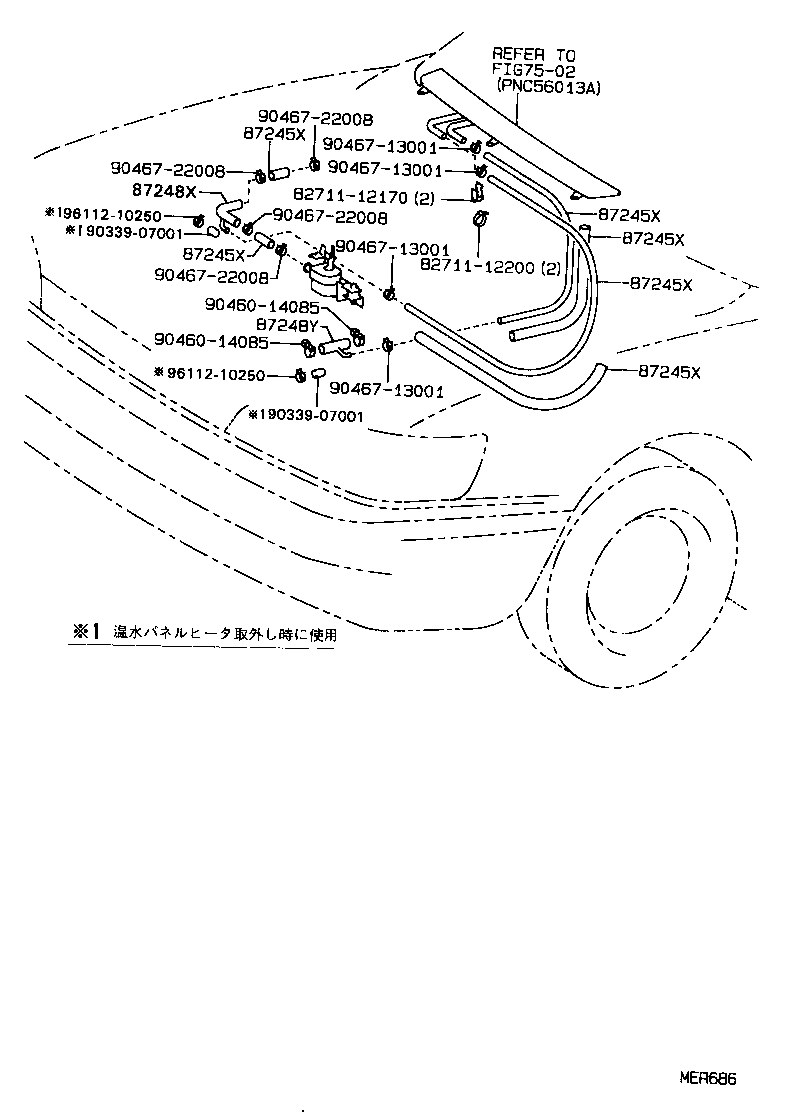

diagram 7502 8271112170 8271112200 87245X 87245X 87245X 87245X 87245X 87245X 87248X 87248Y 9033907001 9033907001 9046014085 9046014085 9046713001 9046713001 9046713001 9046713001 9046722008 9046722008 9046722008 9046722008 9611210250 9611210250
Part # Description Qty Price
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87245X - HOSE, HEATER WATER
99556-11000

CV30,SV3#,VZV3#

長さ=1000

 2
99556-30210

CV30,SV3#,VZV3#

*H,L=210

 1
90445-23006

CV30,SV3#,VZV3#

長さ=270

 2
87248X - PIPE, HEATER WATER
87248-32050

CV30,SV3#,VZV3#

 1
87248Y - PIPE, HEATER WATER, NO.2
87248-30260

CV30,SV3#,VZV3#

 1
Common parts
82711-12170
82711-12200
90339-07001
90460-14085
90467-13001
90467-22008
96112-10250
Linked diagrams
7502
