CV30-BTPGX (1992)
Toyota Camry/Vista
Production
Jun 1992
-
Jun 1994
Engine
2CT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9206-9406)CV30,SV3#..HT

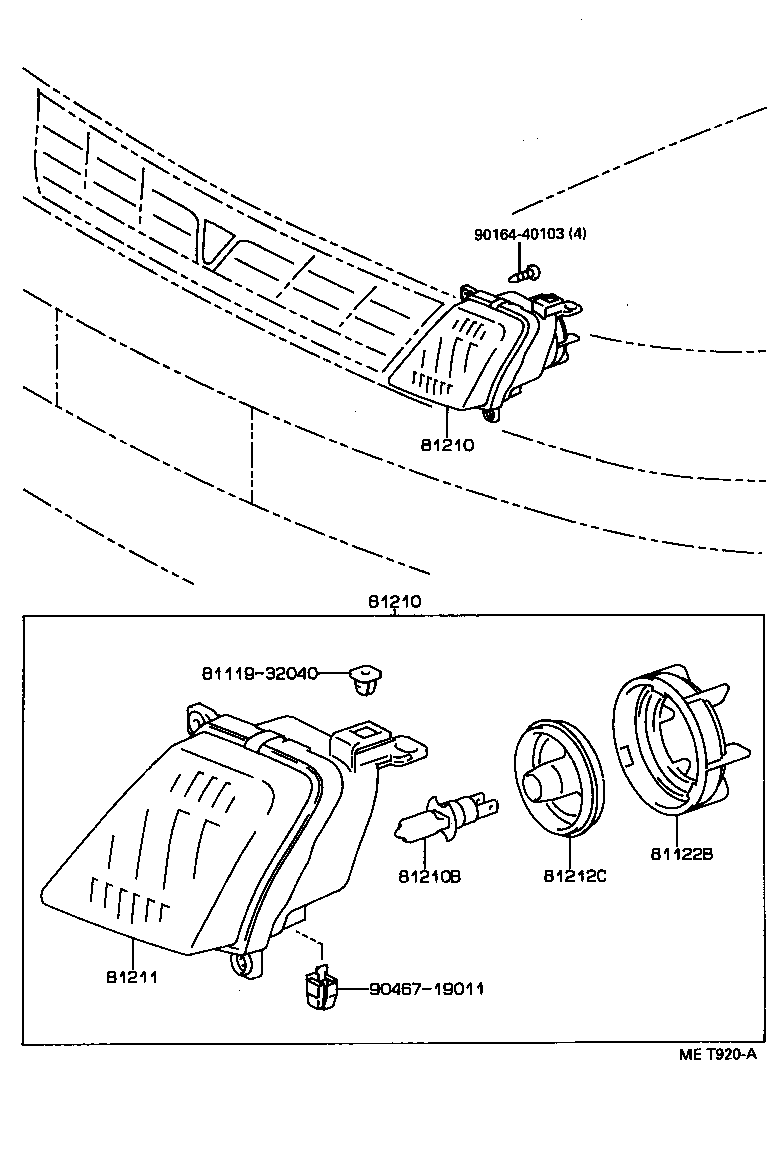

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81122B - HOLDER, FOG LAMP | ||||
| 81122-32040 |
CV30,SV3#..HT |
2 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-32040 |
CV30,SV3#..HT 右側 |
1 | ||
| 81220-32040 |
CV30,SV3#..HT 左側 |
1 | ||
| 81210-32030 |
CV30,SV3#..HT |
1 | ||
| 81220-32041 |
CV30,SV3#..HT 左側 |
1 | ||
| 81210-32041 |
CV30,SV3#..HT 右側 |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-32040 |
CV30,SV3#..HT 右側 |
1 | ||
| 81220-32040 |
CV30,SV3#..HT 左側 |
1 | ||
| 81210-32030 |
CV30,SV3#..HT |
1 | ||
| 81220-32041 |
CV30,SV3#..HT 左側 |
1 | ||
| 81210-32041 |
CV30,SV3#..HT 右側 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13039 |
CV30,SV3#..HT 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81211 - LENS, FOG LAMP | ||||
| 81221-32040 |
CV30,SV3#..HT 左側 |
1 | ||
| 81211-32040 |
CV30,SV3#..HT 右側 |
1 | ||
| 81212C - COVER, FOG LAMP | ||||
| 81139-32040 |
CV30,SV3#..HT |
2 | ||
| 81212-32030 |
CV30,SV3#..HT |
2 | ||
| Common parts | ||||
| 81119-32040 | ||||
| 90164-40103 | ||||
| 90467-19011 | ||||
