CV30-BTPEX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)CV30,SV30..4FC

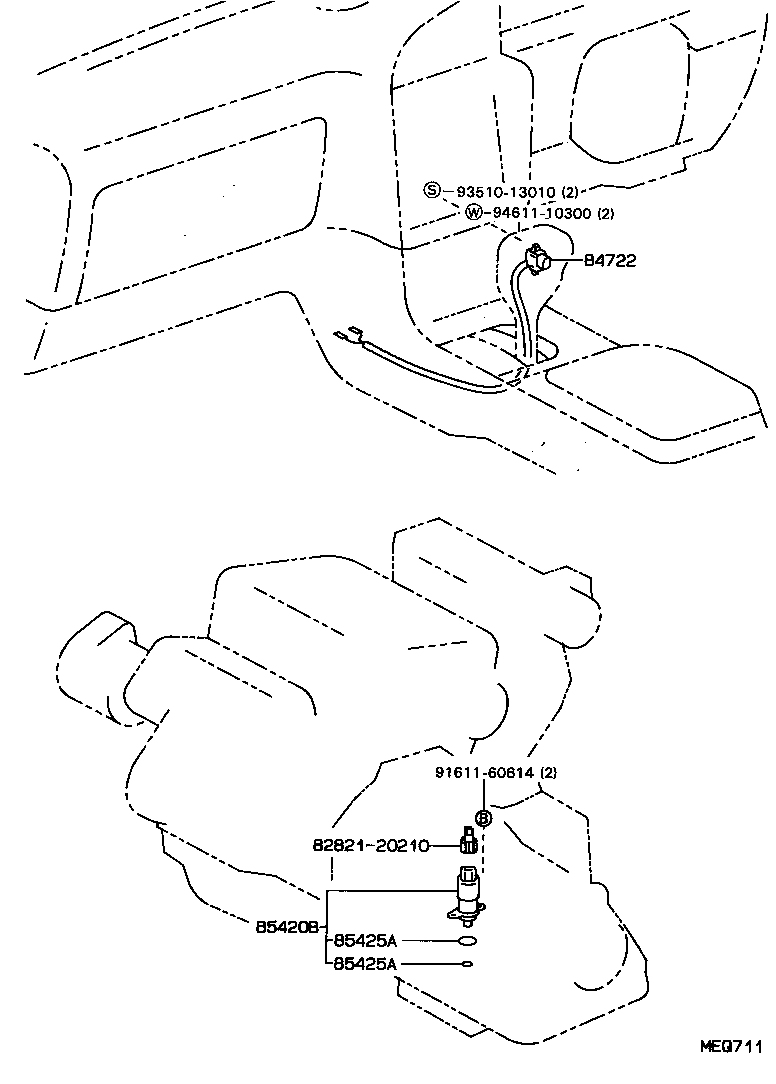

Click highlighted areas on diagram

OVERDRIVE

diagram 8282120210 84722 85420B 85425A 85425A 9161160614 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-3206002

CV30,SV3#,VZV3#..4FC

TAUPE,TRIM9#

 1
84722-3206003

CV30,SV3#,VZV3#..4FC

MEDIUM GRAY,TRIM1#

 1
84722-3206006

CV30,SV3#,VZV3#..HT..4FC

SABLE,TRIM4#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-20100

CV30,SV30..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06005

CV30,SV30..4FC

ID=7

 1
96721-19017

CV30,SV30..4FC

ID=17

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06005

CV30,SV30..4FC

ID=7

 1
96721-19017

CV30,SV30..4FC

ID=17

 1
Common parts
82821-20210
91611-60614
93510-13010
94611-10300
