CV30-BTMNX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

(9007-9206)ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

Click highlighted areas on diagram

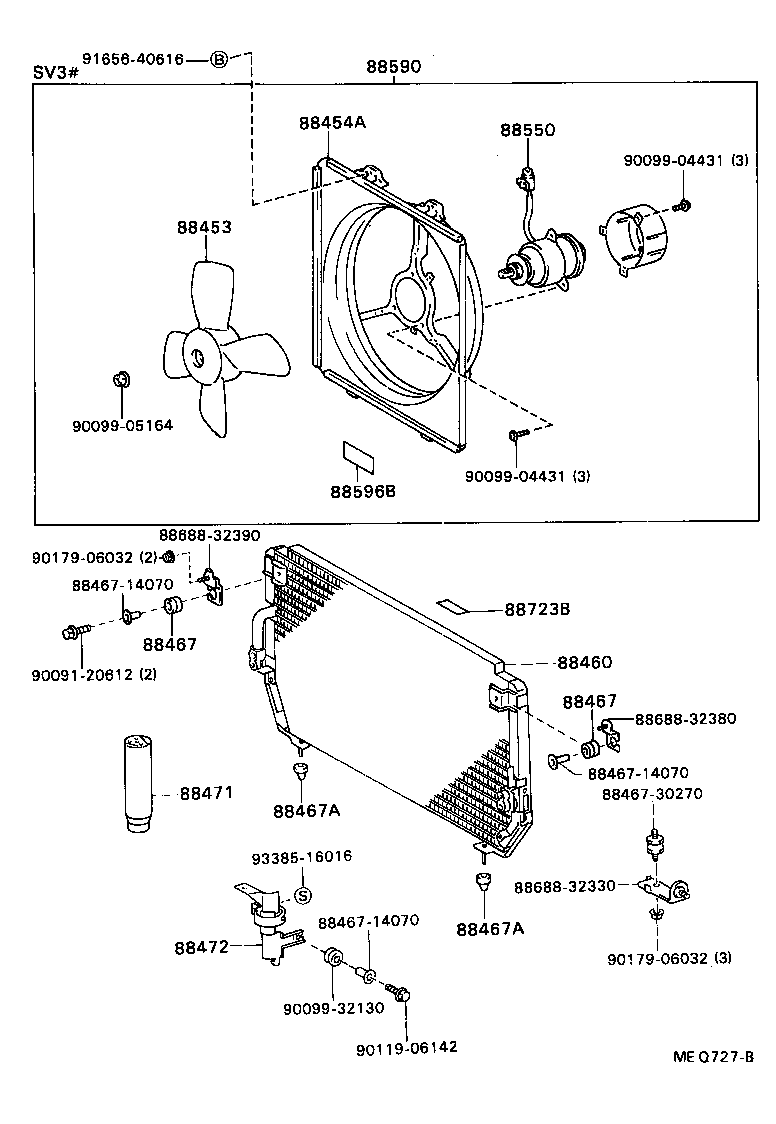

diagram 88453 88454A 88460 88467 88467 8846714070 8846714070 8846714070 8846730270 88467A 88467A 88471 88472 88550 88590 88596B 8868832330 8868832380 8868832390 88723B 9009120612 9009904431 9009904431 9009905164 9009932130 9011906142 9017906032 9017906032 9165640616 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32170

CV30

 1
88460-32190

CV30,SV3#,VZV3#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32050

CV30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32050

CV30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV30

 2
88467-32060

CV30,SV3#,VZV3#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV30

 2
88467-32060

CV30,SV3#,VZV3#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

CV30,SV3#,VZV3#

 1
88471-34010

CV30,SV3#,VZV3#

 1
88471-50010

CV30

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32050

CV30

 1
88473-32060

CV30,SV3#,VZV3#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22040

CV30

 1
88723-20030

CV30,SV3#,VZV3#

 1
Common parts
88467-14070
88467-30270
88688-32330
88688-32380
88688-32390
90091-20612
90099-04431
90099-05164
90099-32130
90119-06142
90179-06032
91656-40616
93385-16016

(9007-9206)CV30,SV3#

Click highlighted areas on diagram

diagram 8846730270 88479 8856916050 88710 88711 88712 8871412300 88716A 88717A 88717B 88717C 8871832360 8871832370 8871832390 8871832400 8871832420 8871832430 9009120619 9009120619 9011906033 9165140612 9165140625 9165160835 9165160835 9165160840 9165160845 9165540616 9165540616
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

CV30

250G

 2
90986-02007

CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)

250G

 3
88710 - TUBE ASSY, AIR CONDITIONER
88710-32090

CV30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32110

CV30

 1
88711-32130

CV30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32250

CV30..4FC..LUM;CV30..HT..4FC..ETO;CV30..5F..(ETO,LUM)

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ

 1
88712-32280

CV30

 1
88712-32230

CV30

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32470

CV30,SV3#,VZV3#

 1
88716-32380

CV30

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32380

CV30,SV3#,VZV3#

 1
88717-32350

CV30

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-32360

CV30

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-32370

CV30

 1
Common parts
88467-30270
88569-16050
88714-12300
88718-32360
88718-32370
88718-32390
88718-32400
88718-32420
88718-32430
90091-20619
90119-06033
91651-40612
91651-40625
91651-60835
91651-60840
91651-60845
91655-40616

(9206-9406)CV30,SV3#

Click highlighted areas on diagram

diagram 88453 88454A 88460 88467A 88467A 8846916040 8846916040 88471 88472 88550 88590 8868832380 8868832390 88716A 88716B 88723B 88891A 88891A 88891A 88891A 9009120619 9009900217 9009904117 9009904117 9009905164 9009932136 9009932136 9011906336 9011906336 9011906730 9165160614 91652B0616 9338556025 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32170

CV30

 1
88460-32190

CV30,SV3#,VZV3#

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV30

 2
88467-32060

CV30,SV3#,VZV3#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV30

 2
88467-32060

CV30,SV3#,VZV3#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

CV30,SV3#,VZV3#

 1
88471-34010

CV30,SV3#,VZV3#

 1
88471-50010

CV30

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32050

CV30

 1
88473-32060

CV30,SV3#,VZV3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32470

CV30,SV3#,VZV3#

 1
88716-32380

CV30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-32480

CV30,SV3#,VZV3#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22040

CV30

 1
88723-20030

CV30,SV3#,VZV3#

 1
88891A - PACKING A (FOR COOLER)
88578-32040

CV30,SV3#,VZV3#

NO.1

 2
53291-12090

CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)

NO.1

 2
88578-32050

CV30,SV3#,VZV3#

NO.2

 2
88891A - PACKING A (FOR COOLER)
88578-32040

CV30,SV3#,VZV3#

NO.1

 2
53291-12090

CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)

NO.1

 2
88578-32050

CV30,SV3#,VZV3#

NO.2

 2
88891A - PACKING A (FOR COOLER)
88578-32040

CV30,SV3#,VZV3#

NO.1

 2
53291-12090

CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)

NO.1

 2
88578-32050

CV30,SV3#,VZV3#

NO.2

 2
88891A - PACKING A (FOR COOLER)
88578-32040

CV30,SV3#,VZV3#

NO.1

 2
53291-12090

CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)

NO.1

 2
88578-32050

CV30,SV3#,VZV3#

NO.2

 2
Common parts
88469-16040
88688-32380
88688-32390
90091-20619
90099-00217
90099-04117
90099-05164
90099-32136
90119-06336
90119-06730
91651-60614
91652-B0616
93385-56025

(9206-9406)CV30

Click highlighted areas on diagram

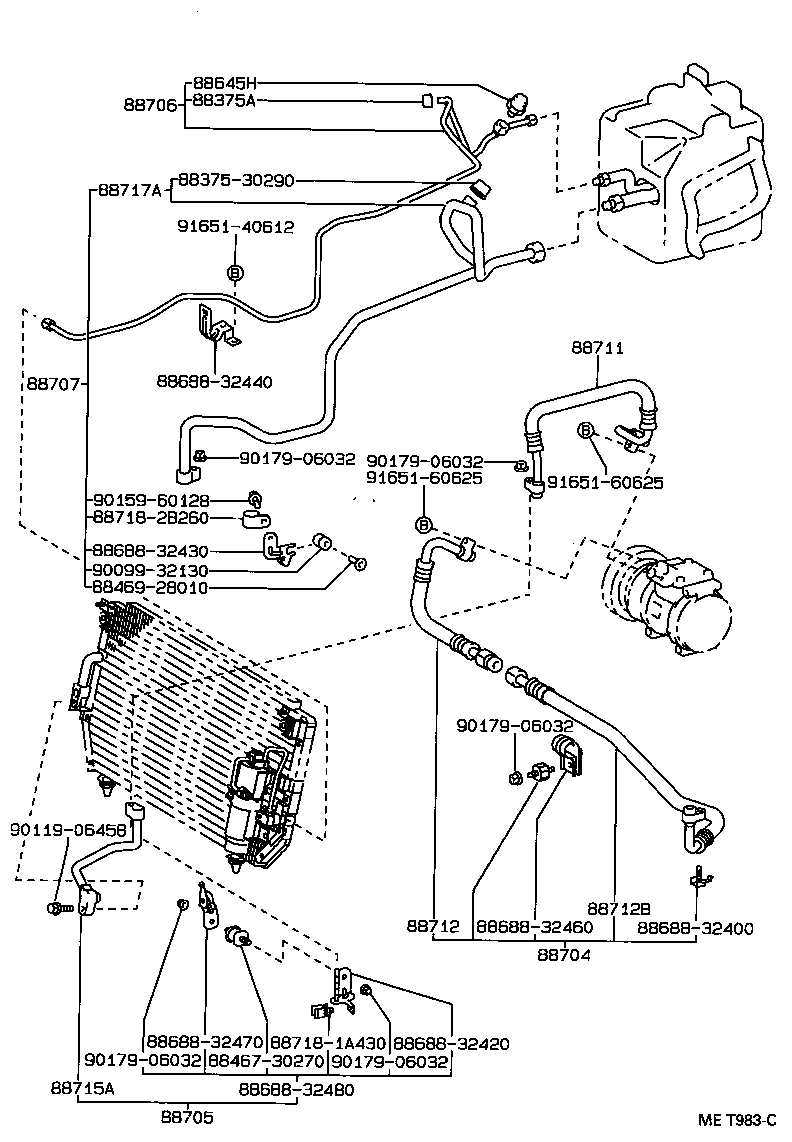

diagram 8837530290 88375A 8846730270 8846928010 88645H 8868832400 8868832420 8868832430 8868832440 8868832460 8868832470 8868832480 88704 88705 88706 88707 88711 88712 88712B 88715A 88717A 887181A430 887182B260 9009932130 9011906458 9015960128 9017906032 9017906032 9017906032 9017906032 9017906032 9165140612 9165160625 9165160625
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CV30,SV3#,VZV3#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CV30,SV3#,VZV3#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-32060

CV30

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-32010

CV30,SV3#,VZV3#

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-32010

CV30,SV3#,VZV3#

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-32010

CV30,SV3#,VZV3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32110

CV30

 1
88711-32130

CV30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32250

CV30..4FC..LUM;CV30..HT..4FC..ETO;CV30..5F..(ETO,LUM)

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ

 1
88712-32280

CV30

 1
88712-32230

CV30

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-32250

CV30

 1
88712-32280

CV30..4FC..LUM;CV30..HT..4FC..ETO;CV30..5F..(ETO,LUM)

ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-32020

CV30,SV3#,VZV3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32380

CV30,SV3#,VZV3#

 1
88717-32350

CV30

 1
Common parts
88375-30290
88467-30270
88469-28010
88688-32400
88688-32420
88688-32430
88688-32440
88688-32460
88688-32470
88688-32480
88718-1A430
88718-2B260
90099-32130
90119-06458
90159-60128
90179-06032
91651-40612
91651-60625
