CV30-BTMNX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

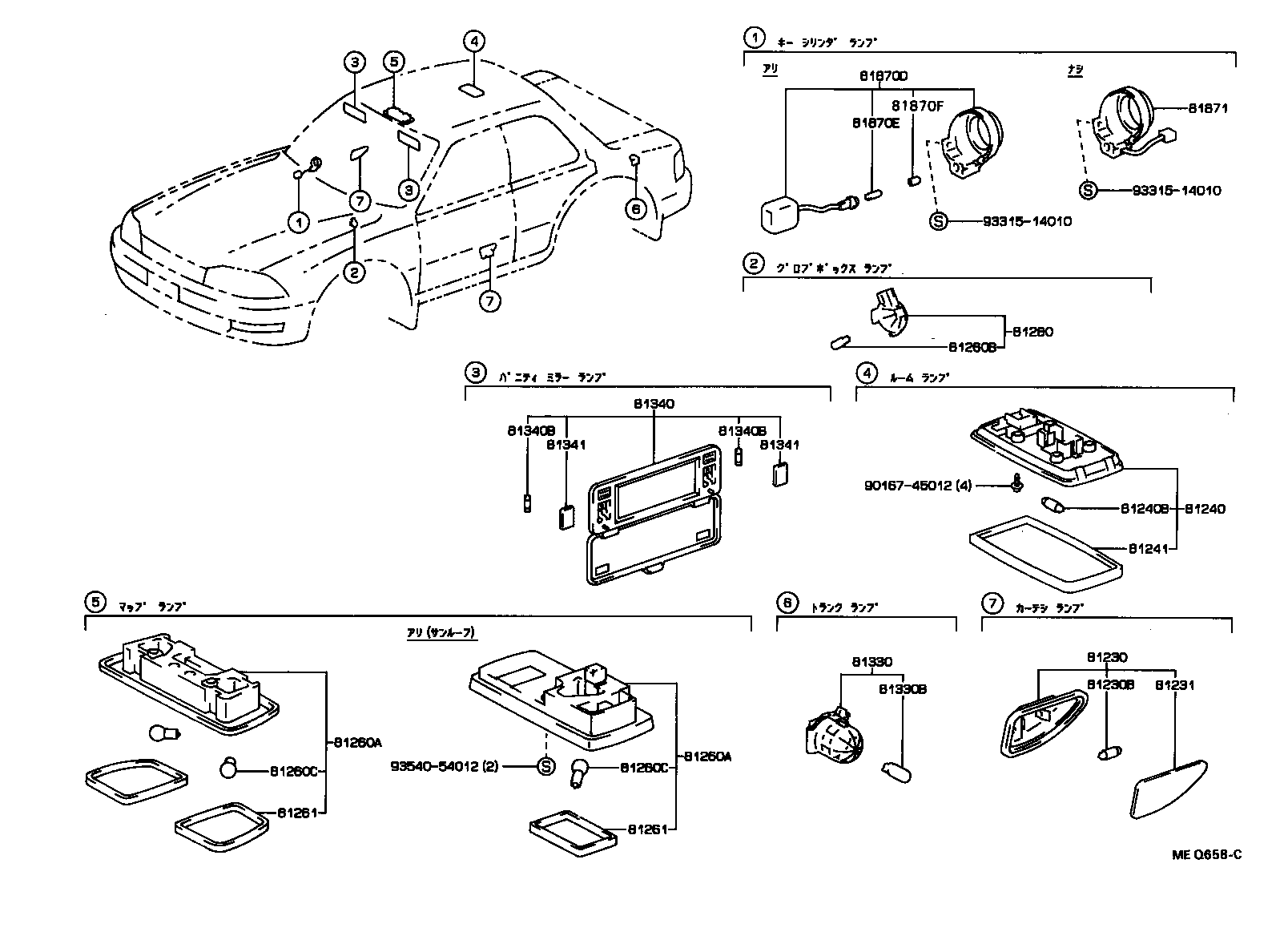

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81260 81260A 81260A 81260B 81260C 81260C 81261 81261 81330 81330B 81340 81340B 81340B 81341 81341 81870D 81870E 81870F 81871 9016745012 9331514010 9331514010 9354054012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-3203002

CV30,SV3#,VZV3#

LIGHT TAUPE,TRIM9#

 1
81240-32031E0

CV30,SV3#,VZV3#..HT

SABLE,TRIM4#

 1
81240-3203003

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
81240-3203006

CV30,SV3#,VZV3#..HT

SABLE,TRIM4#

 1
81240-32031B6

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
81240-32031K1

CV30,SV3#,VZV3#

LIGHT TAUPE,TRIM9#

 1
81240-32031E2

CV30,SV3#,VZV3#

LIGHT OAK,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CV30,SV3#,VZV3#

12V 10W

 1
90981-14004

CV30,SV3#,VZV3#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-32030

CV30,SV3#,VZV3#

 1
81241-32031

CV30,SV3#,VZV3#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

CV30,SV3#,VZV3#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

CV30,SV3#,VZV3#

12V 3.8W

 1
81871 - LENS, KEY ILLUMINATION
81871-32010

CV30,SV3#..ETO,LUM,VE,VL,XT,ZV

 1
Common parts
90167-45012
93315-14010
93540-54012
