CV30-BTMNX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

Click highlighted areas on diagram

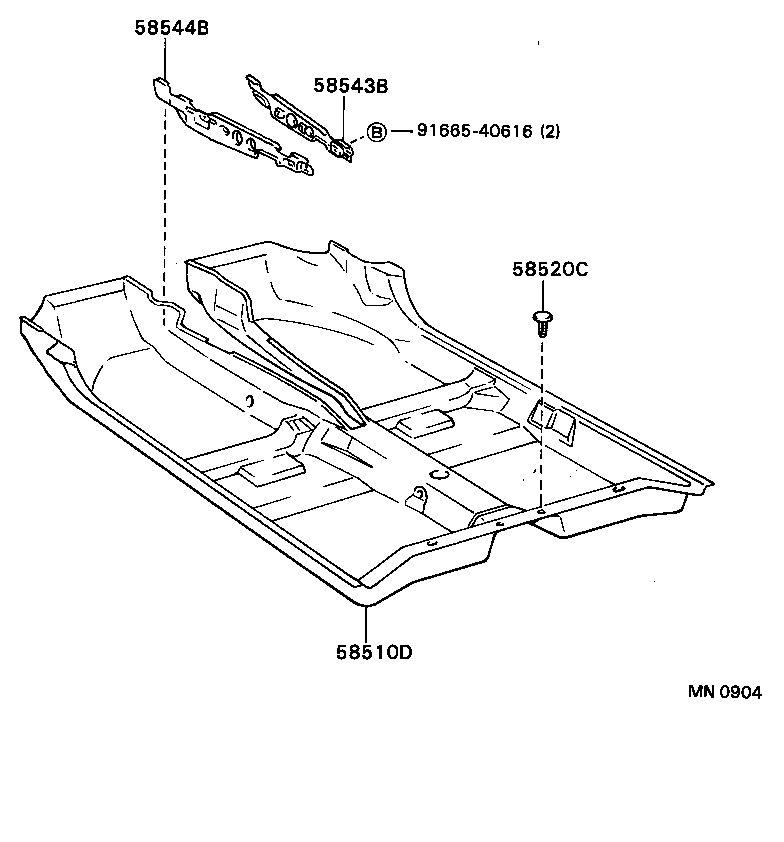

diagram 58510D 58520C 58543B 58544B 9166540616
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-3236006

CV30,SV3#..HT..(ETO,VE)

SABLE,TRIM4#

 1
58510-3236002

CV30,SV3#..ETO,LUM,VE,VL,XT,ZV

TAUPE,TRIM9#

 1
58510-3236003

CV30,SV3#..ETO,LUM,VE,VL,XT,ZV

MEDIUM GRAY,TRIM1#

 1
58510-3236016

CV30,SV3#..ETO,LUM,VL,XT

MI.GRAY,TRIM1#

 1
58510-32360K0

CV30,SV3#..ETO,LUM,VL,XT

TAUPE,TRIM9#

 1
58510-32360E0

CV30,SV3#..ETO,LUM,VL,XT

OAK,TRIM4#

 1
58510-32361E0

CV30,SV3#..ETO,LUM,VL,XT

OAK,TRIM4#

 1
58510-32361K0

CV30,SV3#..ETO,LUM,VL,XT

TAUPE,TRIM9#

 1
58510-3236116

CV30,SV3#..ETO,LUM,VL,XT

MI.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601601

CV30,SV3#,VZV3#

BLACK,TRIM1#,4#,9#

 2
90467-0601601

CV30,SV3#,VZV3#..HT

BLACK,TRIM1#,4#,9#

 2
58543B - BRACKET, FLOOR CARPET, RH
58543-32010

CV30,SV3#,VZV3#

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-32010

CV30,SV3#,VZV3#

 1
Common parts
91665-40616
