CV30-BTMEX (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
2CT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9206)CV30,SV3#..HT

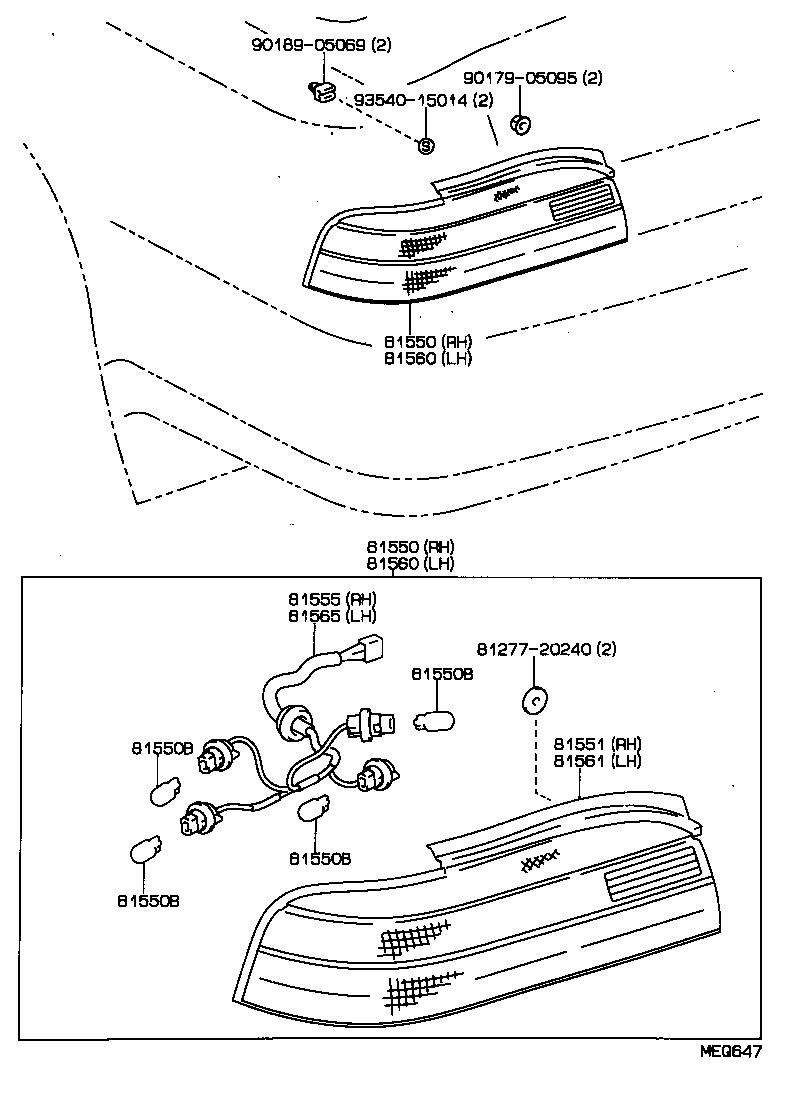

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32270 |
CV30,SV3#..HT |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32270 |
CV30,SV3#..HT |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#,VZV3#..HT 12V 21/5W |
4 | ||
| 90981-13050 |
CV30,SV3#..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#,VZV3#..HT 12V 21/5W |
4 | ||
| 90981-13050 |
CV30,SV3#..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#,VZV3#..HT 12V 21/5W |
4 | ||
| 90981-13050 |
CV30,SV3#..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#,VZV3#..HT 12V 21/5W |
4 | ||
| 90981-13050 |
CV30,SV3#..HT 12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-32270 |
CV30,SV3#..HT |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-32270 |
CV30,SV3#..HT |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32270 |
CV30,SV3#..HT |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32270 |
CV30,SV3#..HT |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-32270 |
CV30,SV3#..HT |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-32270 |
CV30,SV3#..HT |
1 | ||
| Common parts | ||||
| 81277-20240 | ||||
| 90179-05095 | ||||
| 90189-05069 | ||||
| 93540-15014 | ||||
