CV30-BEPEX (1990)
Toyota Camry/Vista

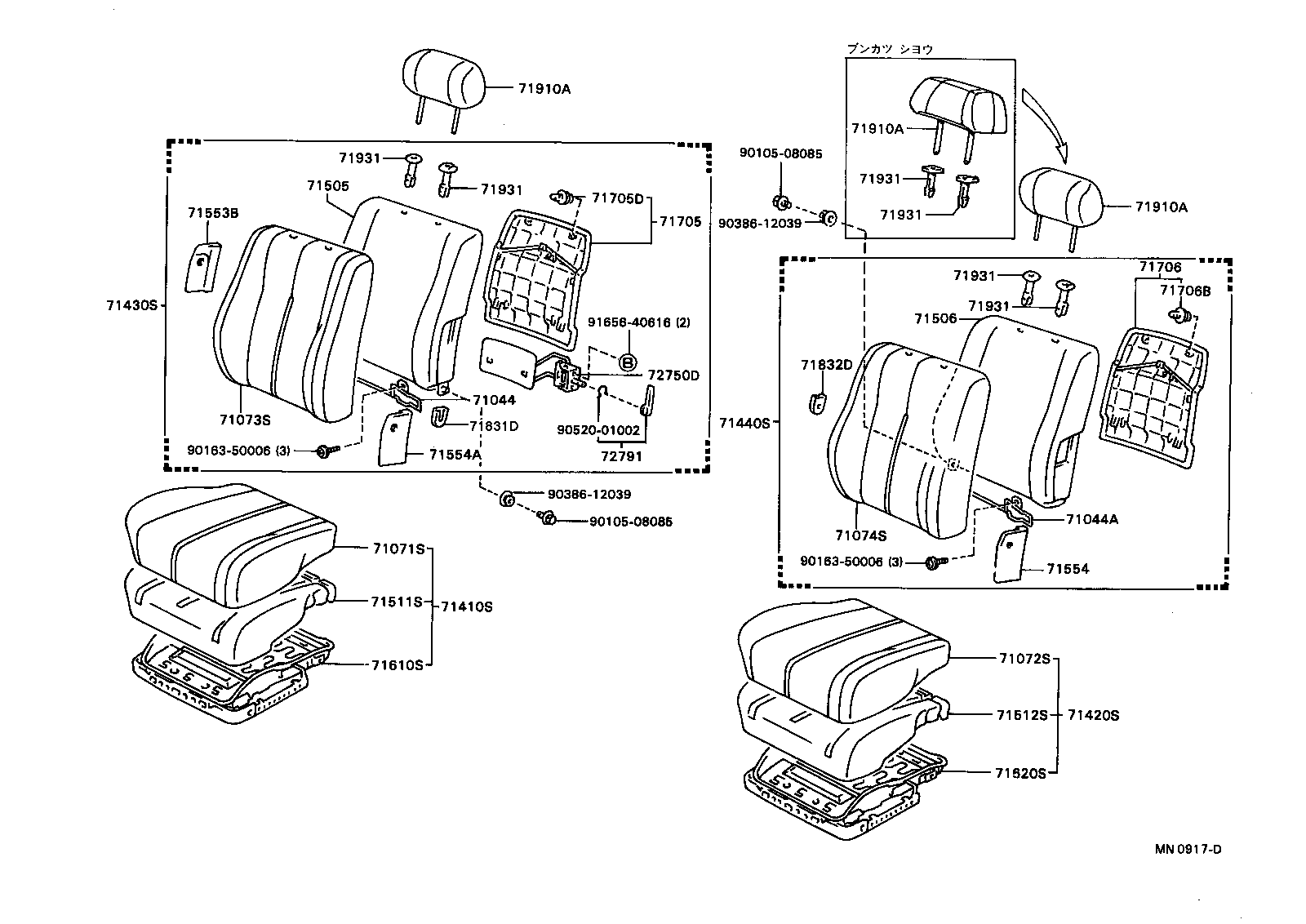

ILLUST NO. 1 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71044 - WIRE SUB-ASSY, FRONT SEAT BACK, LOWER RH | ||||
| 71044-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 71044A - WIRE SUB-ASSY, FRONT SEAT BACK, LOWER LH | ||||
| 71044-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3H13002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71071-3H13003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3H14003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-3H14002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3280003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3280002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3250003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3250002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3H02002 |
CV30,SV3#..VR,VX,ZE,ZX ***,TAUPE,TRIM9# |
1 | ||
| 71410-3H02003 |
CV30,SV3#..VR,VX,ZE,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3H02002 |
CV30,SV3#..VR,VX,ZE,ZX ***,TAUPE,TRIM9# |
1 | ||
| 71420-3H02003 |
CV30,SV3#..VR,VX,ZE,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3276003 |
CV30,SV3#..VR,VX,ZE,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3276002 |
CV30,SV3#..VR,VX,ZE,ZX ***,TAUPE,TRIM9# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3263003 |
CV30,SV3#..VR,VX,ZE,ZX ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-3263002 |
CV30,SV3#..VR,VX,ZE,ZX ***,TAUPE,TRIM9# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-32020 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-32010 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32140 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32140 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 71554A - PAD, FRONT SEAT BACK, CENTER | ||||
| 71554-32030 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32100 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3227002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71705-3227003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71705D - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-32011 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 71769-33010 |
CV30,SV3#..GT,VR,VX,ZE,ZX |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3227003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-3227002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-33010 |
CV30,SV3#..GT,VR,VX,ZE,ZX |
2 | ||
| 71769-32011 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
CV30,SV3#,VZV3# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
CV30,SV3#,VZV3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3251003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3251002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3251003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3251002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3251003 |
CV30,SV3#..VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3251002 |
CV30,SV3#..VR,VX,ZE,ZX TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201003 |
CV30,SV3#,VZV3# ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-3201002 |
CV30,SV3#,VZV3# ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-32040 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 72791-22020B0 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90163-50006 | ||||
| 90386-12039 | ||||
| 90520-01002 | ||||
| 91656-40616 | ||||

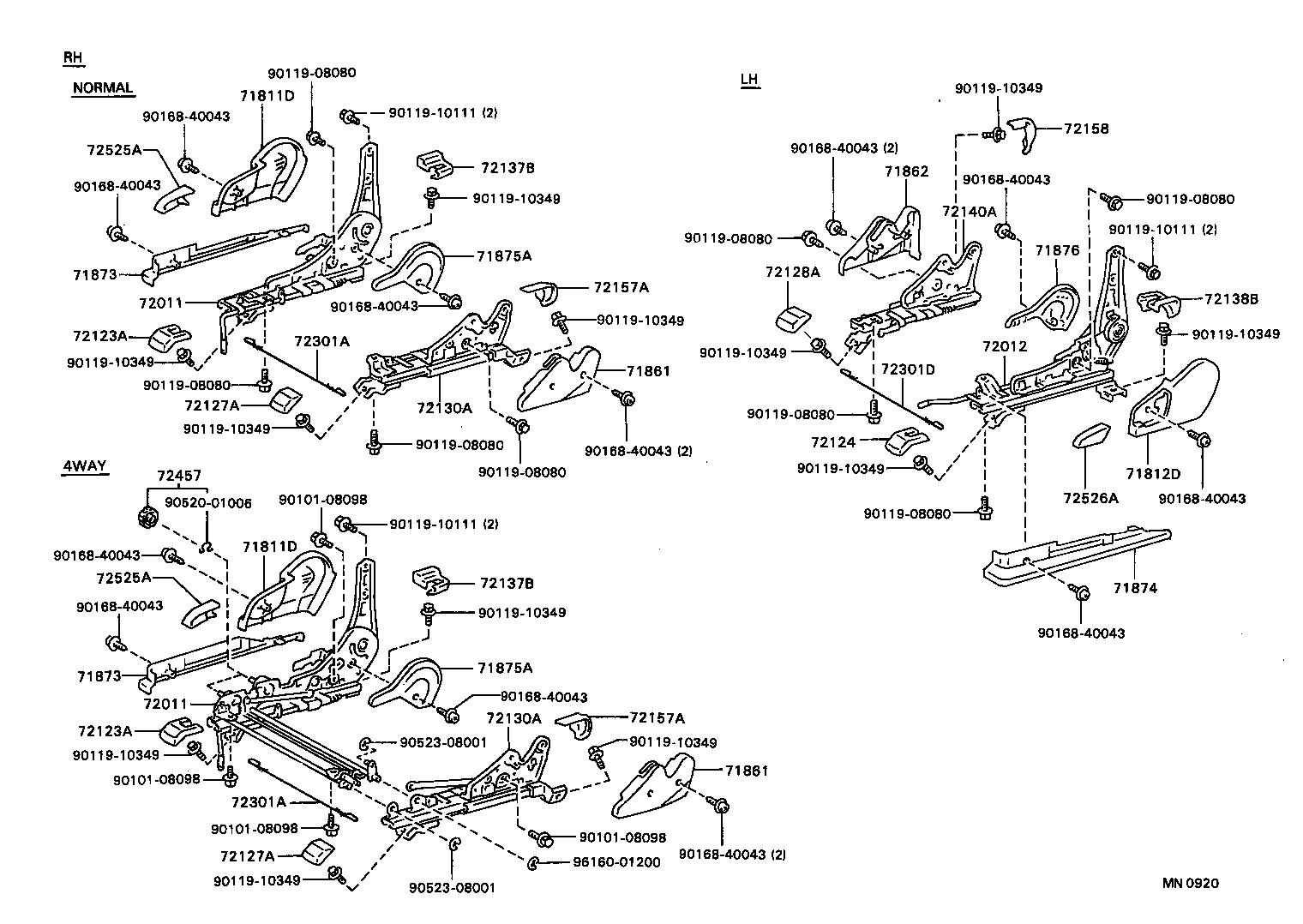

ILLUST NO. 2 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3209002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71811-3209003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3209002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71811-3209003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3210003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3210002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3206002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71861-3206003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3206002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71861-3206003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3207002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71862-3207003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-3202002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71873-3202003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-3202002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 71873-3202003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71874-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71875-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 71875-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 71876-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32050 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32050 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-32040 |
CV30,SV3#,VZV3# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72123-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72123-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72127-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-32040 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-32040 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3203002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72137-3203003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3203002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72137-3203003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72157-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-3202003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72158-3202002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-2202032 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72525-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 72525-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3201003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-3201002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
