Toyota Camry/vista CV30 MANIFOLD

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-64030	2CT..CV30	07/1990 - 06/1994	1
04176 - SEAL KIT, TURBOCHARGER
04176-70011	2CT..CV30	07/1990 - 06/1994	1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-64030	2CT..CV30	07/1990 - 06/1994	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27002	2CT..CV30 NO.2	07/1990 - 06/1994	1
90401-10006	2CT..CV30 NO.1	07/1990 - 06/1994	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27002	2CT..CV30 NO.2	07/1990 - 06/1994	1
90401-10006	2CT..CV30 NO.1	07/1990 - 06/1994	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2CT..CV30 NO.1	07/1990 - 02/1993	2
90430-10027	2CT..CV30 NO.1	02/1993 - 06/1994	2
90210-27001	2CT..CV30 NO.2	07/1990 - 06/1994	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2CT..CV30 NO.1	07/1990 - 02/1993	2
90430-10027	2CT..CV30 NO.1	02/1993 - 06/1994	2
90210-27001	2CT..CV30 NO.2	07/1990 - 06/1994	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2CT..CV30 NO.1	07/1990 - 02/1993	2
90430-10027	2CT..CV30 NO.1	02/1993 - 06/1994	2
90210-27001	2CT..CV30 NO.2	07/1990 - 06/1994	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2CT..CV30 NO.1	07/1990 - 02/1993	2
90430-10027	2CT..CV30 NO.1	02/1993 - 06/1994	2
90210-27001	2CT..CV30 NO.2	07/1990 - 06/1994	2
15471 - GASKET, TURBO OIL INLET
15471-54010	2CT..CV30	07/1990 - 08/1990	1
16347C - GASKET(FOR TURBO WATER PIPE)
16347-42020	2CT..CV30	07/1990 - 06/1994	1
17021 - HOUSING SUB-ASSY, BEARING
17021-11010	2CT..CV30	07/1990 - 06/1994	1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-06048	2CT..CV30 NO.1	07/1990 - 06/1994	2
90116-08158	2CT..CV30 NO.2	07/1990 - 06/1994	2
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-06048	2CT..CV30 NO.1	07/1990 - 06/1994	2
90116-08158	2CT..CV30 NO.2	07/1990 - 06/1994	2
17021C - RING, HOLE SNAP(FOR BEARING HOUSING)
90521-99035	2CT..CV30	07/1990 - 06/1994	1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08200	2CT..CV30	07/1990 - 06/1994	4
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10148	2CT..CV30	07/1990 - 06/1994	4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	2CT..CV30	07/1990 - 06/1992	3
90126-10003	2CT..CV30	07/1993 - 03/1994	3
90116-10058	2CT..CV30	06/1992 - 07/1993	3
90116-10146	2CT..CV30	03/1994 - 06/1994	3
17201 - TURBOCHARGER SUB-ASSY
17201-64060	2CT..CV30	07/1990 - 06/1994	1
17224 - HOUSING, COMPRESSOR
17224-64030	2CT..CV30	07/1990 - 08/1993	1
17224-64031	2CT..CV30	08/1993 - 06/1994	1
17224A - UNION(FOR COMPRESSOR HOUSING)
90404-51040	2CT..CV30	07/1990 - 06/1994	1
17229 - BAND, V
17229-70010	2CT..CV30	07/1990 - 06/1994	1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-69055	2CT..CV30	07/1990 - 06/1994	1
17239 - CLAMP, V, NO.2
17239-70010	2CT..CV30	07/1990 - 06/1994	1
17271 - INSULATOR, TURBO, NO.1
17271-64041	2CT..CV30	07/1990 - 06/1992	1
17271-64042	2CT..CV30	06/1992 - 06/1994	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-64030	2CT..CV30	07/1990 - 06/1994	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-11010	2CT..CV30	07/1990 - 03/1993	1
17279-55011	2CT..CV30	03/1993 - 06/1994	1
17291 - ELBOW, TURBINE OUTLET
17291-64042	2CT..CV30	06/1992 - 06/1994	1
17291-64041	2CT..CV30	07/1990 - 06/1992	1
17293 - STAY, TURBOCHARGER
17293-64030	2CT..CV30	07/1990 - 06/1992	1
17293-64031	2CT..CV30	06/1992 - 06/1994	1
17294 - HOSE, ACTUATOR
17294-28010	2CT..CV30	07/1990 - 06/1994	1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100	2CT..CV30	07/1990 - 06/1994	2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100	2CT..CV30	07/1990 - 06/1994	2
17296 - PLATE, BEARING HOUSING, SIDE
17296-28010	2CT..CV30	07/1990 - 06/1994	1
17341H - HOSE, AIR
17341-64050	2CT..CV30	07/1990 - 06/1994	1
17341J - CLAMP, HOSE
90460-50002	2CT..CV30 NO.1	12/1993 - 06/1994	1
90460-65004	2CT..CV30 NO.2	07/1990 - 06/1994	1
90460-50001	2CT..CV30 NO.1	07/1990 - 12/1993	1
17341J - CLAMP, HOSE
90460-50002	2CT..CV30 NO.1	12/1993 - 06/1994	1
90460-65004	2CT..CV30 NO.2	07/1990 - 06/1994	1
90460-50001	2CT..CV30 NO.1	07/1990 - 12/1993	1
Common parts
90116-08068
90119-08374
90119-08553
90119-10108
90179-08012
90179-08101
90179-10094
90254-03013
90523-04002
91621-60818
91651-60616
94180-40800

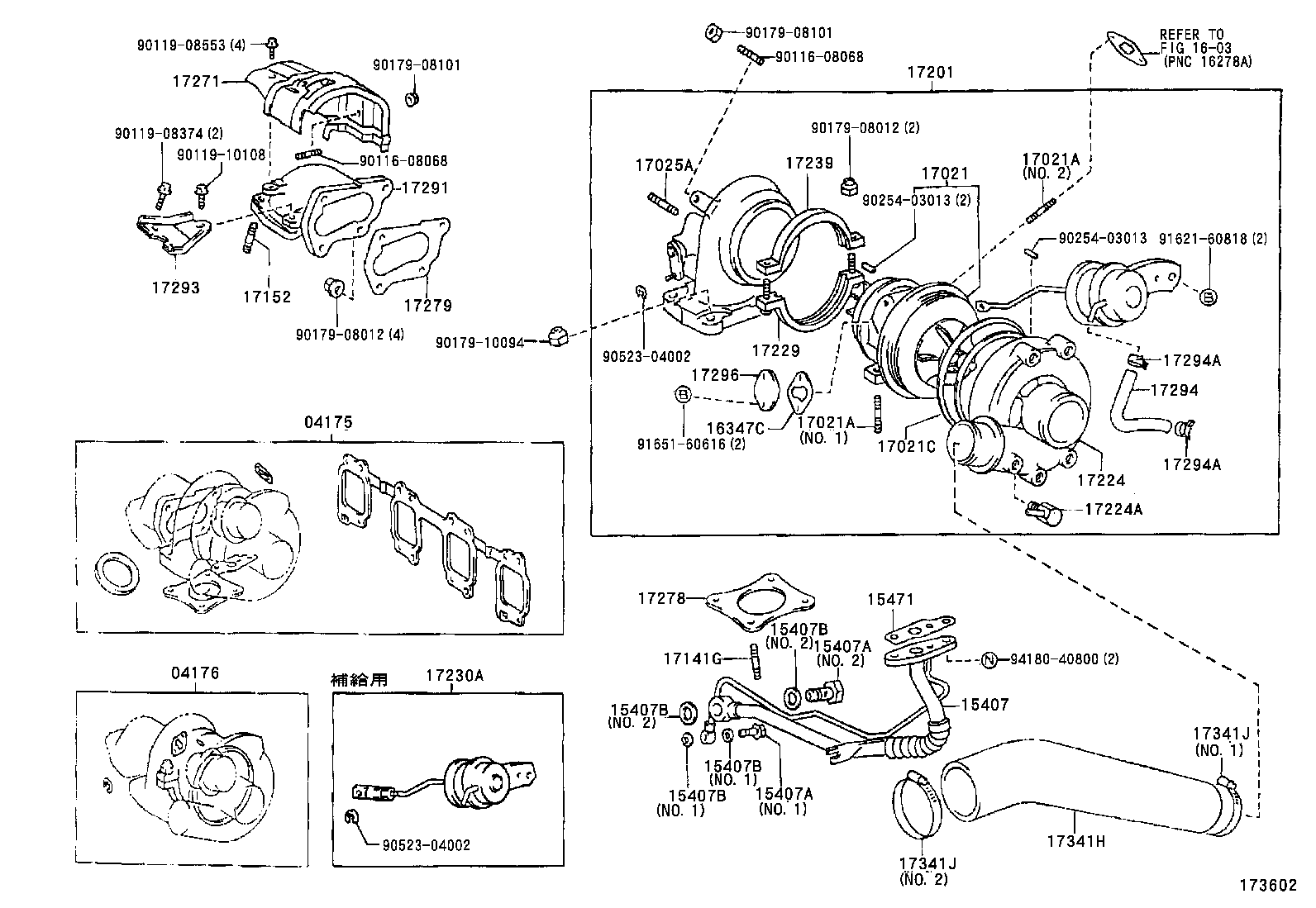

Linked diagrams
1603

CV30-BEMGX (1992)

(9206- )2CT
