CV30-BEMEX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

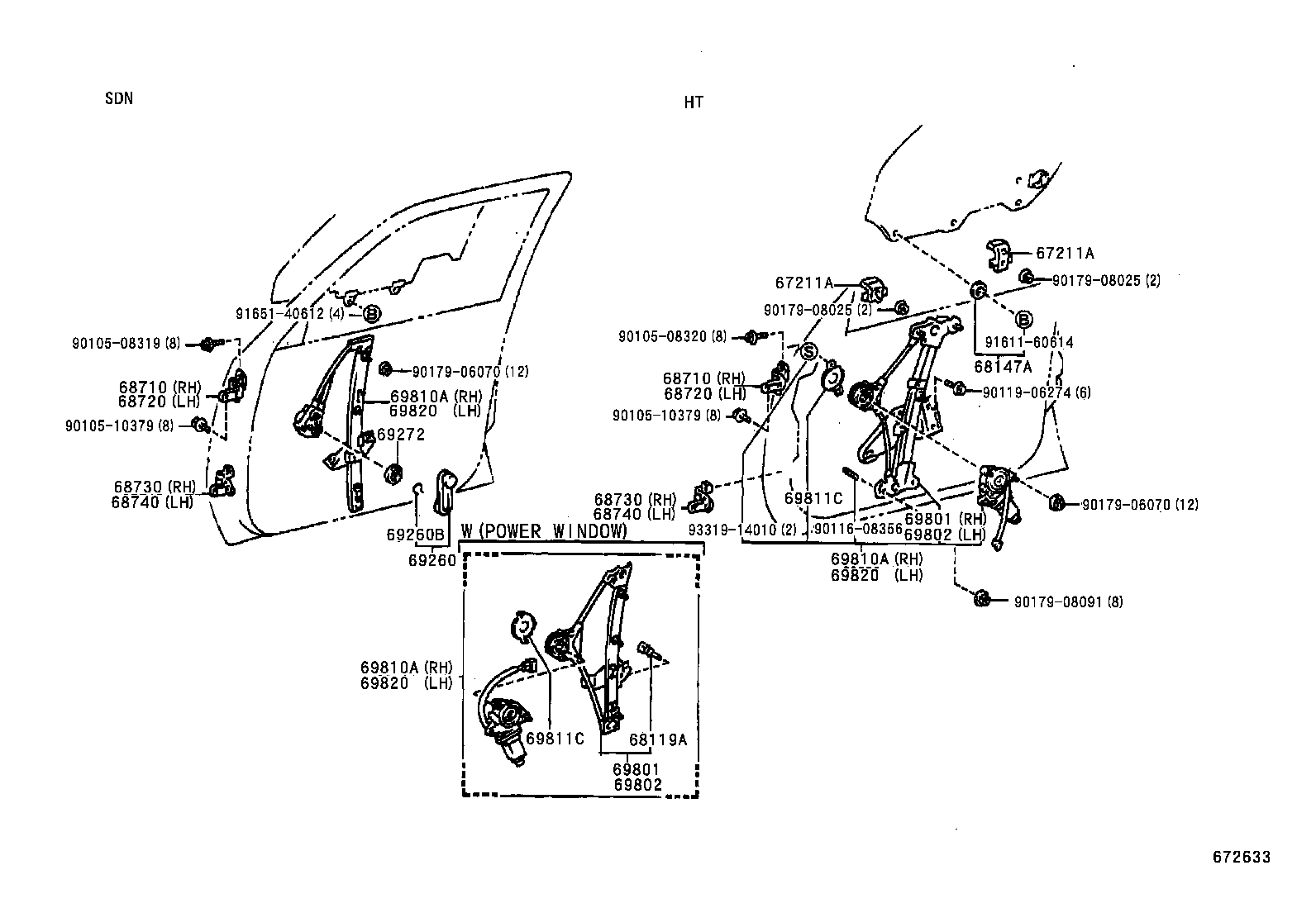

Click highlighted areas on diagram

diagram 67211A 67211A 68119A 68147A 68710 68710 68720 68720 68730 68730 68740 68740 69260 69260B 69272 69801 69801 69802 69802 69810A 69810A 69810A 69811C 69811C 69820 69820 69820 9010508319 9010508320 9010510379 9010510379 9011608356 9011906274 9017906070 9017906070 9017908025 9017908025 9017908091 9161160614 9165140612 9331914010
Part # Description Qty Price
68119A - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1
69887-33010

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 2
69888-33011

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32040

CV30,SV3#..SED

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32040

CV30,SV3#..SED

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32040

CV30,SV3#..SED

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32040

CV30,SV3#..SED

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-32030

CV30,SV3#..SED

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-32030

CV30,SV3#..SED

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68730-32030

CV30,SV3#..SED

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68730-32030

CV30,SV3#..SED

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32060

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32060

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-32040

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 2
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-32040

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 2
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-32110

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

 1
Common parts
90105-08319
90105-08320
90105-10379
90116-08356
90119-06274
90179-06070
90179-08025
90179-08091
91611-60614
91651-40612
93319-14010
