CV30-AEPGX (1992)
Toyota Camry/Vista

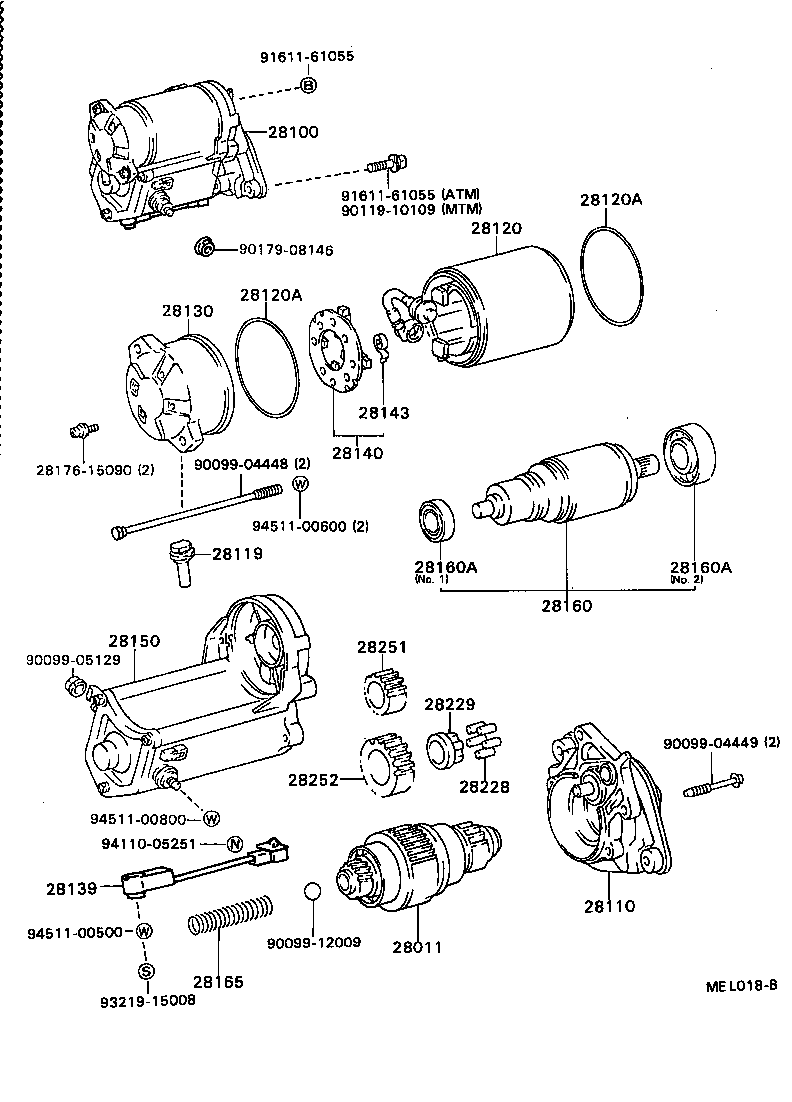

ILLUST NO. 1 OF 2(9007-9406)2CT
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2CT..CV30 |
1 | ||
| 28011-64130 |
2CT..CV30 |
1 | ||
| 28011-64010 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64120 |
2CT..CV30 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64170 |
2CT..CV30 12V 1.4KW |
1 | ||
| 28100-64210 |
2CT..CV30 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64200 |
2CT..CV30 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-64070 |
2CT..CV30 |
1 | ||
| 28115-64210 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-64200 |
2CT..CV30 |
1 | ||
| 28115-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28199-46080 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 28199-15090 |
2CT..CV30 |
1 | ||
| 28199-74110 |
2CT..CV30 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
2CT..CV30 |
1 | ||
| 28120-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-64130 |
2CT..CV30 |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2CT,3SGE..CV30,SV32,33 |
2 | ||
| 90099-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2CT,3SGE..CV30,SV32,33 |
2 | ||
| 90099-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15090 |
2CT..CV30 |
1 | ||
| 28130-64130 |
2CT..CV30 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64120 |
2CT..CV30 |
1 | ||
| 28139-64130 |
2CT..CV30 |
1 | ||
| 28139-64140 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2CT..CV30 |
1 | ||
| 28140-64130 |
2CT..CV30 |
1 | ||
| 28140-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 90099-17112 |
2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
4 | ||
| 90099-17112 |
2CT,4VZFE..CV30,VZV3# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64070 |
2CT..CV30 |
1 | ||
| 28150-64200 |
2CT..CV30 |
1 | ||
| 28150-64210 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2CT..CV30 |
1 | ||
| 28160-64041 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-15091 |
2CT..CV30 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
2CT..CV30 NO.1 |
1 | ||
| 90099-10143 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,2 |
1 | ||
| 90099-10197 |
2CT..CV30 NO,1 |
1 | ||
| 90099-10196 |
2CT..CV30 NO,2 |
1 | ||
| 90099-10143 |
2CT..CV30 NO.2 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,1 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
2CT..CV30 NO.1 |
1 | ||
| 90099-10143 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,2 |
1 | ||
| 90099-10197 |
2CT..CV30 NO,1 |
1 | ||
| 90099-10196 |
2CT..CV30 NO,2 |
1 | ||
| 90099-10143 |
2CT..CV30 NO.2 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,1 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2CT..CV30 |
1 | ||
| 28165-76070 |
2CT..CV30 |
1 | ||
| 28165-26040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
5 | ||
| 28228-26040 |
2CT,4VZFE..CV30,VZV3# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2CT..CV30 |
1 | ||
| 28229-26040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
2CT,3SFE,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
2CT..CV30 |
1 | ||
| 28251-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2CT,3SFE,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
1 | ||
| 28254-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28254-64130 |
2CT..CV30 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10109 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 93219-15008 | ||||
| 94110-05251 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

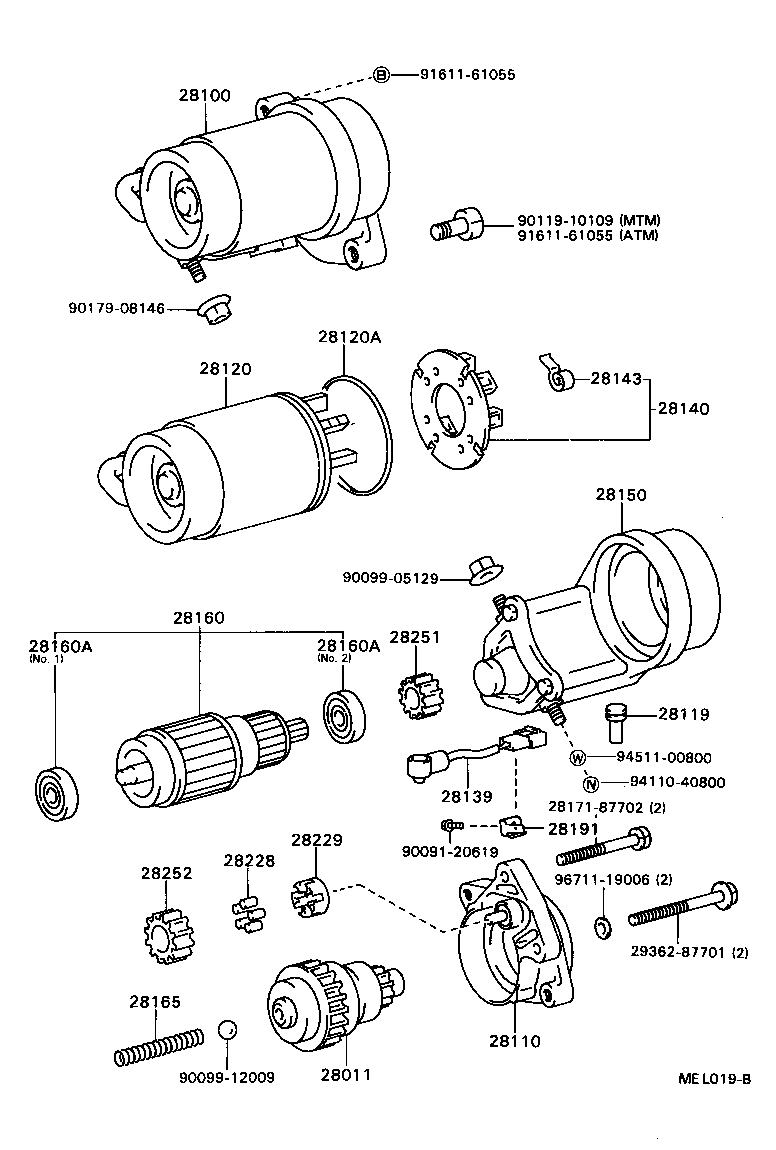

ILLUST NO. 1 OF 2(9007-9406)2CT
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2CT..CV30 |
1 | ||
| 28011-64130 |
2CT..CV30 |
1 | ||
| 28011-64010 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64120 |
2CT..CV30 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64170 |
2CT..CV30 12V 1.4KW |
1 | ||
| 28100-64210 |
2CT..CV30 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64200 |
2CT..CV30 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-64070 |
2CT..CV30 |
1 | ||
| 28115-64210 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-64200 |
2CT..CV30 |
1 | ||
| 28115-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28199-46080 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 28199-15090 |
2CT..CV30 |
1 | ||
| 28199-74110 |
2CT..CV30 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
2CT..CV30 |
1 | ||
| 28120-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-64130 |
2CT..CV30 |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2CT,3SGE..CV30,SV32,33 |
2 | ||
| 90099-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64120 |
2CT..CV30 |
1 | ||
| 28139-64130 |
2CT..CV30 |
1 | ||
| 28139-64140 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2CT..CV30 |
1 | ||
| 28140-64130 |
2CT..CV30 |
1 | ||
| 28140-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 90099-17112 |
2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
4 | ||
| 90099-17112 |
2CT,4VZFE..CV30,VZV3# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64070 |
2CT..CV30 |
1 | ||
| 28150-64200 |
2CT..CV30 |
1 | ||
| 28150-64210 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2CT..CV30 |
1 | ||
| 28160-64041 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-15091 |
2CT..CV30 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
2CT..CV30 NO.1 |
1 | ||
| 90099-10143 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,2 |
1 | ||
| 90099-10197 |
2CT..CV30 NO,1 |
1 | ||
| 90099-10196 |
2CT..CV30 NO,2 |
1 | ||
| 90099-10143 |
2CT..CV30 NO.2 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,1 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
2CT..CV30 NO.1 |
1 | ||
| 90099-10143 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,2 |
1 | ||
| 90099-10197 |
2CT..CV30 NO,1 |
1 | ||
| 90099-10196 |
2CT..CV30 NO,2 |
1 | ||
| 90099-10143 |
2CT..CV30 NO.2 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO,1 |
1 | ||
| 28253-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2CT..CV30 |
1 | ||
| 28165-76070 |
2CT..CV30 |
1 | ||
| 28165-26040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28182-64130 |
2CT..CV30 |
1 | ||
| 28182-64140 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
5 | ||
| 28228-26040 |
2CT,4VZFE..CV30,VZV3# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2CT..CV30 |
1 | ||
| 28229-26040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
2CT,3SFE,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
2CT..CV30 |
1 | ||
| 28251-54070 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2CT,3SFE,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3# |
1 | ||
| 28254-64040 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28254-64130 |
2CT..CV30 |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90091-20619 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10109 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
ILLUST NO. 2 OF 2(9206-9406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76100 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2CT..CV30 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
