CV30-AEPEX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

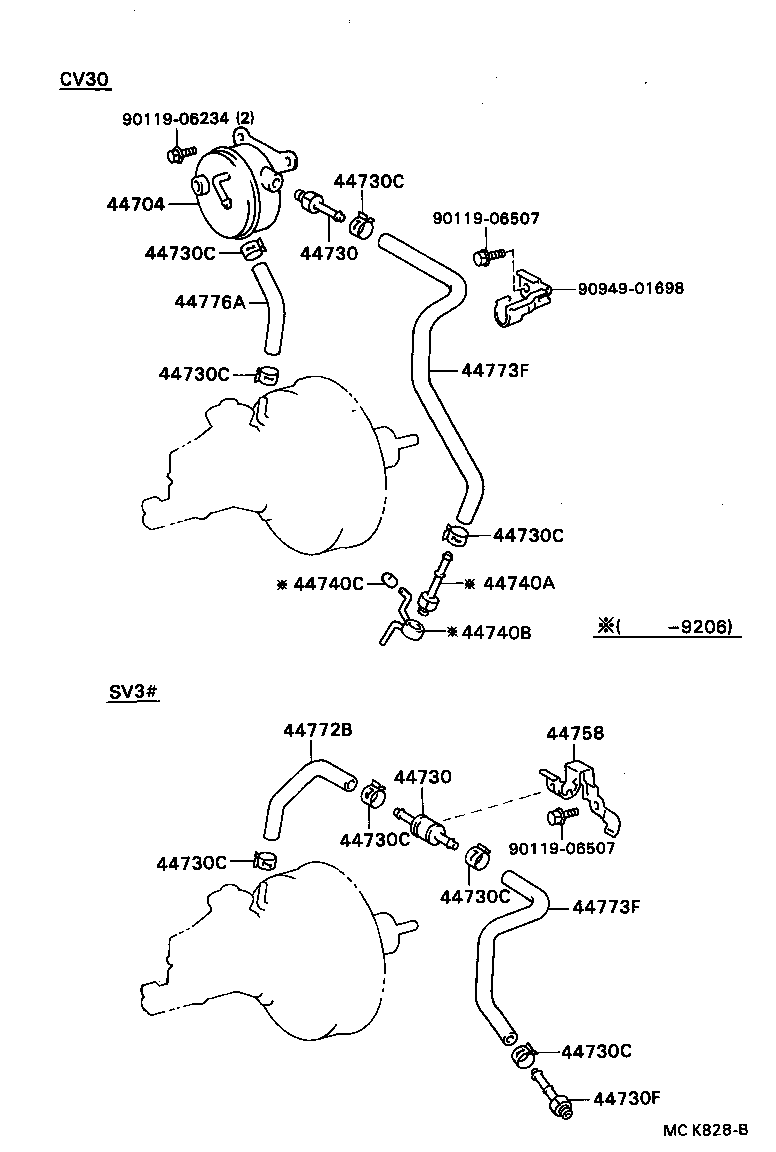

ILLUST NO. 2 OF 2(9007- )CV30,SV3#

Click highlighted areas on diagram

diagram 44704 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44740A 44740B 44740C 44758 44772B 44773F 44773F 44776A 9011906234 9011906507 9011906507 9094901698
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-32050

CV30

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CV30

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CV30

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44740A - UNION, NO.1(FOR VACUUM PUMP)
90404-09006

CV30

 1
44740B - UNION, NO.2(FOR VACUUM PUMP)
90405-04003

CV30

 1
44740C - PLUG(FOR UNION)
90339-03005

CV30

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32160

CV30

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32160

CV30

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-32050

CV30

 1
Common parts
90119-06234
90119-06507
90949-01698

ILLUST NO. 1 OF 2(9007- )

Click highlighted areas on diagram

diagram 44610 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-32370

CV30

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV30,SV3#,VZV3#

 1
Common parts
90179-08038
