CV30-AEMMX (1992)

Toyota Camry/Vista

Production Jun 1992 - Jun 1994
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)CV30

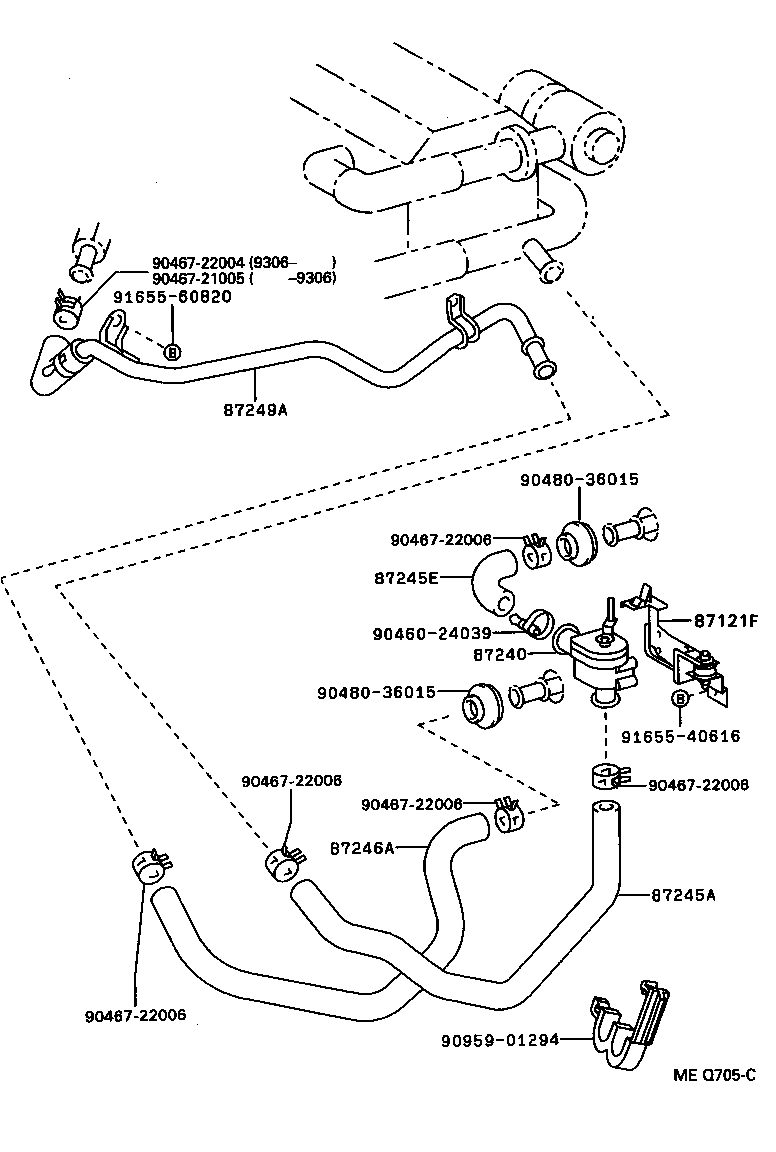

Click highlighted areas on diagram

diagram 87121F 87240 87245A 87245E 87246A 87249A 9046024039 9046721005 9046722004 9046722006 9046722006 9046722006 9046722006 9046722006 9048036015 9048036015 9095901294 9165540616 9165560820
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-32010

CV30,SV3#,VZV3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-32040

CV30,SV3#,VZV3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32240

CV30

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32210

CV30,SV3#,VZV3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32230

CV30

 1
87249A - PIPE, HEATER WATER OUTLET, A
87209-32030

CV30

 1
Common parts
90460-24039
90467-21005
90467-22004
90467-22006
90480-36015
90959-01294
91655-40616
91655-60820
