Toyota Camry/vista CV30 WIRING & CLAMP

CV30-AEMGX (1992)

Toyota Camry/Vista

Production Jun 1992 - Jun 1994

Engine 2CT

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(9007-9406)

Click highlighted areas on diagram

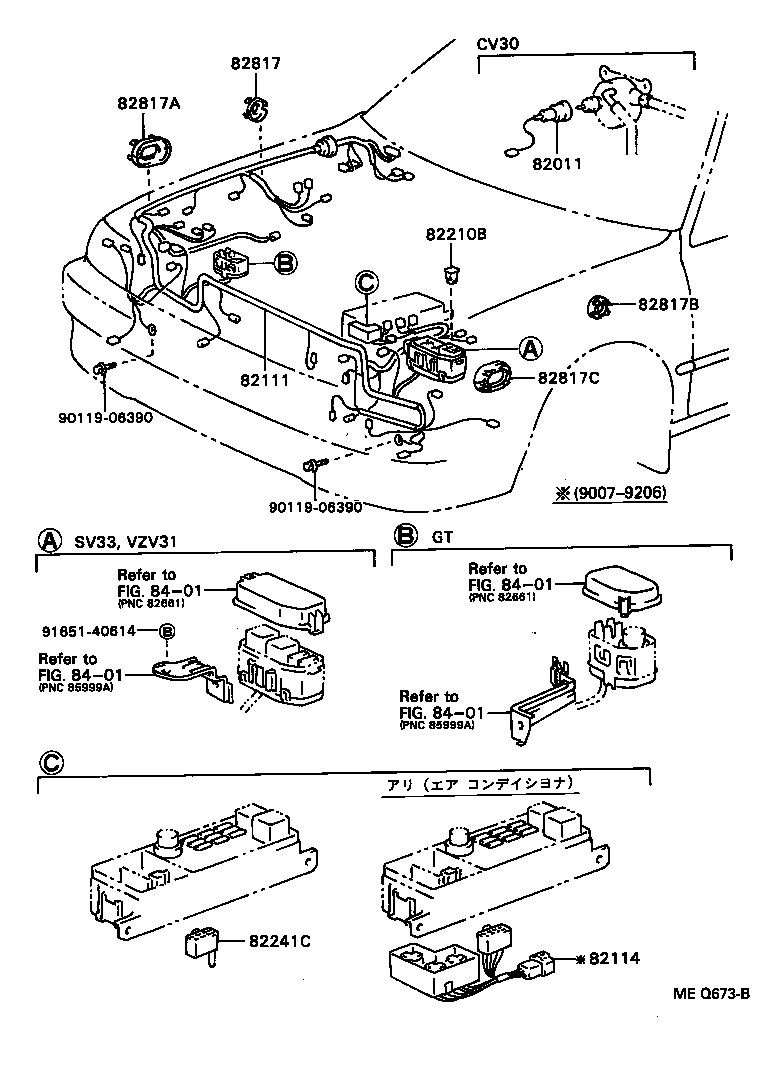

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-20040	CV30	07/1990 - 06/1992	1
82111 - WIRE, ENGINE ROOM MAIN
82111-32680	CV30	07/1990 - 10/1990	1
82111-32820	CV30	06/1992 - 06/1994	1
82210B - FUSIBLE LINK
90982-08190	CV30 60A,ﾒｽ端子,黄	06/1992 - 06/1994	1
82241C - WIRE, RELAY
82241-32040	CV30,SV3#,VZV3# NO.1 JUNCTION BLOCK	07/1990 - 06/1992	1
82241-32040	CV30,VZV3#	06/1992 - 06/1994	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B730	CV30,SV3#,VZV3#	07/1990 - 01/1991	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32730	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2B730	CV30,SV3#,VZV3#	07/1990 - 01/1991	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-32760	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
Common parts
90119-06390
91651-40614
Linked diagrams
8401

ILLUST NO. 2 OF 8(9007-9406)CV30

Click highlighted areas on diagram

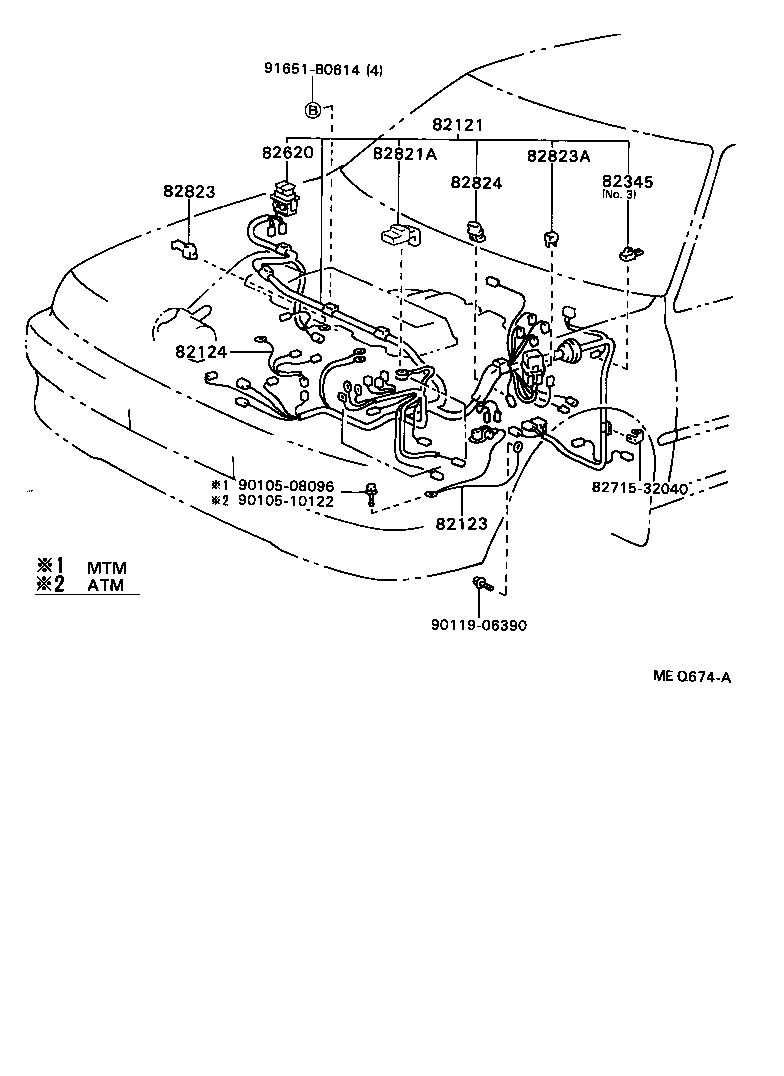

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-3H440	CV30..5F	07/1990 - 06/1992	1
82121-3H630	CV30..5F	06/1992 - 06/1994	1
82123 - WIRE, ENGINE, NO.3
82123-32150	CV30	07/1990 - 06/1994	1
82124 - WIRE, ENGINE, NO.4
82124-32020	CV30	07/1990 - 06/1994	1
82345 - DIODE
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-32010	CV30..VX,ZX ｱﾘ(*WDL)	07/1990 - 06/1993	1
82345-20040	SV35..ETO,LUM;CV30,SV30..VL,VX,XT,ZX;SV32,33..5F..(ETO,LUM) COWL,NO.2	06/1992 - 06/1994	1
82345-32010	CV30..VX,ZX ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30030	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82821A - COVER, CONNECTOR
82821-32110	CV30,SV3#,VZV3# YAZAKI	07/1990 - 06/1994	1
82823 - CAP, TERMINAL, NO.1
82823-20040	CV30	07/1990 - 06/1994	1
82823A - CAP, TERMINAL, NO.2
82823-50020	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	CV30,SV3#	07/1990 - 06/1992	1
Common parts
82715-32040
90105-08096
90105-10122
90119-06390
91651-B0614

ILLUST NO. 3 OF 8(9007-9406)

Click highlighted areas on diagram

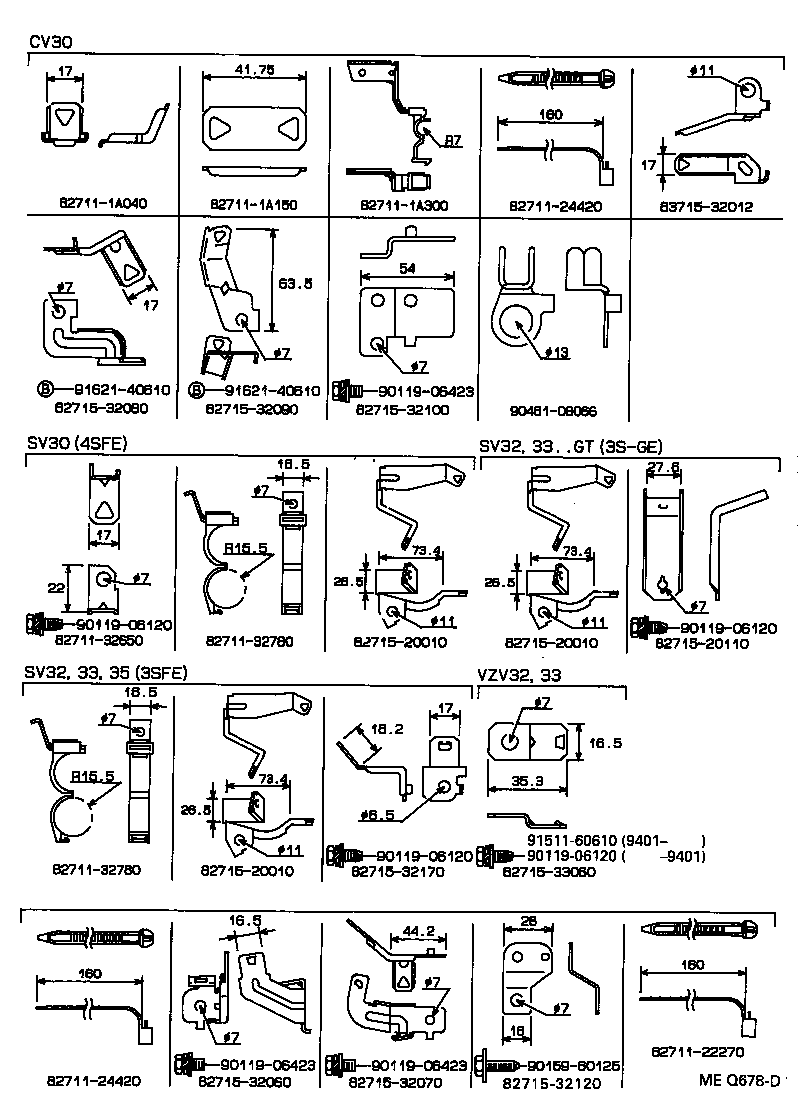

ENGINE WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1A150
82711-1A300
82711-22270
82711-24420
82711-32780
82711-82650
82715-20010
82715-20110
82715-32060
82715-32070
82715-32080
82715-32090
82715-32100
82715-32120
82715-32170
82715-33060
83715-32012
90119-06120
90119-06423
90159-60125
90461-08066
91511-60610
91621-40610

ILLUST NO. 4 OF 8(9007-9406)

Click highlighted areas on diagram

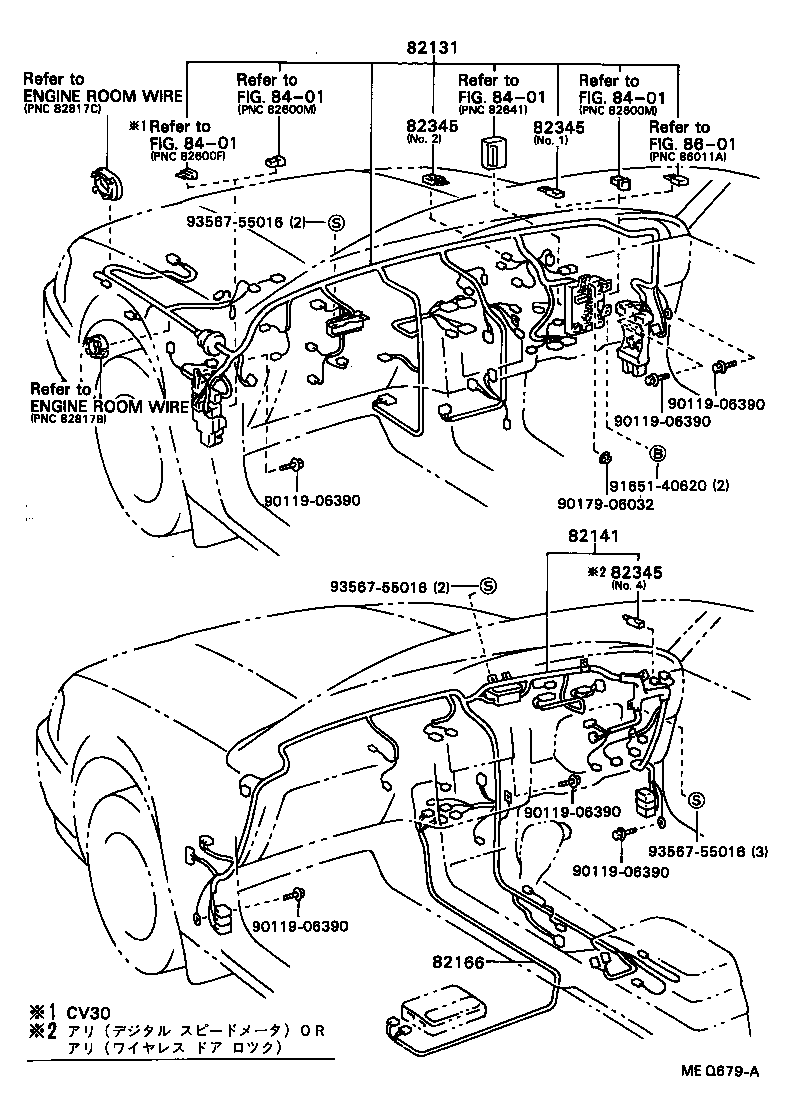

COWL,INSTRUMENT & CONSOLE WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-3P460	CV30..VX,ZX	06/1992 - 07/1993	1
82131-3P461	CV30..VX,ZX	07/1993 - 06/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-32570	CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	07/1990 - 05/1991	1
82141-32550	CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX)	07/1990 - 05/1991	1
82141-32720	CV30,SV32,33,35..5F..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1992 - 06/1993	1
82141-32740	CV30,SV32,33,35..5F..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ- & *WDL)	06/1992 - 06/1993	1
82141-32680	CV30,SV3#..5F..(VR,VX,ZE,ZX)	06/1992 - 06/1993	1
82141-32700	CV30,SV3#..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1992 - 06/1993	1
82141-32700	CV30,SV30,35..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL)	06/1993 - 07/1993	1
82141-32740	CV30,SV35..5F..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ- & WDL) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ- & ｸﾘｱﾗﾝｽｿﾅ-);ｱﾘ(88 & ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 07/1993	1
82141-32681	CV30,SV30,32,35..5F..(VR,VX,ZE,ZX)	06/1993 - 06/1994	1
82141-32701	CV30,SV30,35..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL)	07/1993 - 06/1994	1
82141-32741	CV30,SV35..5F..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ- & WDL) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ- & ｸﾘｱﾗﾝｽｿﾅ-);ｱﾘ(88 & ｸﾘｱﾗﾝｽｿﾅ-)	07/1993 - 06/1994	1
82166 - WIRE, CONSOLE BOX
82166-32071	CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX	06/1992 - 12/1992	1
82166-32070	CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(*AF,CD ﾌﾟﾚ-ﾔﾂｷ 2DIN ﾗｼﾞｵ)	07/1990 - 06/1992	1
82166-32071	CV30,SV35..VX,ZX	06/1992 - 06/1994	1
82345 - DIODE
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-32010	CV30..VX,ZX ｱﾘ(*WDL)	07/1990 - 06/1993	1
82345-20040	SV35..ETO,LUM;CV30,SV30..VL,VX,XT,ZX;SV32,33..5F..(ETO,LUM) COWL,NO.2	06/1992 - 06/1994	1
82345-32010	CV30..VX,ZX ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345 - DIODE
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-32010	CV30..VX,ZX ｱﾘ(*WDL)	07/1990 - 06/1993	1
82345-20040	SV35..ETO,LUM;CV30,SV30..VL,VX,XT,ZX;SV32,33..5F..(ETO,LUM) COWL,NO.2	06/1992 - 06/1994	1
82345-32010	CV30..VX,ZX ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345 - DIODE
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-32010	CV30..VX,ZX ｱﾘ(*WDL)	07/1990 - 06/1993	1
82345-20040	SV35..ETO,LUM;CV30,SV30..VL,VX,XT,ZX;SV32,33..5F..(ETO,LUM) COWL,NO.2	06/1992 - 06/1994	1
82345-32010	CV30..VX,ZX ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL) OR ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
Common parts
90119-06390
90179-06032
91651-40620
93567-55016
Linked diagrams
8401
8601

ILLUST NO. 5 OF 8(9007-9406)

Click highlighted areas on diagram

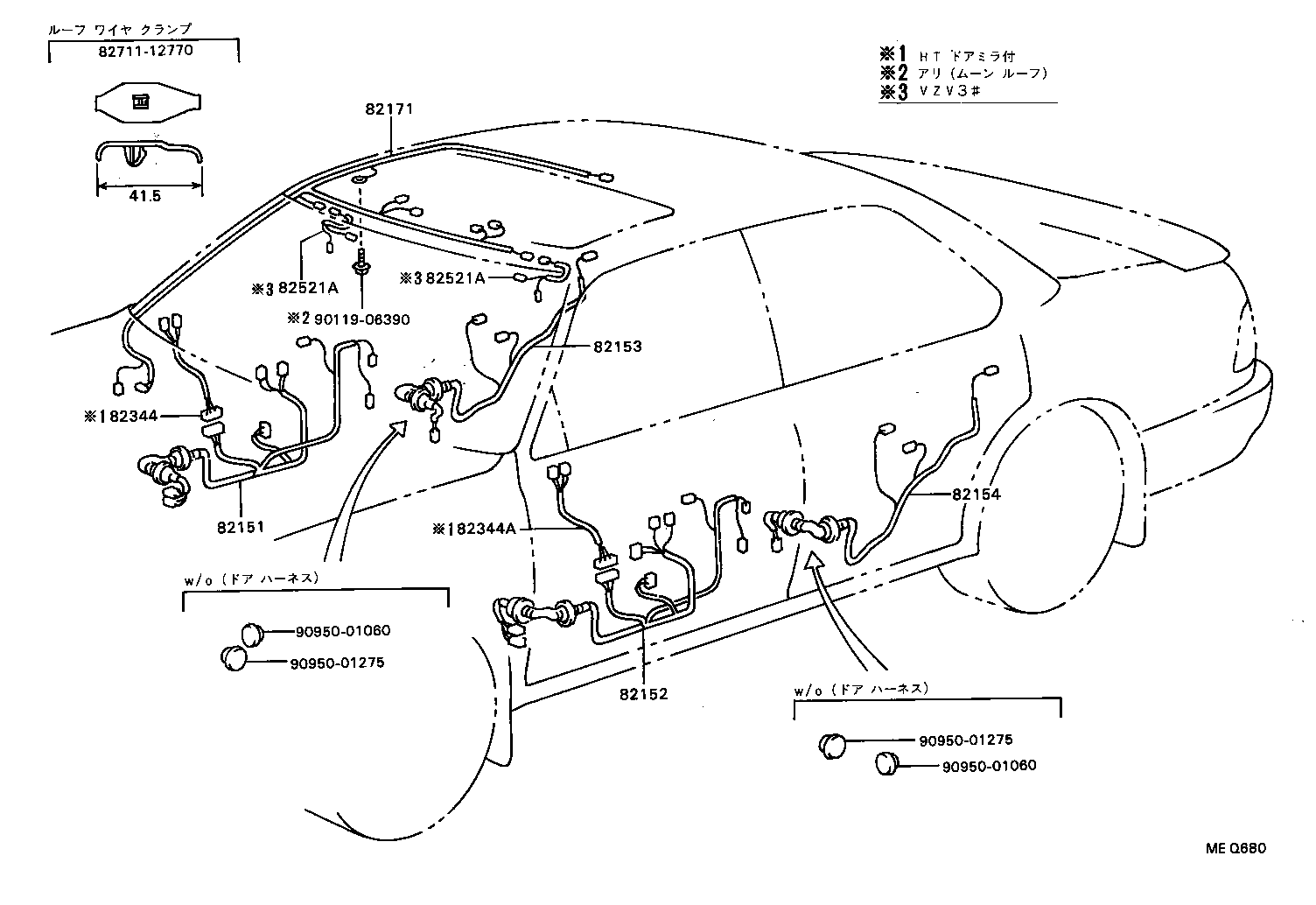

DOOR & FLOOR WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-32762	CV30,SV3#..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82151-32792	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	06/1992 - 06/1994	1
82151-32772	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ---ﾌﾛﾝﾄﾄﾞｱ)	06/1992 - 06/1994	1
82151-32802	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(CDﾂｷﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾐﾗ-)	06/1992 - 06/1994	1
82152 - WIRE, FRONT DOOR, LH
82152-32850	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	06/1992 - 06/1994	1
82152-32840	CV30,SV3#..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82152-32860	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	06/1992 - 06/1994	1
82152-32870	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ｳﾃｷｼﾞﾖｷﾖﾐﾗ-)	06/1992 - 06/1994	1
82153 - WIRE, REAR DOOR, NO.1
82153-32190	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)	07/1990 - 05/1991	1
82153-32191	CV30,SV3#..SED	06/1992 - 06/1994	1
82154 - WIRE, REAR DOOR, NO.2
82154-32140	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)	07/1990 - 05/1991	1
82154-32141	CV30,SV3#..SED	06/1992 - 06/1994	1
82171 - WIRE, ROOF, NO.1
82171-32480	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82171-32490	CV30,SV3#..SED..(GT,LUM,VE,VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	07/1990 - 06/1992	1
82171-32471	CV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82171-32491	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/1992 - 06/1994	1
Common parts
82711-12770
90119-06390
90950-01060
90950-01275

ILLUST NO. 6 OF 8(9007-9406)

Click highlighted areas on diagram

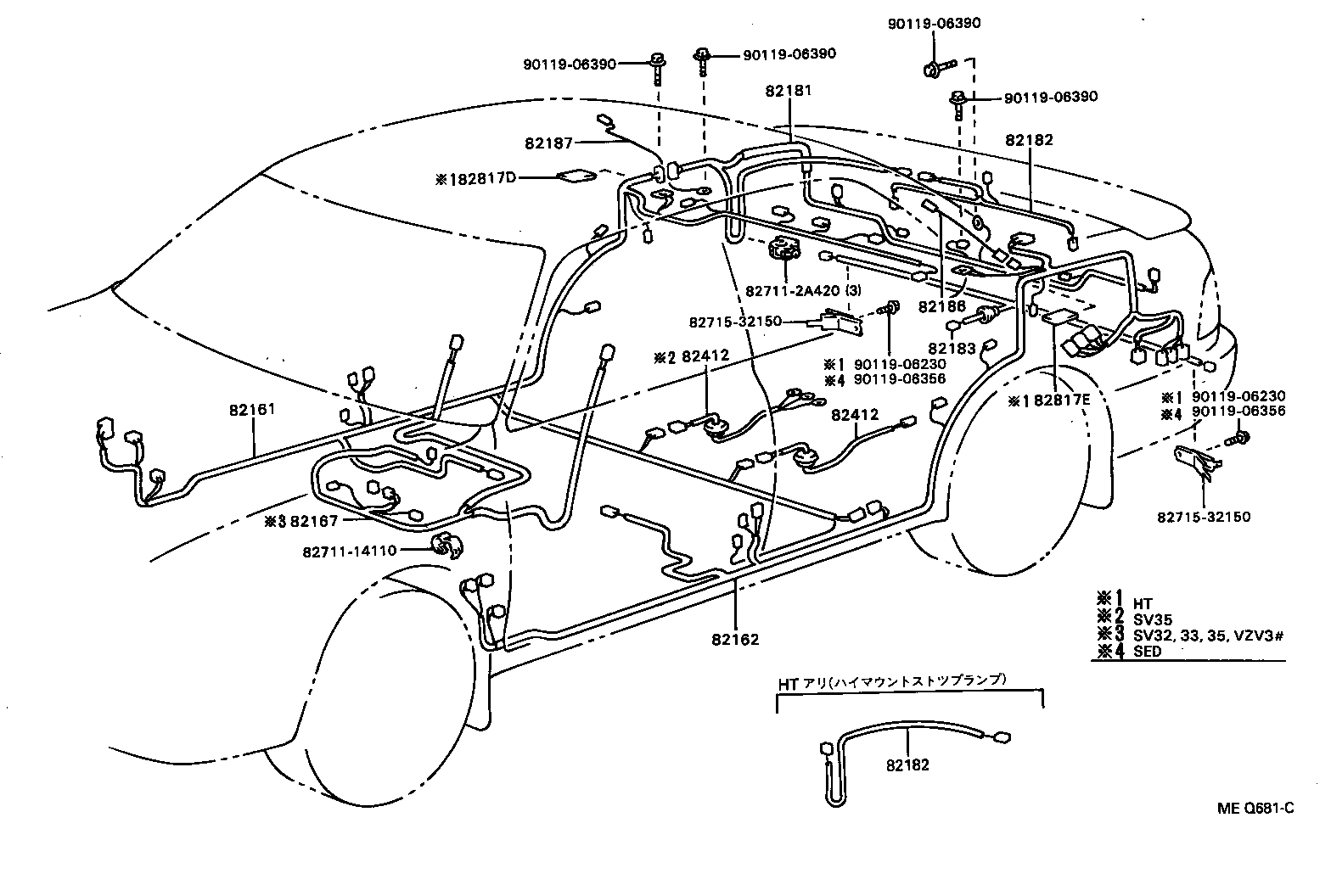

FLOOR & REAR WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-3H400	CV30,SV30,32,33..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82161-3H670	CV30,SV30..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ) OR ｱﾘ(*66)	06/1992 - 02/1994	1
82161-3H660	CV30,SV30,32,33..SED..(VR,VX,ZE,ZX)	06/1992 - 02/1994	1
82161-3H661	CV30,SV30,32,33..SED..(VR,VX,ZE,ZX)	02/1994 - 06/1994	1
82161-3H671	CV30,SV30..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ) OR ｱﾘ(*66)	02/1994 - 06/1994	1
82162 - WIRE, FLOOR, NO.2
82162-32580	CV30,SV30,32,35..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82162-32590	CV30,SV30,32,35..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	07/1990 - 06/1992	1
82162-32800	CV30,SV32,35..SED..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1992 - 06/1993	1
82162-32780	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1993	1
82162-32790	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1992 - 06/1993	1
82162-32800	CV30,SV35..SED..(VX,ZX) ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1993 - 06/1994	1
82162-32790	CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1993 - 06/1994	1
82162-32781	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX)	06/1993 - 06/1994	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-32370	CV30,SV3#..SED..(GT,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1992	1
82181-32360	CV30,SV3#..CAM	07/1990 - 06/1992	1
82181-32460	CV30,SV32,33,35..ZX ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1992 - 06/1994	1
82181-32450	CV30,SV3#..CAM	06/1992 - 06/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-32150	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	06/1992 - 06/1994	1
82182-32110	CV30,SV3#..CAM	07/1990 - 06/1992	1
82182-32120	CV30,SV3#..SED..(GT,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1992	1
82182-32140	CV30,SV3#..SED	06/1992 - 06/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-32150	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	06/1992 - 06/1994	1
82182-32110	CV30,SV3#..CAM	07/1990 - 06/1992	1
82182-32120	CV30,SV3#..SED..(GT,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1992	1
82182-32140	CV30,SV3#..SED	06/1992 - 06/1994	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-32070	CV30,SV32,33,35,VZV3#..PRO,VX,ZX	06/1992 - 06/1994	1
82412 - WIRE, FUEL GAGE
82412-32020	CV30,SV30,32,33..SED..(GT,VL,VR,VX,XT,ZE,ZV,ZX) FUEL PUMP	07/1990 - 06/1992	1
82412-32020	CV30,SV30,32,33,VZV3#	06/1992 - 02/1994	1
82412 - WIRE, FUEL GAGE
82412-32020	CV30,SV30,32,33..SED..(GT,VL,VR,VX,XT,ZE,ZV,ZX) FUEL PUMP	07/1990 - 06/1992	1
82412-32020	CV30,SV30,32,33,VZV3#	06/1992 - 02/1994	1
Common parts
82711-14110
82711-2A420
82715-32150
90119-06230
90119-06356
90119-06390

ILLUST NO. 7 OF 8(9206-9406)

Click highlighted areas on diagram

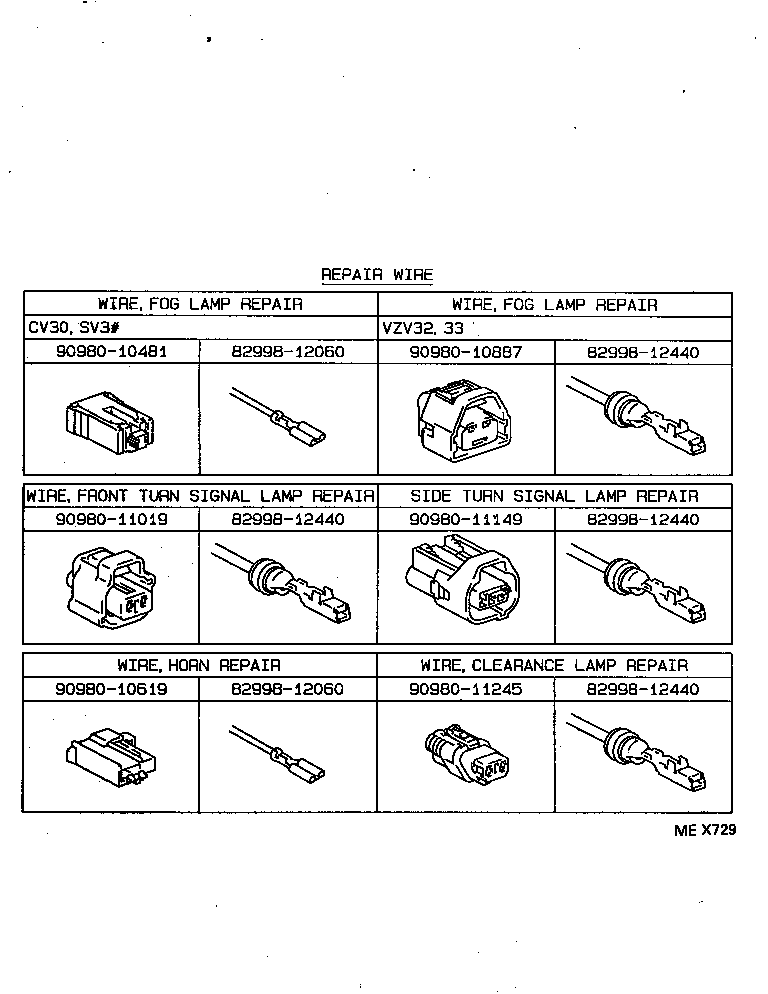

REPAIR WIRE

Part #	Description	Period	Qty	Price
Common parts
82998-12060
82998-12440
90980-10481
90980-10619
90980-10887
90980-11019
90980-11149
90980-11245
