CV30-AEMEX (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 2CT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9007-9206)GT,VR,VX,ZE,ZX ; (9206-9406)ETO,LUM,VL,XT

Click highlighted areas on diagram

RADIATOR

diagram 55907C 55908B 87106A 87106A 87107 87150 87161 87201D 87201E 9017906239 9048013024 9053025010
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-32050

SV30,35..ETO,LUM,VE,VR,VX,ZE,ZV,ZX;CV30,SV32,33,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX

 1
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
87286-32020

CV30,SV3#,VZV3#

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32080

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

AIR MIX CONTROL

 1
87106-32070

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

MODE CONTROL

 1
87106-32100

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32080

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

AIR MIX CONTROL

 1
87106-32070

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

MODE CONTROL

 1
87106-32100

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32090

CV30

 1
87150 - RADIATOR ASSY, HEATER
87150-32230

CV30..VR,ZE

 1
87150-32200

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20030

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
87201D - DUCT SUB-ASSY, AIR
87201-32220

CV30,SV3#,VZV3#

 1
87201E - DUCT SUB-ASSY, AIR, NO.2
87201-32230

CV30,SV3#,VZV3#

 1
Common parts
90179-06239
90480-13024
90530-25010

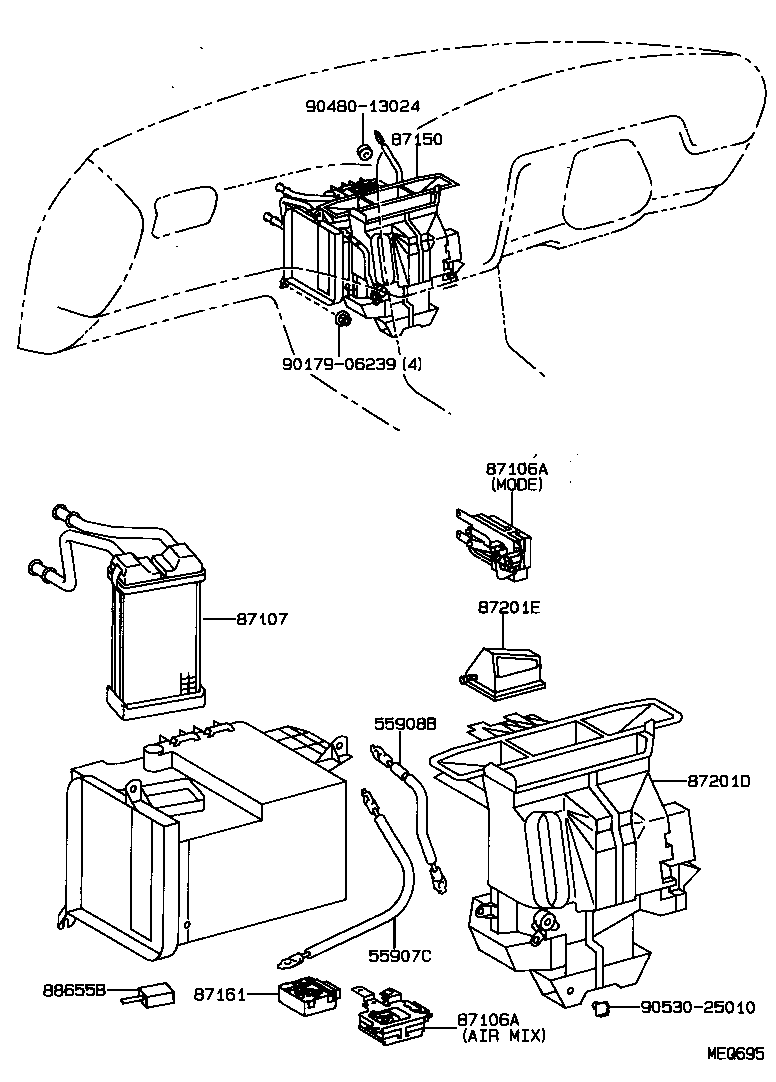

ILLUST NO. 1 OF 3(9007-9206)VZV3# ; (9206-9406)PRO,VR,VX,ZE,ZX

Click highlighted areas on diagram

RADIATOR

diagram 55907C 55908B 87106A 87106A 87107 87150 87161 87201D 87201E 88655B 9017906239 9048013024 9053025010
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-32050

SV30,35..ETO,LUM,VE,VR,VX,ZE,ZV,ZX;CV30,SV32,33,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX

 1
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
87286-32020

CV30,SV3#,VZV3#

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32080

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

AIR MIX CONTROL

 1
87106-32070

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

MODE CONTROL

 1
87106-32100

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32080

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

AIR MIX CONTROL

 1
87106-32070

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

MODE CONTROL

 1
87106-32100

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32090

CV30

 1
87150 - RADIATOR ASSY, HEATER
87150-32230

CV30..VR,ZE

 1
87150-32200

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20030

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
87201D - DUCT SUB-ASSY, AIR
87201-32220

CV30,SV3#,VZV3#

 1
87201E - DUCT SUB-ASSY, AIR, NO.2
87201-32230

CV30,SV3#,VZV3#

 1
88655B - SWITCH, WATER TEMPERATURE
88790-24040

CV30

 1
Common parts
90179-06239
90480-13024
90530-25010

ILLUST NO. 2 OF 3(9007-9406)

Click highlighted areas on diagram

BLOWER

diagram 8271532040 87103 87105 87106C 87130 9011906042 9017906239 9356755016
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20050

CV30,SV3#,VZV3#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20100

CV30,SV3#,VZV3#

 1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-32090

CV30,SV3#,VZV3#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-32140

CV30,SV3#,VZV3#

 1
Common parts
82715-32040
90119-06042
90179-06239
93567-55016

ILLUST NO. 3 OF 3(9007-9406)CV30,SV3#

Click highlighted areas on diagram

W(AUTO AIR CONDITIONER)

diagram 87106A 8856917080 8856917080 8856922270 8856922270 8857812330 88605P 88605P 88630M 88650D 88650D 88655B 88655B 8871832440 9004464009 9004464009 9009900192 9009900912 9011900930 9354014010 9356755016 9356755016
Part # Description Qty Price
87106A - SERVO SUB-ASSY, DAMPER
87106-32080

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

AIR MIX CONTROL

 1
87106-32070

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

MODE CONTROL

 1
87106-32100

CV30,SV3#..GT,VR,VX,ZE,ZX

ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-32640

CV30..VR,ZE

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-32640

CV30..VR,ZE

 1
88650D - AMPLIFIER ASSY
88650-32310

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88650D - AMPLIFIER ASSY
88650-32310

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88655B - SWITCH, WATER TEMPERATURE
88790-24040

CV30

 1
88655B - SWITCH, WATER TEMPERATURE
88790-24040

CV30

 1
Common parts
88569-17080
88569-22270
88578-12330
88718-32440
90044-64009
90099-00192
90099-00912
90119-00930
93540-14010
93567-55016
