CV20-UTPNX (1988)
Toyota Camry/Vista

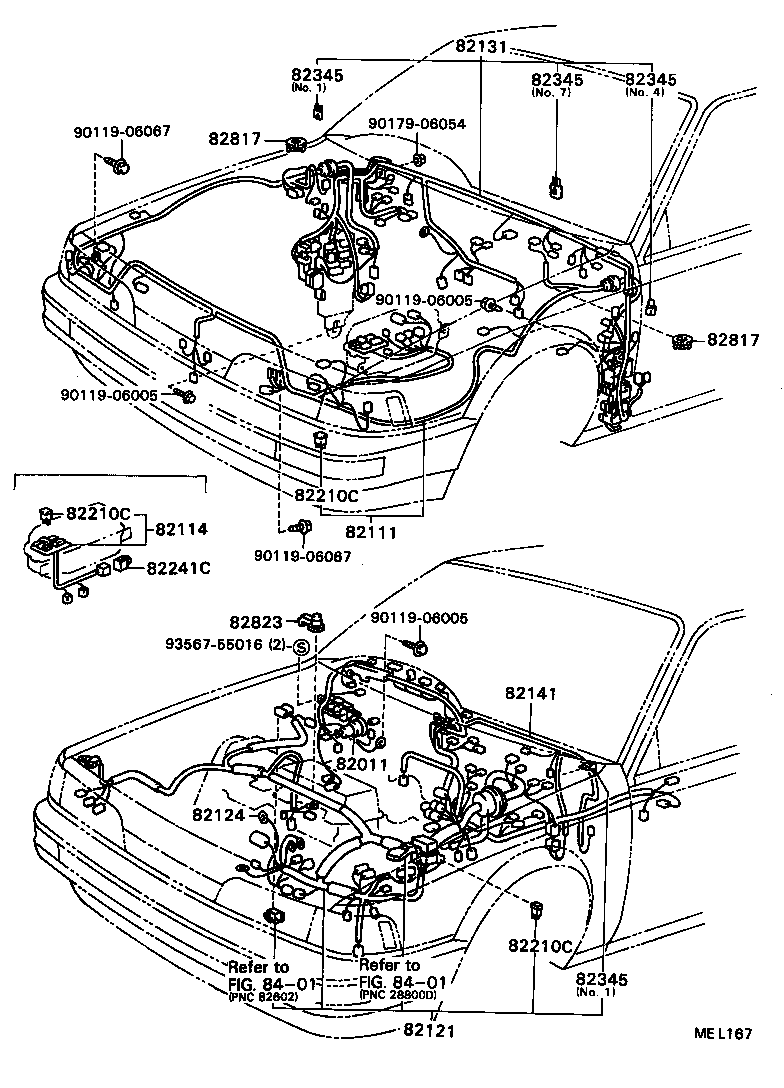

ILLUST NO. 1 OF 5(8808- )CV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82011 - WIRING ASSY, BRAKE WARNING SYSTEM | ||||
| 82011-20040 |
CV20 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32480 |
CV20..4FC |
1 | ||
| 82111-32481 |
CV20..4FC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3H360 |
CV20..4FC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20010 |
CV20 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H750 |
CV20,SV22,25..LT,VC,VL,XT |
1 | ||
| 82131-3P020 |
CV20,SV22..VL ｴﾄﾜ-ﾙ |
1 | ||
| 82131-3H761 |
CV20,SV22..VL ｴﾄﾜ-ﾙ V |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32410 |
CV20,SV22..4FC..(VL,XT) |
1 | ||
| 82141-32430 |
CV20,SV22..4FC..VL ｴﾄﾜ-ﾙ V |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
CV20,SV2#;VZV20..5F 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV22;SV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
CV20,SV2#;VZV20..5F 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
CV20,SV2#;VZV20..5F 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV22;SV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
CV20,SV2#;VZV20..5F 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
CV20,SV2#;VZV20..5F 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV22;SV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
CV20,SV2#;VZV20..5F 40A,ﾒｽ端子,緑 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
CV20 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32690 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ |
1 | ||
| 82151-32680 |
CV20,SV22,25..HT..VL |
1 | ||
| 82151-32690 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ OR ｴﾄﾜ-ﾙ V |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32620 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ |
1 | ||
| 82152-32620 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ OR ｴﾄﾜ-ﾙ V |
1 | ||
| 82152-32610 |
CV20,SV22,25..HT..VL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32150 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ |
1 | ||
| 82153-32150 |
CV20,SV22..HT..VL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-32100 |
CV20,SV22..HT..VL |
1 | ||
| 82154-32100 |
CV20,SV22..HT..VL |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-3H310 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ |
1 | ||
| 82161-3H310 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ OR ｴﾄﾜ-ﾙ V |
1 | ||
| 82161-3H300 |
CV20,SV22..HT..VL |
1 | ||
| 82161-3H311 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ OR ｴﾄﾜ-ﾙ V |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32540 |
CV20,SV22..VL |
1 | ||
| 82162-32540 |
CV20,SV22..VL |
1 | ||
| 82162-32540 |
CV20,SV22..HT..VL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32400 |
CV20,SV22..HT..VL ｴﾄﾜ-ﾙ V |
1 | ||
| 82171-32390 |
CV20,SV22,25..HT..VL |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32330 |
CV20,SV21,22,VZV20..HT |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-32040 |
CV20,SV22,25..HT..VL |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 3 OF 5(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-22140 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-2B210 | ||||
| 82711-32460 | ||||
| 82711-32501 | ||||
| 82711-32520 | ||||
| 82711-32600 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-3H090 | ||||
| 82711-3H170 | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
ILLUST NO. 3 OF 5(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20880 | ||||
| 82711-32840 | ||||
| 82715-32010 | ||||
| 82715-32012 | ||||
| 82715-32020 | ||||
| 85373-32010 | ||||
| 90461-08066 | ||||
| 90464-00248 | ||||
ILLUST NO. 4 OF 5(8808- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32020 |
CV20;SV2#..SED..(GT,LT,VC,VL,XT) |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
CV20,SV21,VZV20;SV22,25..HT..VL;SV22,25..LUM,VE,VR,ZE |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| Common parts | ||||
| 82981-20010 | ||||
| 82982-32010 | ||||
| 82983-32020 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||
| 82991-20050 | ||||
ILLUST NO. 4 OF 5(8808- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32020 |
CV20;SV2#..SED..(GT,LT,VC,VL,XT) |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32060 |
CV20 NO.3 |
1 | ||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| Common parts | ||||
| 82982-20030 | ||||
| 82982-22030 | ||||
| 82983-20010 | ||||
| 82991-32050 | ||||
| 82991-32060 | ||||
ILLUST NO. 5 OF 5(8808- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV22..VL COWL WIRE,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWR WIRE,NO.4 |
1 | ||
| 82345-12050 |
CV20..4FC ENGINE WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWR WIRE,NO.7 |
1 | ||
| 82345-20060 |
CV20,SV22..VL COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV22..VL COWL WIRE,NO.7 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20060 | ||||
| 82345-22051 | ||||
| 82345-32020 | ||||
