CV20-UTPNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT

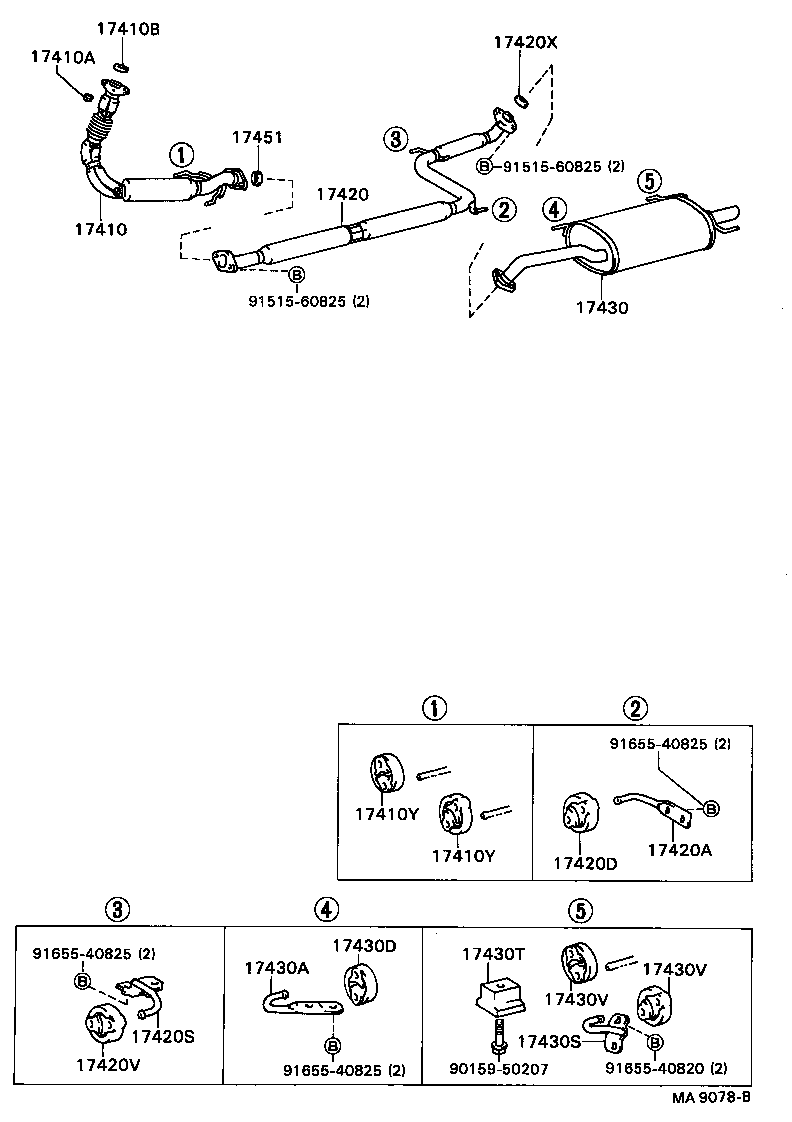

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 9015950207 9151560825 9151560825 9165540820 9165540825 9165540825 9165540825
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64200

2CT..CV20

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2CT,3S#,1VZFE..CV20,SV21,25,VZV20

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

2CT,3SFE,1VZFE..CV20,SV21,25,VZV20

 1
90917-06005

2CT,3SFE,1VZFE..CV20,SV21,25,VZV20

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-11100

2CT,3S#,4SFI..CV20,SV21,22

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-11100

2CT,3S#,4SFI..CV20,SV21,22

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64060

2CT..CV20

 1
17420-64061

2CT..CV20

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-63050

2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-11100

2CT,3S#,4SFI..CV20,SV21,22

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-63030

2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-11100

2CT,3S#,4SFI..CV20,SV2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06047

2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20

 1
90917-06012

2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64380

2CT..CV20

 1
17430-64381

2CT..CV20

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17563-63080

2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-11100

2CT..CV20;3SGE..SV21..5F

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63060

2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36011

2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63120

2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63120

2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

2CT,3SFE..CV20,SV21,25

 1
90917-06047

2CT,3SFE..CV20,SV21,25

 1
Common parts
90159-50207
91515-60825
91655-40820
91655-40825
