CV20-UTPNX (1988)
Toyota Camry/Vista

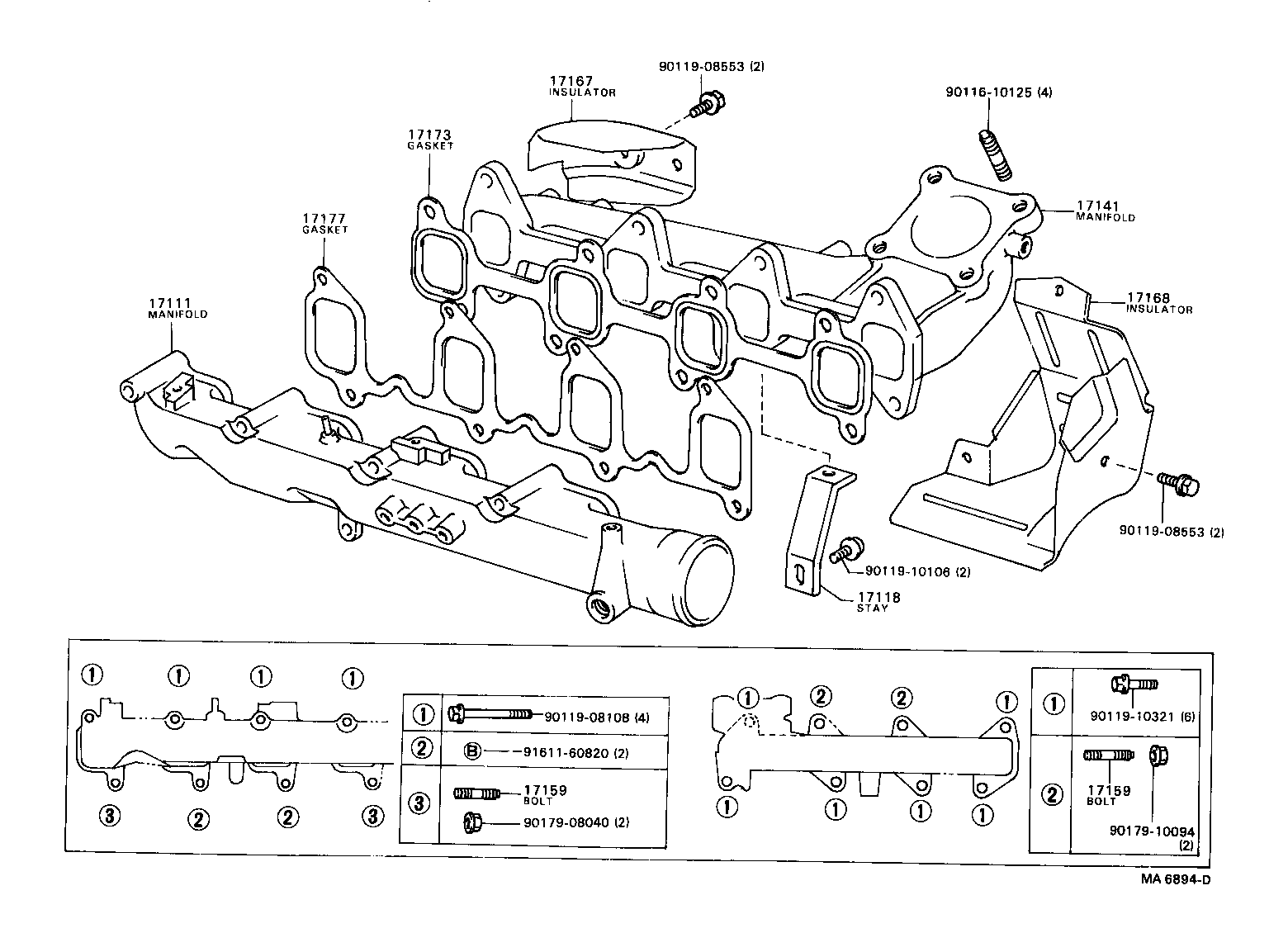

ILLUST NO. 1 OF 2(8808- )2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-64110 |
2CT..CV20..4FC |
1 | ||
| 17101-64111 |
2CT..CV20..4FC |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-64020 |
2CT..CV20 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-64120 |
2CT..CV20..4FC |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10095 |
2CT..CV20 EXHAUST MANIFOLD |
2 | ||
| 92122-60820 |
2CT..CV20 INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10095 |
2CT..CV20 EXHAUST MANIFOLD |
2 | ||
| 92122-60820 |
2CT..CV20 INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-64031 |
2CT..CV20 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-64060 |
2CT..CV20 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-64050 |
2CT..CV20 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-64010 |
2CT..CV20 |
1 | ||
| 17177-64020 |
2CT..CV20 |
1 | ||
| Common parts | ||||
| 90116-10125 | ||||
| 90119-08108 | ||||
| 90119-08553 | ||||
| 90119-10106 | ||||
| 90119-10321 | ||||
| 90179-08040 | ||||
| 90179-10094 | ||||
| 91611-60820 | ||||

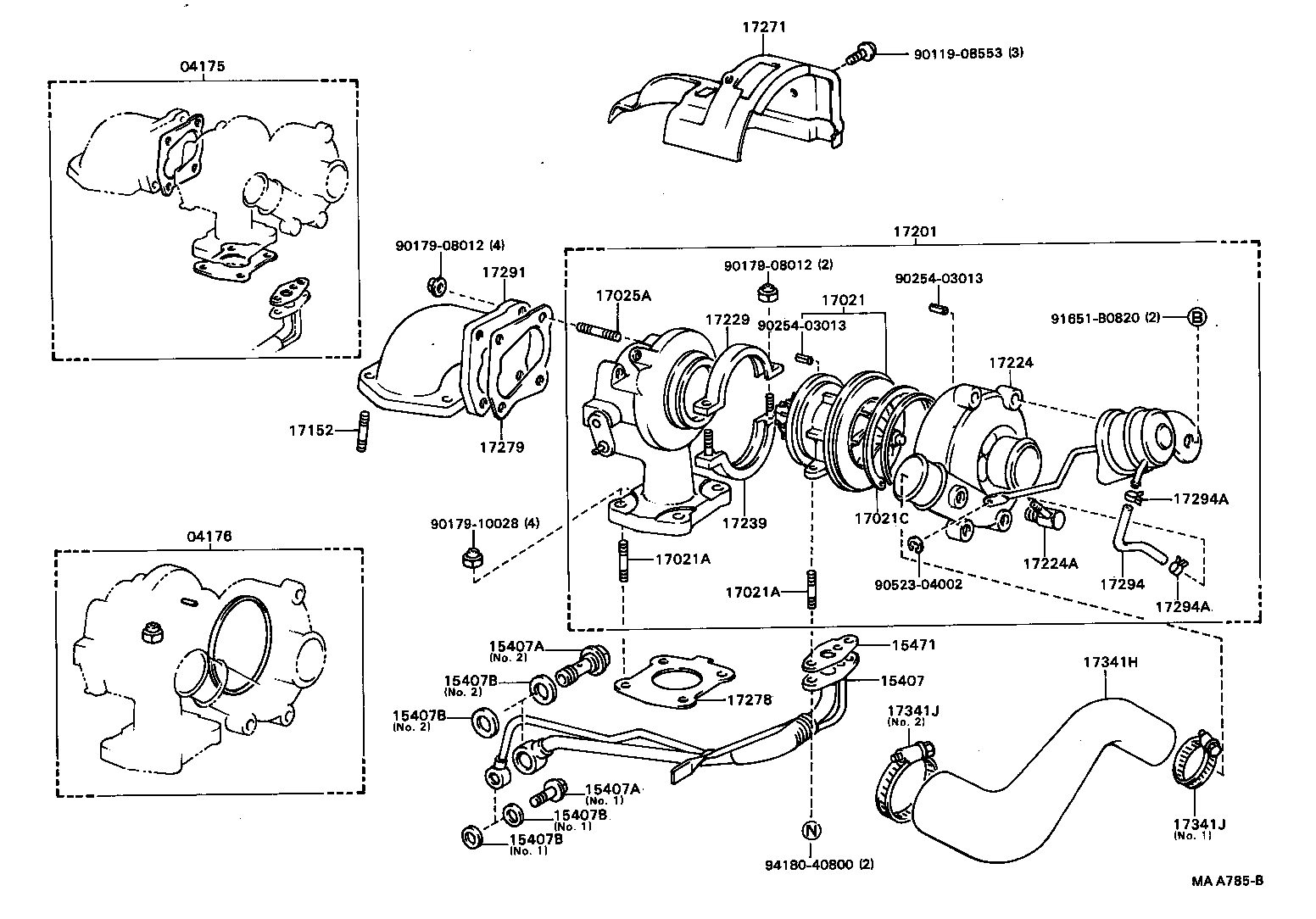

ILLUST NO. 2 OF 2(8808- )2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-64023 |
2CT..CV20 |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-70011 |
2CT..CV20 |
1 | ||
| 04176-70010 |
2CT..CV20 |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-64030 |
2CT..CV20 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2CT..CV20 NO.1 |
1 | ||
| 90401-27002 |
2CT..CV20 NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2CT..CV20 NO.1 |
1 | ||
| 90401-27002 |
2CT..CV20 NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2CT..CV20 NO.1 |
2 | ||
| 90210-27001 |
2CT..CV20 NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2CT..CV20 NO.1 |
2 | ||
| 90210-27001 |
2CT..CV20 NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2CT..CV20 NO.1 |
2 | ||
| 90210-27001 |
2CT..CV20 NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2CT..CV20 NO.1 |
2 | ||
| 90210-27001 |
2CT..CV20 NO.2 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
2CT..CV20 |
1 | ||
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-64050 |
2CT..CV20 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2CT..CV20 |
2 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2CT..CV20 |
2 | ||
| 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) | ||||
| 90521-99035 |
2CT..CV20 |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
2CT..CV20 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
2CT..CV20 |
3 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-64040 |
2CT..CV20 |
1 | ||
| 17224 - HOUSING, COMPRESSOR | ||||
| 17224-64020 |
2CT..CV20 |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
2CT..CV20 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-70010 |
2CT..CV20 |
1 | ||
| 17239 - CLAMP, V, NO.2 | ||||
| 17239-70010 |
2CT..CV20 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-64040 |
2CT..CV20 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-64020 |
2CT..CV20 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11010 |
2CT..CV20 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-64040 |
2CT..CV20 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
2CT..CV20 |
1 | ||
| 90445-12151 |
2CT..CV20 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2CT..CV20 |
2 | ||
| 96132-41100 |
2CT..CV20 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2CT..CV20 |
2 | ||
| 96132-41100 |
2CT..CV20 |
2 | ||
| 17341H - HOSE, AIR | ||||
| 17341-64030 |
2CT..CV20 |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 90460-70001 |
2CT..CV20 NO.2 |
1 | ||
| 90460-50001 |
2CT..CV20 NO.1 |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 90460-70001 |
2CT..CV20 NO.2 |
1 | ||
| 90460-50001 |
2CT..CV20 NO.1 |
1 | ||
| Common parts | ||||
| 90119-08553 | ||||
| 90179-08012 | ||||
| 90179-10028 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91651-B0820 | ||||
| 94180-40800 | ||||
