CV20-UTPNX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2CT..4FC

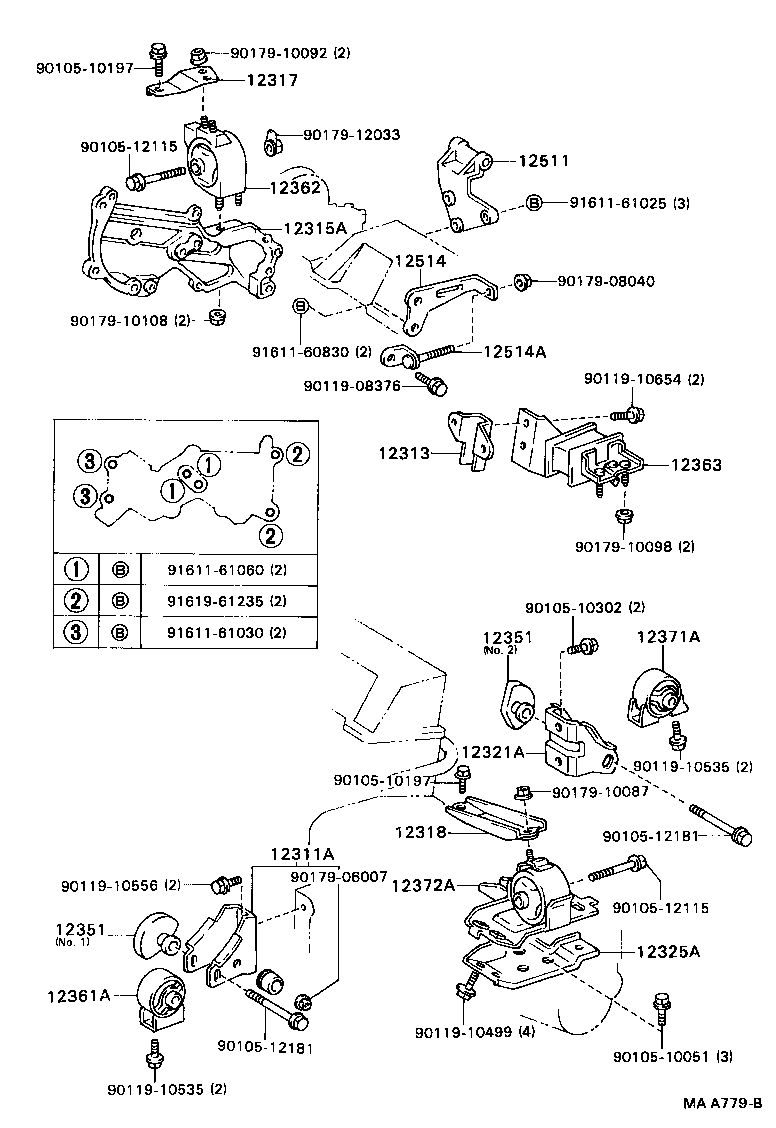

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-64100 |
2CT..CV20 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-64010 |
2CT..CV20 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-64040 |
2CT..CV20 |
1 | ||
| 12315-64050 |
2CT..CV20 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-64040 |
2CT..CV20..4FC |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-64030 |
2CT..CV20..4FC |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74130 |
2CT..CV20..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74041 |
2CT..CV20..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64030 |
2CT..CV20..4FC NO.1 |
1 | ||
| 12351-64040 |
2CT..CV20..4FC NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64030 |
2CT..CV20..4FC NO.1 |
1 | ||
| 12351-64040 |
2CT..CV20..4FC NO.2 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-64121 |
2CT..CV20..4FC |
1 | ||
| 12361-64120 |
2CT..CV20..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-64100 |
2CT..CV20..4FC |
1 | ||
| 12363 - INSULATOR, ENGINE MOUNTING, CENTER | ||||
| 12363-64010 |
2CT..CV20 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64101 |
2CT..CV20..4FC |
1 | ||
| 12371-64100 |
2CT..CV20..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-64130 |
2CT..CV20..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-64020 |
2CT..CV20 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 16381-64020 |
2CT..CV20 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64020 |
2CT..CV20 |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-10197 | ||||
| 90105-10302 | ||||
| 90105-12115 | ||||
| 90105-12181 | ||||
| 90119-08376 | ||||
| 90119-10499 | ||||
| 90119-10535 | ||||
| 90119-10556 | ||||
| 90119-10654 | ||||
| 90179-06007 | ||||
| 90179-08040 | ||||
| 90179-10087 | ||||
| 90179-10092 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-12033 | ||||
| 91611-60830 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61060 | ||||
| 91619-61235 | ||||
