CV20-UTPMX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

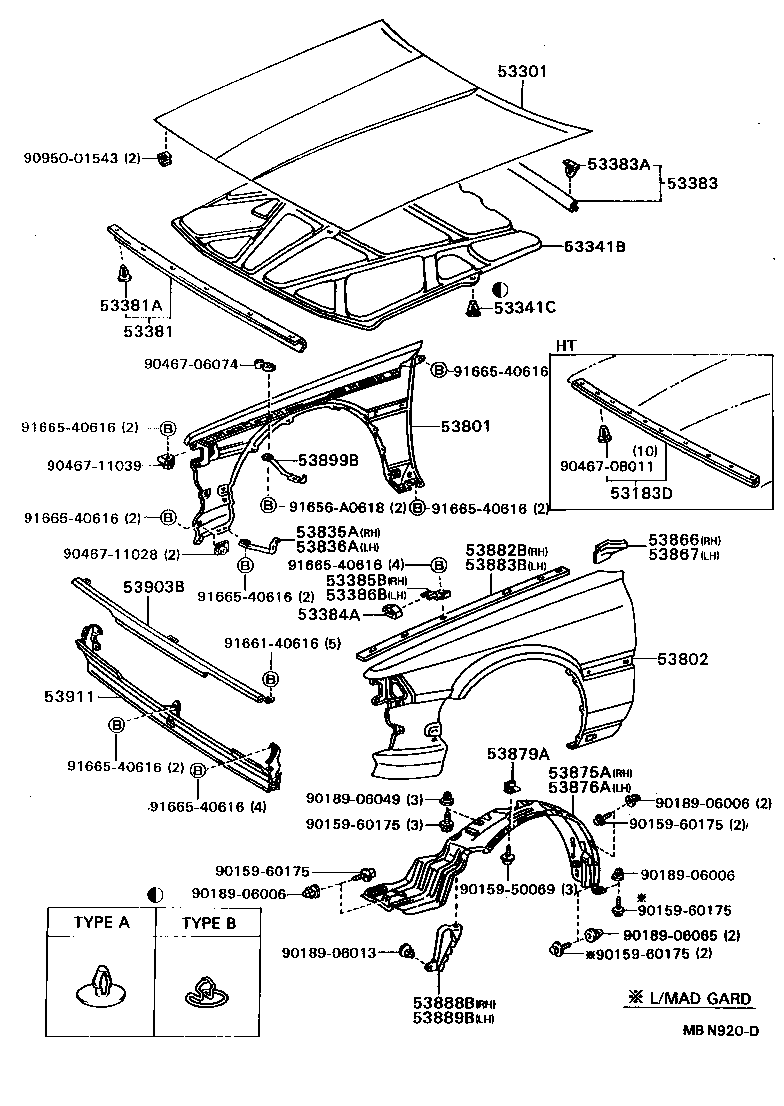

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-32020 |
CV20,SV2#,VZV20..HT |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-32081 |
CV20,SV2#,VZV20..HT |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-32030 |
CV20,SV21,25,VZV20 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-11020 |
CV20 ﾀｲﾌﾟ B |
1 | ||
| 90467-09006 |
CV20 ﾀｲﾌﾟ A |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
CV20,SV2#,VZV20 |
6 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08044 |
CV20,SV2#,VZV20 |
10 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-14030 |
CV20,SV2#,VZV20 |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-14010 |
CV20,SV2#,VZV20 |
1 | ||
| 53385-20020 |
CV20,SV2#,VZV20 |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-20020 |
CV20,SV2#,VZV20 |
1 | ||
| 53386-14010 |
CV20,SV2#,VZV20 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-32180 |
CV20,SV2#..HT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53801-32190 |
CV20,SV2#..HT |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-32170 |
CV20,SV2#..HT ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802-32180 |
CV20,SV2#..HT |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-32020 |
CV20,SV2#;VZV20..SED |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53835-32020 |
CV20,SV2#;VZV20..SED |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-32030 |
CV20,SV2#,VZV20..HT |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-32030 |
CV20,SV2#,VZV20..HT |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
CV20,SV2#,VZV20 |
6 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 53888B - SEAL, FRONT FENDER SPLASH SHIELD, RH NO.2 | ||||
| 53888-32010 |
CV20,SV2#;VZV20..SED |
1 | ||
| 53889B - SEAL, FRONT FENDER SPLASH SHIELD, LH NO.2 | ||||
| 53889-32010 |
CV20,SV2#;VZV20..SED |
1 | ||
| 53899B - SUPPORT, FRONT FENDER PANEL | ||||
| 53899-32010 |
CV20,SV2#,VZV20 |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-32040 |
CV20,SV2#..HT |
1 | ||
| Common parts | ||||
| 90159-50069 | ||||
| 90159-60175 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06049 | ||||
| 90189-06065 | ||||
| 90467-06074 | ||||
| 90467-08011 | ||||
| 90467-11028 | ||||
| 90467-11039 | ||||
| 90950-01543 | ||||
| 91656-A0618 | ||||
| 91661-40616 | ||||
| 91665-40616 | ||||
