CV20-UTPMX (1988)
Toyota Camry/Vista

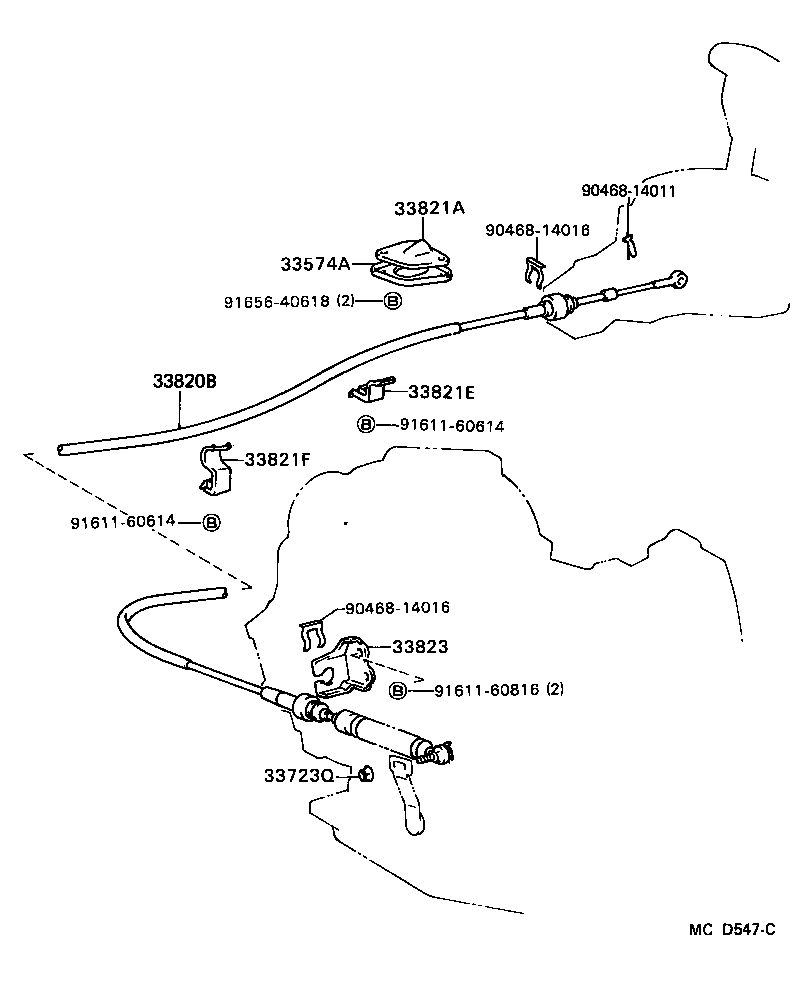

ILLUST NO. 2 OF 2(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32120 |
CV20,SV21,22,VZV20..4FC |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-32161 |
CV20,SV21,22,VZV20..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01357 |
CV20,SV21,22,VZV20..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01374 |
CV20,SV21,22,VZV20..4FC |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01377 |
CV20,SV21,22,VZV20..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| Common parts | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91656-40618 | ||||

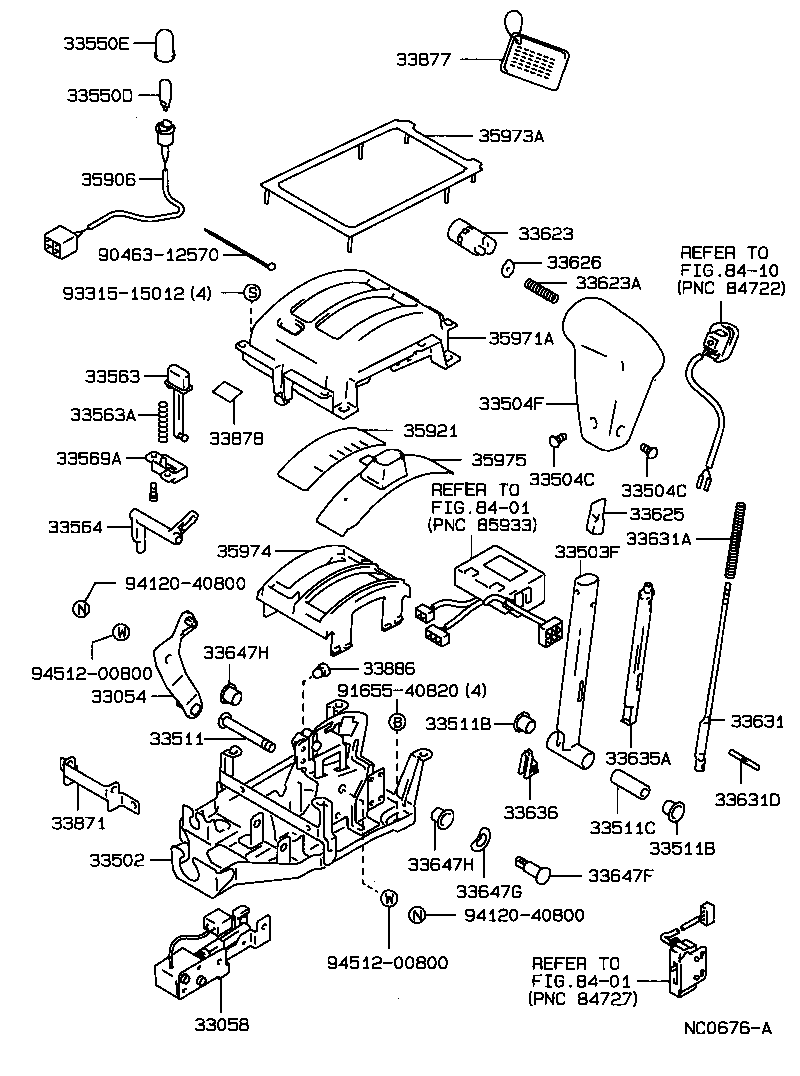

ILLUST NO. 1 OF 2(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-32070 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-32090 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-32050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3208002 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| 33542-3208003 |
CV20,SV2#,VZV20..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33542-3208004 |
CV20,SV2#,VZV20..4FC DARK BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08091 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
CV20,SV2#,VZV20..4FC 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04023 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-3201002 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| 33563-3201004 |
CV20,SV2#,VZV20..4FC DARK BLUE,TRIM8# |
1 | ||
| 33563-3201003 |
CV20,SV2#,VZV20..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06058 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3205003 |
CV20,SV2#,VZV20..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33623-3205002 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| 33623-3205004 |
CV20,SV2#,VZV20..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32030 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-32030 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 33871 - BRACKET, SHIFT LOCK RELEASE LINK (FOR FLOOR SHIFT) | ||||
| 33871-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-20010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-20010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35051 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-32080 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-3209002 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| 35971-3209003 |
CV20,SV2#,VZV20..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35971-3209004 |
CV20,SV2#,VZV20..4FC DARK BLUE,TRIM8# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-32010B0 |
CV20,SV2#,VZV20..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 35973-32010D0 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| 35973-32010J0 |
CV20,SV2#,VZV20..4FC DARK BLUE,TRIM8# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-32050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-3210003 |
CV20,SV2#,VZV20..4FC GRAY,TRIM1# |
1 | ||
| 35975-3210004 |
CV20,SV2#,VZV20..4FC BLUE,TRIM8# |
1 | ||
| 35975-3210002 |
CV20,SV2#,VZV20..4FC MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 91655-40820 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
