CV20-UTPMX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT..4FC

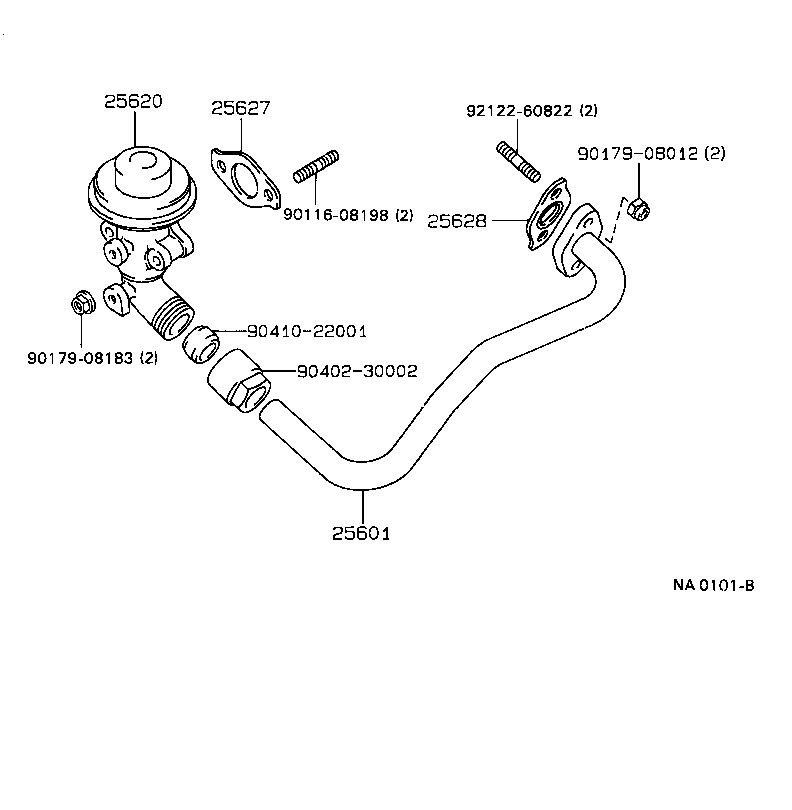

Click highlighted areas on diagram

diagram 25601 25620 25627 25628 9011608198 9017908012 9017908183 9040230002 9041022001 9212260822
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-64030

2CT..CV20..4FC

 1
25620 - VALVE ASSY, EGR
25620-64060

2CT..CV20..4FC

 1
25627 - GASKET, EGR VALVE
25627-64010

2CT..CV20..4FC

 1
25628 - GASKET, EGR INLET
25628-64020

2CT..CV20..4FC

 1
Common parts
90116-08198
90179-08012
90179-08183
90402-30002
90410-22001
92122-60822
