CV20-UTPMX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT

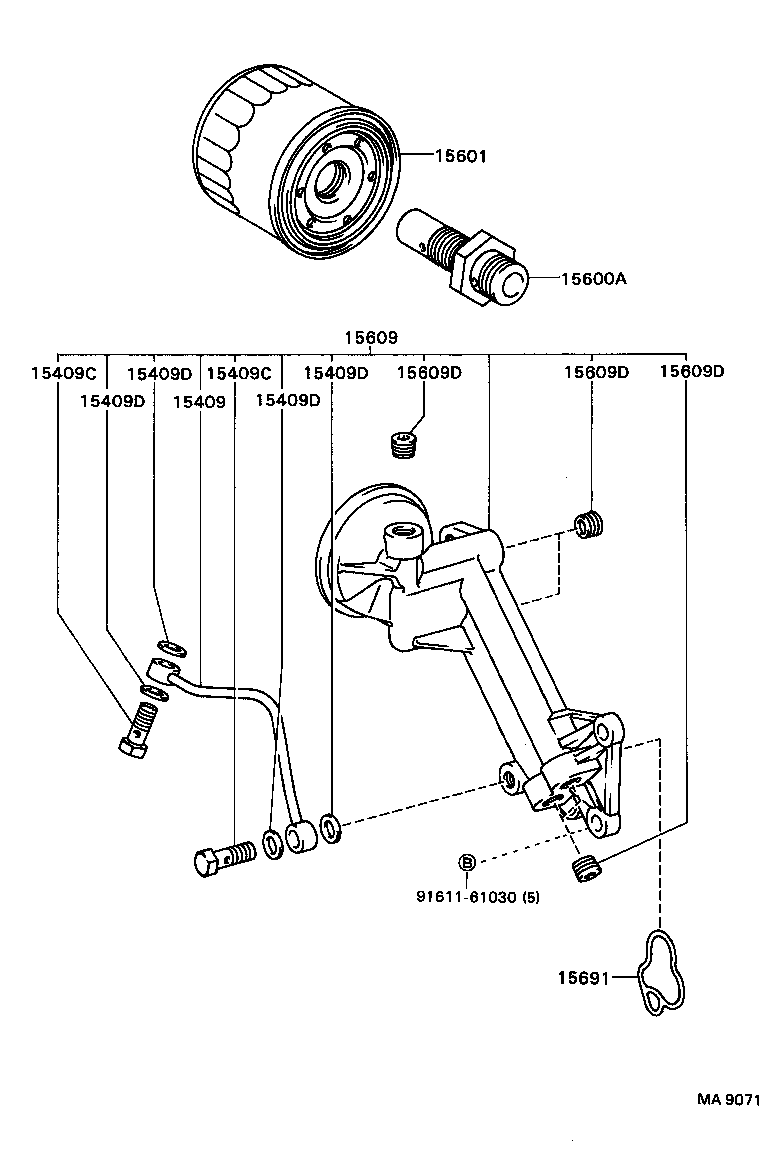

Click highlighted areas on diagram

diagram 15409 15409C 15409C 15409D 15409D 15409D 15409D 15600A 15601 15609 15609D 15609D 15609D 15691 9161161030
Part # Description Qty Price
15409 - PIPE OR HOSE, OIL FILTER OUTLET
15431-64030

2CT..CV20

 1
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031

2CT..CV20

 2
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031

2CT..CV20

 2
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

2CT..CV20

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

2CT..CV20

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

2CT..CV20

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

2CT..CV20

 4
15600A - UNION(FOR OIL FILTER)
90404-27001

2CT..CV20

 1
15601 - FILTER SUB-ASSY, OIL
90915-03003

2CT..CV20

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15608-64040

2CT..CV20

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90344-53002

2CT..CV20

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90344-53002

2CT..CV20

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90344-53002

2CT..CV20

 5
15691 - GASKET, OIL FILTER
15691-64030

2CT..CV20

 1
15691-64040

2CT..CV20

 1
Common parts
91611-61030
