CV20-UTMNX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-32090 |
CV20,SV22..VL FRONT,LH |
1 | ||
| 86150-32080 |
CV20,SV22..VL FRONT,RH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-32090 |
CV20,SV22..VL FRONT,LH |
1 | ||
| 86150-32080 |
CV20,SV22..VL FRONT,RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
CV20,SV22,25..LT,VC,VL,XT |
2 | ||
| 86160-32130 |
CV20,SV22..VL BOX SPEAKER |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
CV20,SV22,25..LT,VC,VL,XT |
2 | ||
| 86160-32130 |
CV20,SV22..VL BOX SPEAKER |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
CV20,SV22,25..LT,VC,VL,XT |
2 | ||
| 86160-32130 |
CV20,SV22..VL BOX SPEAKER |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
CV20,SV22,25..LT,VC,VL,XT |
2 | ||
| 86160-32130 |
CV20,SV22..VL BOX SPEAKER |
2 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
(8808- )
Click highlighted areas on diagram

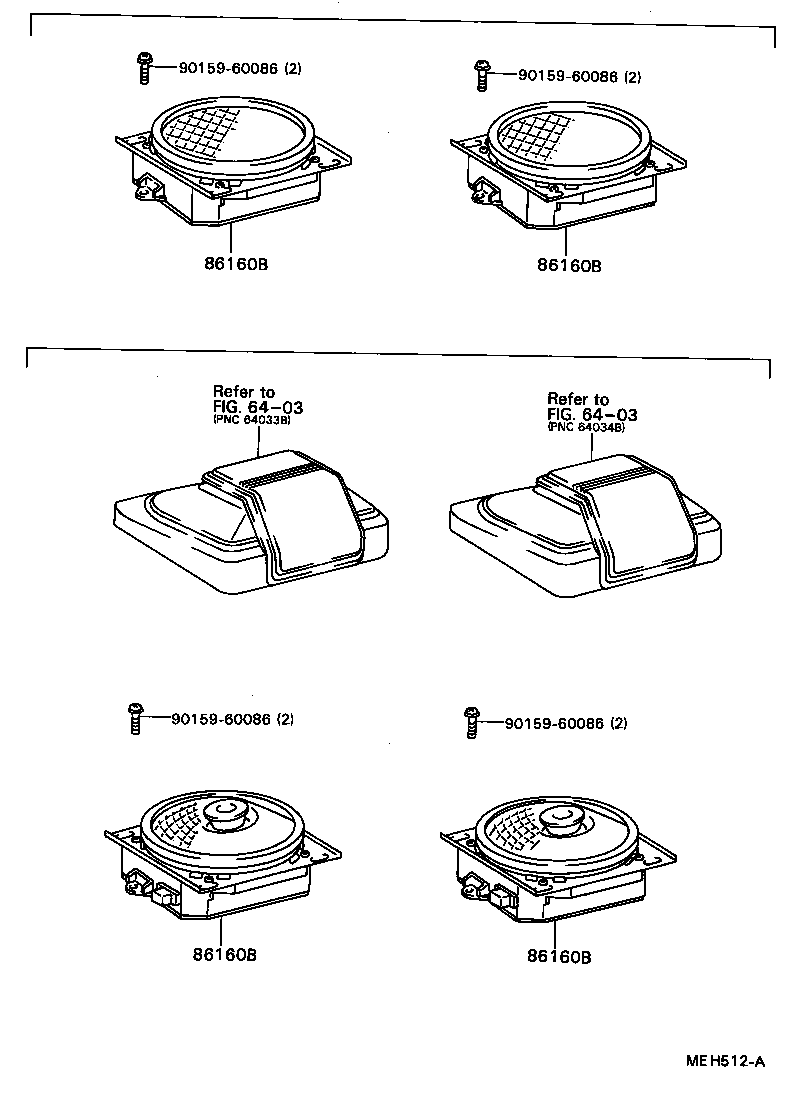

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-32100 |
CV20,SV22..VL ｴﾄﾜ-ﾙ V,ｱﾘ(4ｽﾋﾟ-ｶ-) |
2 | ||
| 86160-32030 |
CV20,SV22..HT..VL |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-32100 |
CV20,SV22..VL ｴﾄﾜ-ﾙ V,ｱﾘ(4ｽﾋﾟ-ｶ-) |
2 | ||
| 86160-32030 |
CV20,SV22..HT..VL |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-32100 |
CV20,SV22..VL ｴﾄﾜ-ﾙ V,ｱﾘ(4ｽﾋﾟ-ｶ-) |
2 | ||
| 86160-32030 |
CV20,SV22..HT..VL |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-32100 |
CV20,SV22..VL ｴﾄﾜ-ﾙ V,ｱﾘ(4ｽﾋﾟ-ｶ-) |
2 | ||
| 86160-32030 |
CV20,SV22..HT..VL |
2 | ||
| Common parts | ||||
| 90159-60086 | ||||
| Linked diagrams | ||||
| 6403 | ||||
