CV20-UTMNX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )5F

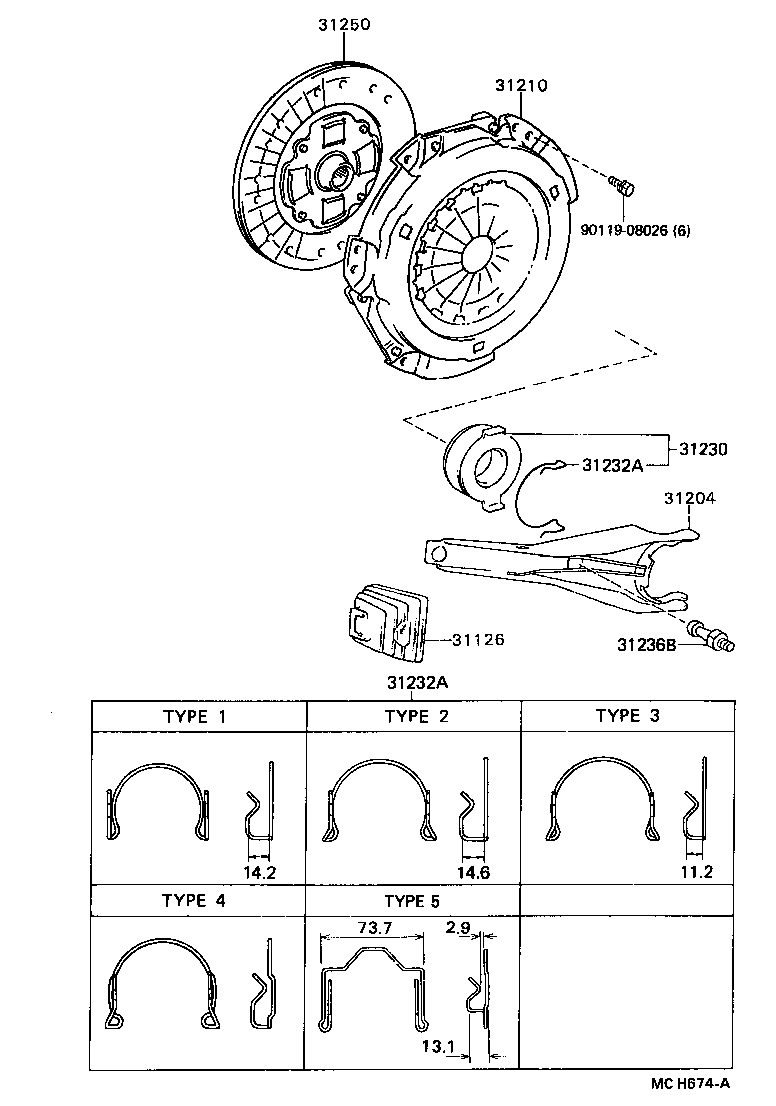

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-32010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20100 |
CV20,SV21,22..5F |
1 | ||
| 31204-32010 |
CV20,SV21,22..5F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-32073 |
CV20,SV21,VZV20..5F |
1 | ||
| 31210-32072 |
CV20,SV21,VZV20..5F |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-32020 |
CV20,SV21,22..5F |
1 | ||
| 31230-32060 |
CV20,SV21,22..5F |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32020 |
CV20,SV21,22..5F TYPE 2 |
1 | ||
| 31232-20020 |
CV20,SV21,22..5F TYPE 4 |
1 | ||
| 31232-32010 |
CV20,SV21,22..5F TYPE 1 |
1 | ||
| 31232-32030 |
CV20,SV21,22..5F TYPE 3 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32020 |
CV20,SV21,22..5F TYPE 2 |
1 | ||
| 31232-20020 |
CV20,SV21,22..5F TYPE 4 |
1 | ||
| 31232-32010 |
CV20,SV21,22..5F TYPE 1 |
1 | ||
| 31232-32030 |
CV20,SV21,22..5F TYPE 3 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-32010 |
CV20,SV21,22..5F |
1 | ||
| 31236-30030 |
CV20,SV21,22..5F |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-32100 |
CV20..5F |
1 | ||
| 31250-32080 |
CV20..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
