CV20-UTMMX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CV20

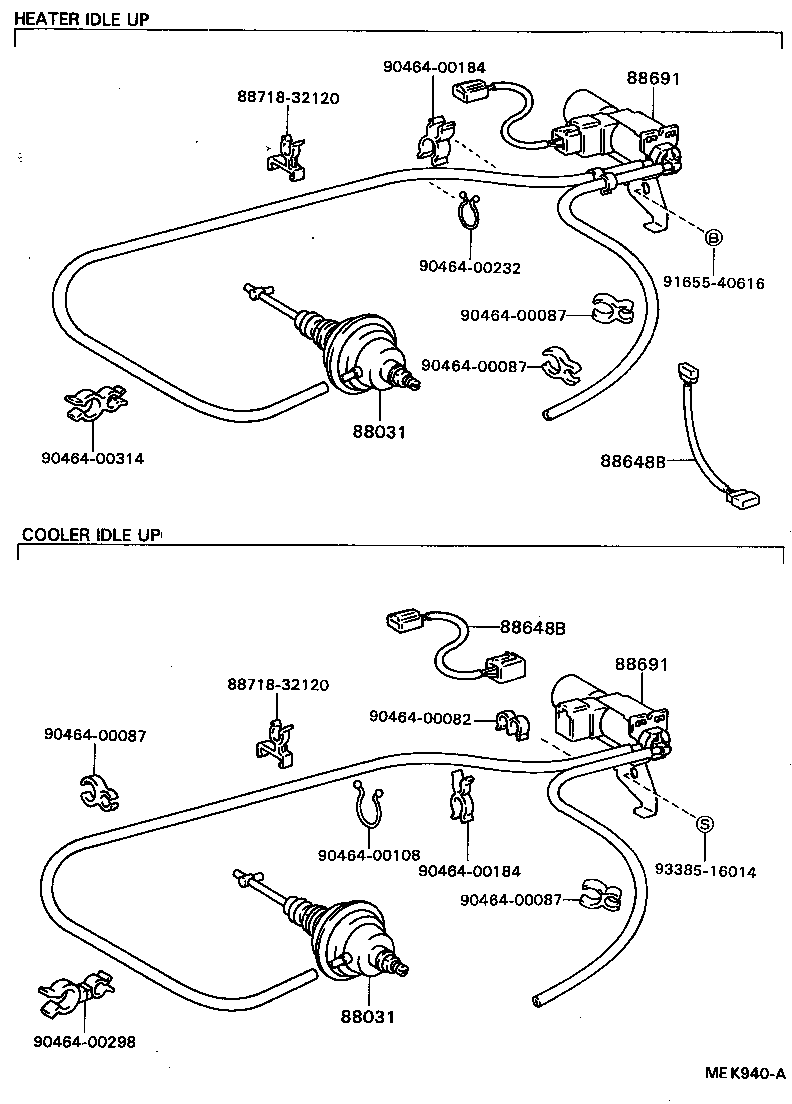

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12150 |
CV20 |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12150 |
CV20 |
1 | ||
| 88648B - WIRING, COOLER, NO.1 | ||||
| 88648-32080 |
CV20 ｶﾝﾚｲﾁ ｼﾖｳ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 88648-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ |
1 | ||
| 88648B - WIRING, COOLER, NO.1 | ||||
| 88648-32080 |
CV20 ｶﾝﾚｲﾁ ｼﾖｳ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 88648-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32250 |
CV20 ｶﾝﾚｲﾁ ｼﾖｳ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 88690-32320 |
CV20 ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-32250 |
CV20 ｶﾝﾚｲﾁ ｼﾖｳ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 88690-32320 |
CV20 ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ |
1 | ||
| Common parts | ||||
| 88718-32120 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90464-00108 | ||||
| 90464-00184 | ||||
| 90464-00232 | ||||
| 90464-00298 | ||||
| 90464-00314 | ||||
| 91655-40616 | ||||
| 93385-16014 | ||||
