CV20-UTMMX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV21,22,VZV20..HT

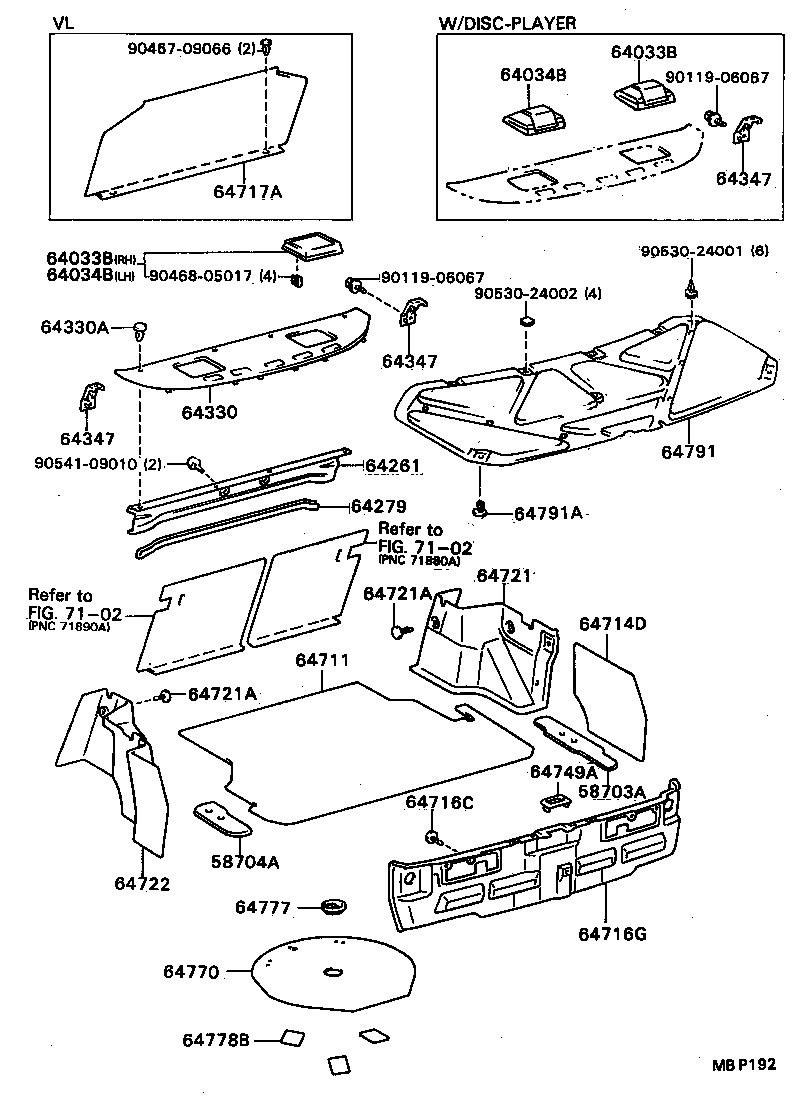

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64033B 64034B 64034B 64261 64279 64330 64330A 64347 64347 64347 64711 64714D 64716C 64716G 64717A 64721 64721A 64721A 64722 64749A 64770 64777 64778B 64791 64791A 7102 7102 9011906067 9011906067 9046709066 9046805017 9053024001 9053024002 9054109010
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-32010

CV20,SV21,22,VZV20

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-32020

CV20,SV2#,VZV20..HT

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2204002

CV20,SV21,22..LUM,VE

MAROON,TRIM3#

 1
64033-2204003

CV20,SV21,22..LUM,VE

MEDIUM GRAY,TRIM1#

 1
64033-2204004

CV20,SV21,22..LUM,VE

DARK BLUE,TRIM8#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2204002

CV20,SV21,22..LUM,VE

MAROON,TRIM3#

 1
64033-2204003

CV20,SV21,22..LUM,VE

MEDIUM GRAY,TRIM1#

 1
64033-2204004

CV20,SV21,22..LUM,VE

DARK BLUE,TRIM8#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-2204002

CV20,SV21,22..LUM,VE

MAROON,TRIM3#

 1
64033-2204004

CV20,SV21,22..LUM,VE

DARK BLUE,TRIM8#

 1
64033-2204003

CV20,SV21,22..LUM,VE

MEDIUM GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-2204002

CV20,SV21,22..LUM,VE

MAROON,TRIM3#

 1
64033-2204004

CV20,SV21,22..LUM,VE

DARK BLUE,TRIM8#

 1
64033-2204003

CV20,SV21,22..LUM,VE

MEDIUM GRAY,TRIM1#

 1
64261 - GARNISH, ROOM PARTITION
64261-3202003

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

MEDIUM GRAY,TRIM1#

 1
64261-3202002

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

MAROON,TRIM3#

 1
64261-3202004

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

DARK GRAY,TRIM8#

 1
64279 - PROTECTOR, ROOM PARTITION
64279-3203003

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

MEDIUM GRAY,TRIM1#

 1
64279-3203002

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

MAROON,TRIM3#

 1
64279-3203004

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

DARK BLUE,TRIM8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-3213002

CV20,SV2#..HT..(VE,VL)

MAROON,TRIM3#

 1
64330-3215003

CV20,SV21,22..HT..VE

ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1#

 1
64330-3213003

CV20,SV2#..HT..(VE,VL)

MEDIUM GRAY,TRIM1#

 1
64330-3215004

CV20,SV21,22..HT..VE

ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ),DARK BLUE,TRIM8#

 1
64330-3215002

CV20,SV21,22..HT..VE

ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ),MAROON,TRIM3#

 1
64330-3213004

CV20,SV2#..HT..(VE,VL)

DARK BLUE,TRIM8#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-08046J0

CV20,SV2#,VZV20

LIGHT BLUE,TRIM8#

 4
90467-08046D0

CV20,SV2#,VZV20

MAROON,TRIM3#

 4
90467-08046B0

CV20,SV2#,VZV20

MEDIUM GRAY,TRIM1#

 4
64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE
64347-32010

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE
64347-32010

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE
64347-32010

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-3206003

CV20,SV21,22..HT..VE

LIGHT GRAY,TRIM1#,3#,8#

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-3209003

CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

CV20,SV2#,VZV20..HT

GRAY,TRIM1#,3#,8#

 11
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-3209003

CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-3207103

CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 7
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 7
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-3207003

CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)

LIGHT GRAY,TRIM1#,3#,8#

 1
64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-3202003

CV20,SV2#,VZV20..HT

LIGHT GRAY,TRIM1#,3#,8#

 1
64770 - COVER ASSY, SPARE WHEEL
64771-32040

CV20,SV21,22,VZV20

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

CV20,SV2#,VZV20

 1
64778B - PROTECTOR, SPARE WHEEL
64778-14020

CV20,SV22..5F;SV21,25,VZV20

 3
64791 - COVER, BACK DOOR TRIM
64791-3203003

CV20,SV2#,VZV20..HT

GRAY,TRIM1#,3#,8#

 1
64791-3204003

CV20,SV2#,VZV20..HT

LIGHT GRAY,TRIM1#,3#,8#

 1
64791A - CLIP(FOR BACK DOOR TRIM)
90467-0805623

CV20,SV2#,VZV20..HT

GRAY,TRIM1#,3#,8#

 3
Common parts
90119-06067
90467-09066
90468-05017
90530-24001
90530-24002
90541-09010
Linked diagrams
7102
