CV20-UTMMX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CV20,SV21,22..5F

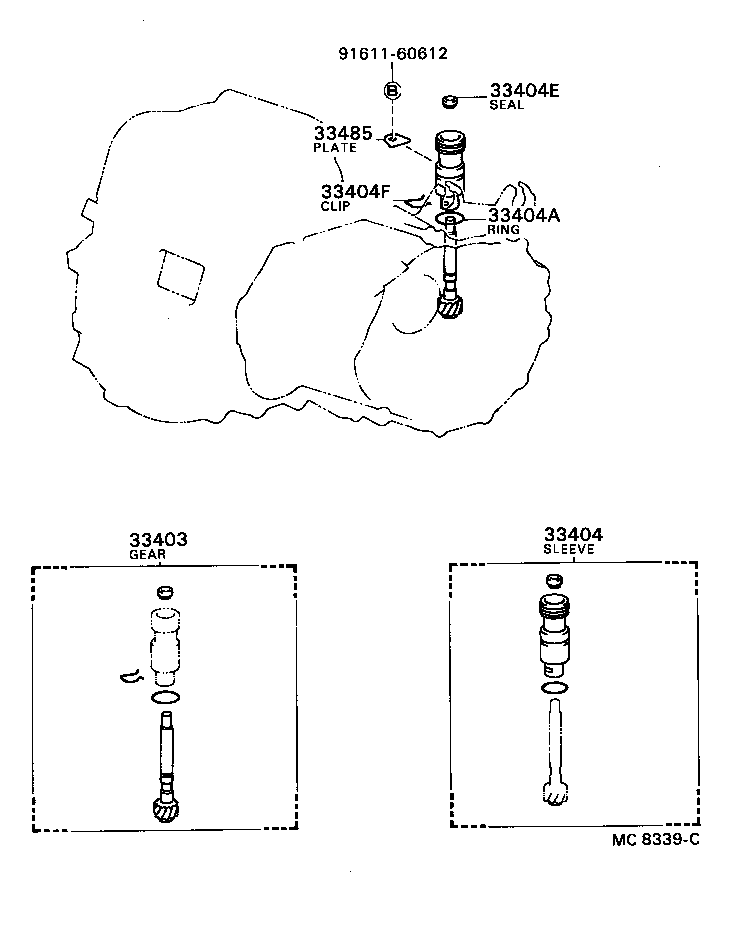

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-39085 |
CV20,SV22..5F 歯数=21,ﾏｰｸ 21:25 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-16010 |
CV20,SV21,22..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24018 |
CV20,SV21,22..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
CV20,SV21,22..5F |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-14010 |
CV20,SV21,22..5F |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
