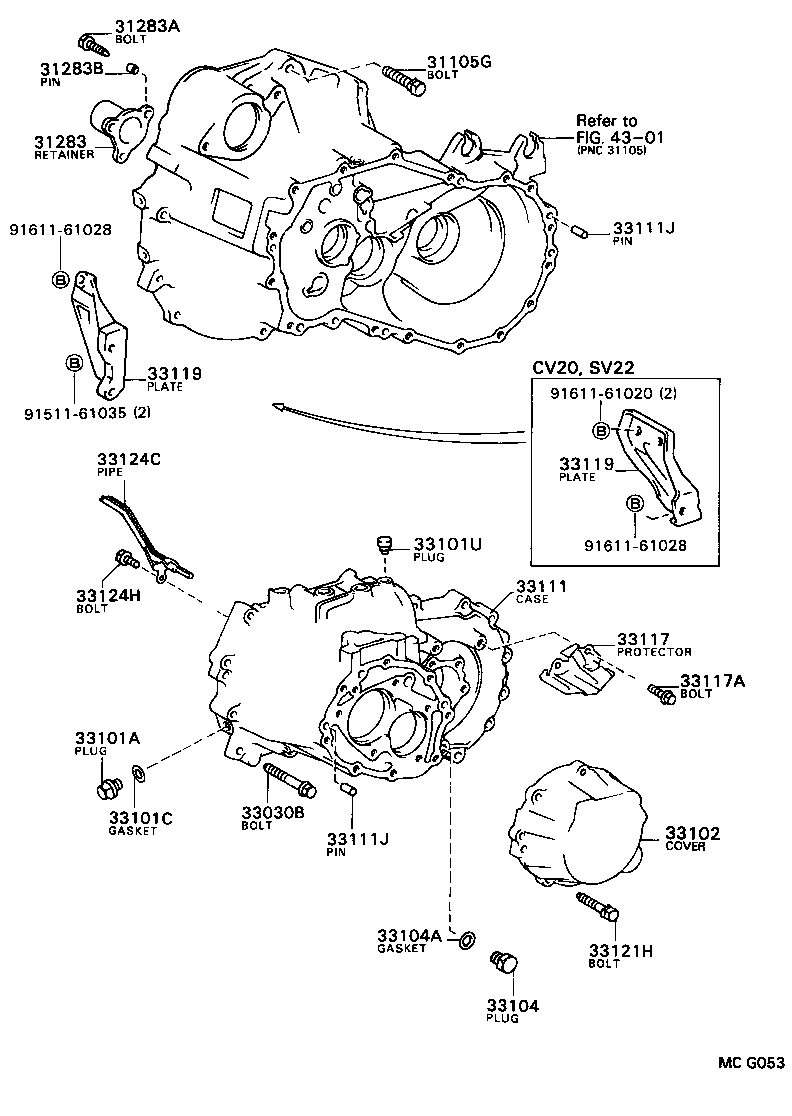

CV20-UTMMX (1988)
Toyota Camry/Vista
(8808- )CV20,SV21,22..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
CV20,SV2#..5F *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CV20,SV2#,VZV20..5F *8−1.25PX18−15 |
1 | ||
| 90105-08040 |
CV20,SV2#,VZV20..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CV20,SV2#..5F *12−1.25PX55−30 |
3 | ||
| 90105-10077 |
CV20,SV2#..5F *10−1.25PX43−26 |
1 | ||
| 90119-12168 |
CV20,SV2#..5F *12−1.25PX55−30 |
3 | ||
| 90105-08040 |
CV20,SV2#,VZV20..5F *8−1.25PX18−15 |
1 | ||
| 90119-12168 |
CV20,SV2#..5F *12−1.25PX55−30 |
3 | ||
| 90105-10077 |
CV20,SV2#..5F *10−1.25PX43−26 |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-32010 |
CV20,SV21,22..5F |
1 | ||
| 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
CV20,SV21,22..5F |
3 | ||
| 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
CV20,SV21,22..5F |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 |
CV20,SV21,22..5F *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90341-18002 |
CV20,SV21,22..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03080 |
CV20,SV21,22..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-32011 |
CV20,SV21,22..5F |
1 | ||
| 33102-32012 |
CV20,SV21,22..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-32014 |
CV20,SV21,22..5F |
1 | ||
| 33111-20141 |
CV20,SV21,22..5F |
1 | ||
| 33111-20140 |
CV20,SV21,22..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV20,SV21,22,VZV20..5F 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CV20,SV21,22,VZV20..5F 長さ=23,外径=8 |
6 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-32011 |
CV20,SV21,22..5F |
1 | ||
| 33117-32011 |
CV20,SV21,22..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90105-08040 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-32010 |
CV20,SV22..5F |
1 | ||
| 33119-32010 |
CV20,SV22..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-32010 |
CV20,SV22..5F |
1 | ||
| 33119-32010 |
CV20,SV22..5F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08089 |
CV20,SV21,22..5F |
8 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-32011 |
CV20,SV21,22..5F |
1 | ||
| 33124-32012 |
CV20,SV21,22..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91651-60618 |
CV20,SV21,22..5F |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-61020 | ||||
| 91611-61028 | ||||
| Linked diagrams | ||||
| 4301 | ||||
