CV20-UEPNX (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

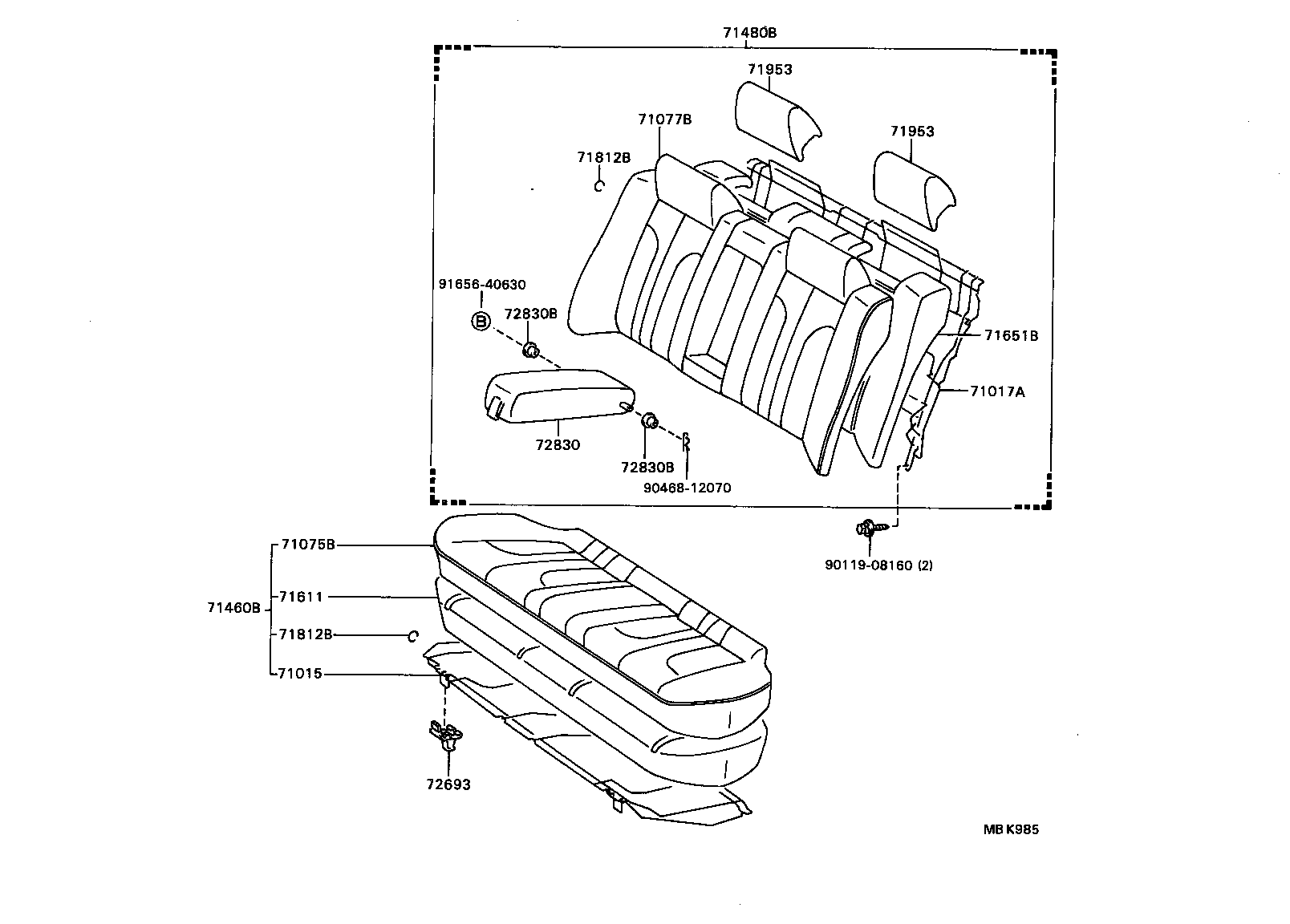

Click highlighted areas on diagram

diagram 71015 71017A 71075B 71077B 71460B 71480B 71611 71651B 71812B 71812B 71953 71953 72693 72830 72830B 72830B 9011908160 9046812070 9165640630
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-32030

CV20,SV2#,VZV20

 1
71015-32030

CV20,SV20,21,VZV20

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-32070

CV20,SV20..LT,VC,VL,XT

 1
71017-32070

CV20,SV20,25..LT,VC,VL,XT

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-3249004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71075-3249005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71075-3249002

CV20..VL,XT

FB,MAROON,MAROON,TRIM3#

 1
71075-3249002

CV20..VL,XT

MAROON,TRIM3#

 1
71075-3249004

CV20..VL,XT

DARK BLUE,TRIM8#

 1
71075-3249005

CV20..VL,XT

DARK BEIGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3253004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71077-3253005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71077-3253002

CV20..VL,XT

FB,MAROON,MAROON,TRIM3#

 1
71077-3253002

CV20,SV25..SED..(VL,XT)

MAROON,TRIM3#

 1
71077-3253004

CV20,SV25..SED..(VL,XT)

DARK BLUE,TRIM8#

 1
71077-3253005

CV20,SV25..SED..(VL,XT)

DARK BEIGE,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-3249005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71460-3249002

CV20..VL,XT

FB,MAROON,MEDIUM GRAY,TRIM3#

 1
71460-3249004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71460-3249004

CV20..VL,XT

DARK BLUE,TRIM8#

 1
71460-3249002

CV20..VL,XT

MEDIUM GRAY,TRIM3#

 1
71460-3249005

CV20..VL,XT

DARK BEIGE,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3252002

CV20..VL,XT

FB,MAROON,MAROON,TRIM3#

 1
71480-3252005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71480-3252004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71480-3252002

CV20,SV25..SED..(VL,XT)

MAROON,TRIM3#

 1
71480-3252004

CV20,SV25..SED..(VL,XT)

DARK BLUE,TRIM8#

 1
71480-3252005

CV20,SV25..SED..(VL,XT)

DARK BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-32110

CV20,SV2#,VZV20..SED

 1
71611-32110

CV20,SV20,21,VZV20..SED

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-32070

CV20,SV20,25..SED..(LT,VC,VL,XT)

 1
71651-32070

CV20,SV20..SED..(LT,VC,VL,XT)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

CV20,SV2#,VZV20

 33
90468-18071

SV25..HT;CV20,SV20,21,VZV20

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

CV20,SV2#,VZV20

 33
90468-18071

SV25..HT;CV20,SV20,21,VZV20

 1
71953 - PAD, REAR SEAT HEADREST
71953-32080

CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)

 2
71953 - PAD, REAR SEAT HEADREST
71953-32080

CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

CV20,SV2#,VZV20

 2
72693-20010

SV25..VL,XT;CV20,SV20,21,VZV20

 2
Common parts
90119-08160
90468-12070
91656-40630

(8608- )

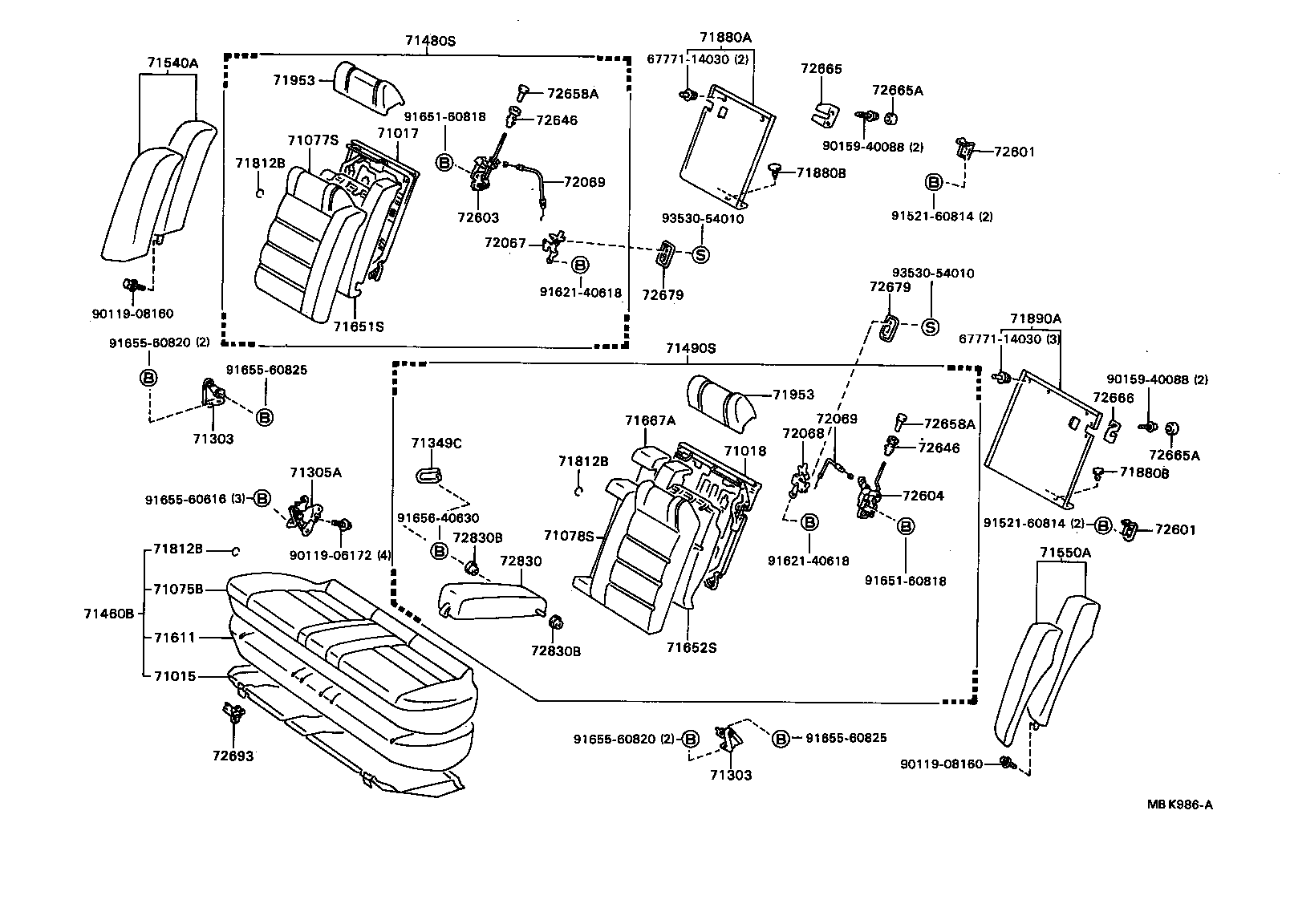

Click highlighted areas on diagram

diagram 6777114030 6777114030 71015 71017 71018 71075B 71077S 71078S 71303 71303 71305A 71349C 71460B 71480S 71490S 71540A 71550A 71611 71651S 71652S 71667A 71812B 71812B 71812B 71880A 71880B 71880B 71890A 71953 71953 72067 72068 72069 72069 72601 72601 72603 72604 72646 72646 72658A 72658A 72665 72665A 72665A 72666 72679 72679 72693 72830 72830B 72830B 9011906172 9011908160 9011908160 9015940088 9015940088 9152160814 9152160814 9162140618 9162140618 9165160818 9165160818 9165560616 9165560820 9165560820 9165560825 9165560825 9165640630 9353054010 9353054010
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-32030

CV20,SV2#,VZV20

 1
71015-32030

CV20,SV20,21,VZV20

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-3249004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71075-3249005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71075-3249002

CV20..VL,XT

FB,MAROON,MAROON,TRIM3#

 1
71075-3249002

CV20..VL,XT

MAROON,TRIM3#

 1
71075-3249004

CV20..VL,XT

DARK BLUE,TRIM8#

 1
71075-3249005

CV20..VL,XT

DARK BEIGE,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-3249005

CV20..VL,XT

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71460-3249002

CV20..VL,XT

FB,MAROON,MEDIUM GRAY,TRIM3#

 1
71460-3249004

CV20..VL,XT

FB,BLUE,DARK BLUE,TRIM8#

 1
71460-3249004

CV20..VL,XT

DARK BLUE,TRIM8#

 1
71460-3249002

CV20..VL,XT

MEDIUM GRAY,TRIM3#

 1
71460-3249005

CV20..VL,XT

DARK BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-32110

CV20,SV2#,VZV20..SED

 1
71611-32110

CV20,SV20,21,VZV20..SED

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

SV25..HT;CV20,SV20,21,VZV20

 1
90468-18071

CV20,SV2#,VZV20

 33
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

CV20,SV2#,VZV20

 33
90468-18071

SV25..HT;CV20,SV20,21,VZV20

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

CV20,SV2#,VZV20

 33
90468-18071

SV25..HT;CV20,SV20,21,VZV20

 1
71953 - PAD, REAR SEAT HEADREST
71953-32080

CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)

 2
71953 - PAD, REAR SEAT HEADREST
71953-32080

CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

CV20,SV2#,VZV20

 2
72693-20010

SV25..VL,XT;CV20,SV20,21,VZV20

 2
Common parts
67771-14030
90119-06172
90119-08160
90159-40088
91521-60814
91621-40618
91651-60818
91655-60616
91655-60820
91655-60825
91656-40630
93530-54010
